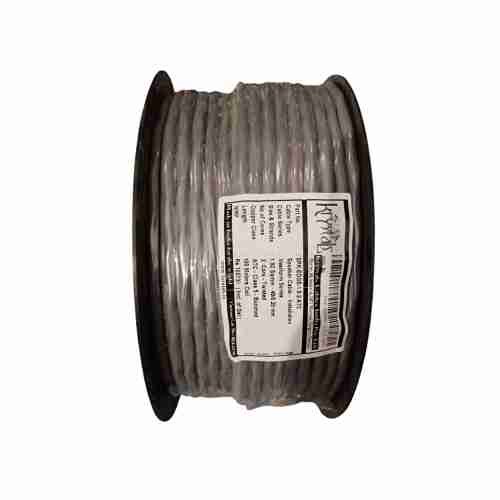

1.0 sq.mm X 2 Core Vasiform Installation Speaker Cable
Description
Features
-
1 sq.mm x 2 core Cable is our Installation range of Speaker Cables.
-
These Vasiform Series Installation Speaker Cables are specifically designed to deliver maximum performance without taking much space in conduit.
-
They offer true audiophile performance for accurate sound transmission with crystal clear response, yet posses a rugged design to cater to most demanding applications.
Advantages
-
Each conductor is dipped in a tinned bath to make the ATC conductors and is bunched tightly to give the best performance.
-
Twisted cores help in rejecting crosstalk.
-
Cable Ruggedness & toughness helps the cable to be pulled in long runs of conduits.
Applications
-
Installation of Speaker signals in Auditoriums, Schools, Shopping Malls etc.
Packaging
- 100 Meters Coil
- 300 Meters Coil
Click Here More Products Of Speakers
Specifications
Part No | SPK-EDGE-1.0-2-ATC |
---|---|
No of Conductors | 2 |
Conductor β No/ Size of Wire | 32/0.20mm |
Conductor β Cross Sectional Area | 1.0 Sqmm |
Insulation Type | PVC |
Insulation Dia. | 2.65 mm |
Core Colours | Blue and White |
Sheath Type | Vasiform PVC |
Overall OD | 7.1 mm |
Packaging | 100 mtr coils (Heat Shrink Transparent Film) |
Weight per coil | 5.700 Kg. |
Master Packing | 4 Coils in a Carton box |
Electrical and Mechanical Characteristics
DC resistance @20 Β°C β Conductor | 20.0 Ξ© / Km |
---|---|
Operating Voltage | 600 v |
Inductance β (1kHz at 20 Β°C) | 0.7 ΞΌH/m |
Capacitance β (1kHz at 20 Β°C) | 97pF/m |
Voltage Breakdown | Must withstand DC 500V / 15 sec |
Insulation resistance | 10000 M x m Min. at DC 125V, 20 Β°C |
Operating Temperature | -20β° C to 70β° C |
Dielectric Strength | 2 (KV/1 Min.) DC |
Flex Life | 4000 cycles |
Dielectric Constant | 4 |
