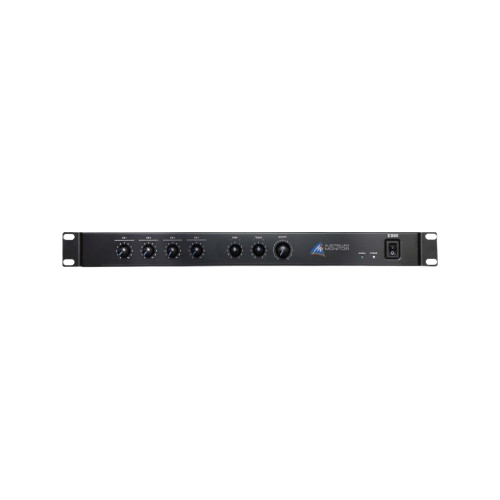

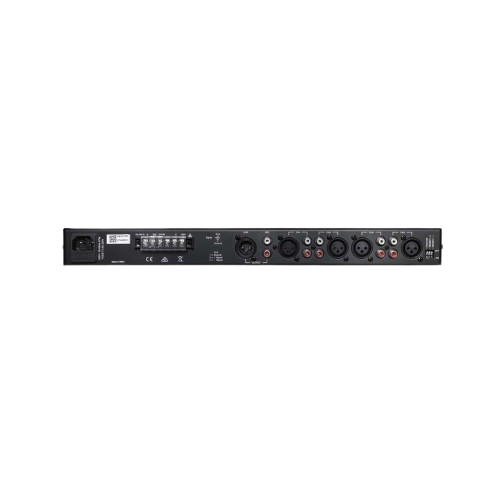

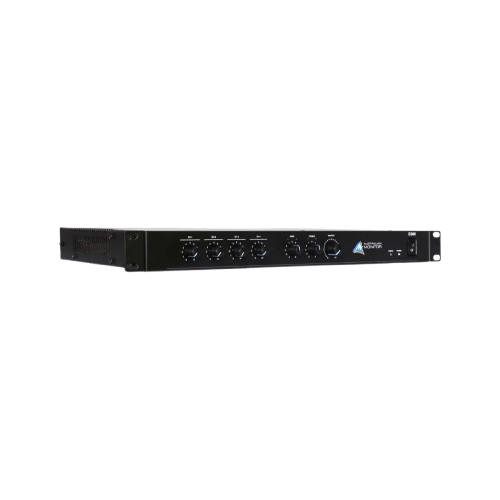

Sonodyne ES60 mixer amplifier
- 60W RMS power output for clear, distortion-free sound
- 4 Mic/Line inputs with dual RCA line inputs
- Selectable XLR inputs for flexible connectivity
- Supports 100V line and 4Ω speaker outputs
- Priority VOX muting for paging and announcements
- 12V phantom power for condenser microphones
- Wide 65Hz–19.5kHz frequency response
- Low THD (<0.2%) and high S/N ratio (>82dB)
- Line and record output options for external devices
- Compact 1RU rack-mount design
- Robust metal chassis for long-term durability
- Reliable 230V AC power operation
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The Sonodyne ES60 is a premium 60W mixer amplifier engineered for exceptional performance, durability, and flexibility in professional audio installations. Designed to deliver clear, consistent, and distortion-free sound, it is perfect for background music, paging, and announcement systems in a wide range of commercial environments across India — from corporate offices and retail spaces to educational institutions, hotels, restaurants, and houses of worship. Built to meet the demanding needs of system integrators and installers, the ES60 offers a powerful combination of performance, reliability, and user-friendly operation in a compact 1RU rack-mount design. It embodies legacy of superior Indian audio engineering, ensuring long-lasting performance and unmatched clarity.
- Can the Sonodyne ES60 power 100V line speakers?
A-1 Yes, it supports both 100V constant-voltage and 4Ω low-impedance speaker systems. - Is this mixer amplifier suitable for background music and announcements?
A-2 Absolutely. It’s ideal for paging systems, background music, and public address setups. - Does the ES60 provide phantom power for condenser microphones?
A-3 Yes, 12V DC phantom power is available for condenser mics. - Can it be rack-mounted in a professional audio setup?
A-4 Yes, the ES60 features a compact 1RU rack-mount chassis design for easy installation. - What kind of power does it require?
A-5 It operates on standard 230V AC, 50Hz power supply used across India.
Specifications
| Output Power | 60 W per channel |
| Input Channels | 4 Mic/Line (XLR / RCA) |
| Output Mode | 4 Ω or 100 V constant voltage |
| Frequency Response | 65 Hz – 19.5 kHz |
| THD + Noise | < 0.2% |
| Signal-to-Noise Ratio | > 82 dB |
| Input Sensitivity | Mic: ~1.2 mV, Line: ~160 mV |
| Phantom Power | 12 V DC (switchable) |
| Power Supply | 230 V AC, 50 Hz |
| Dimensions (W × D × H) | 484 × 285 × 44.5 mm |
| Weight | Approx. 5.0 kg |
| Mounting | 1RU rack mount |
| Special Features | Priority VOX muting, Line/Record outputs |
