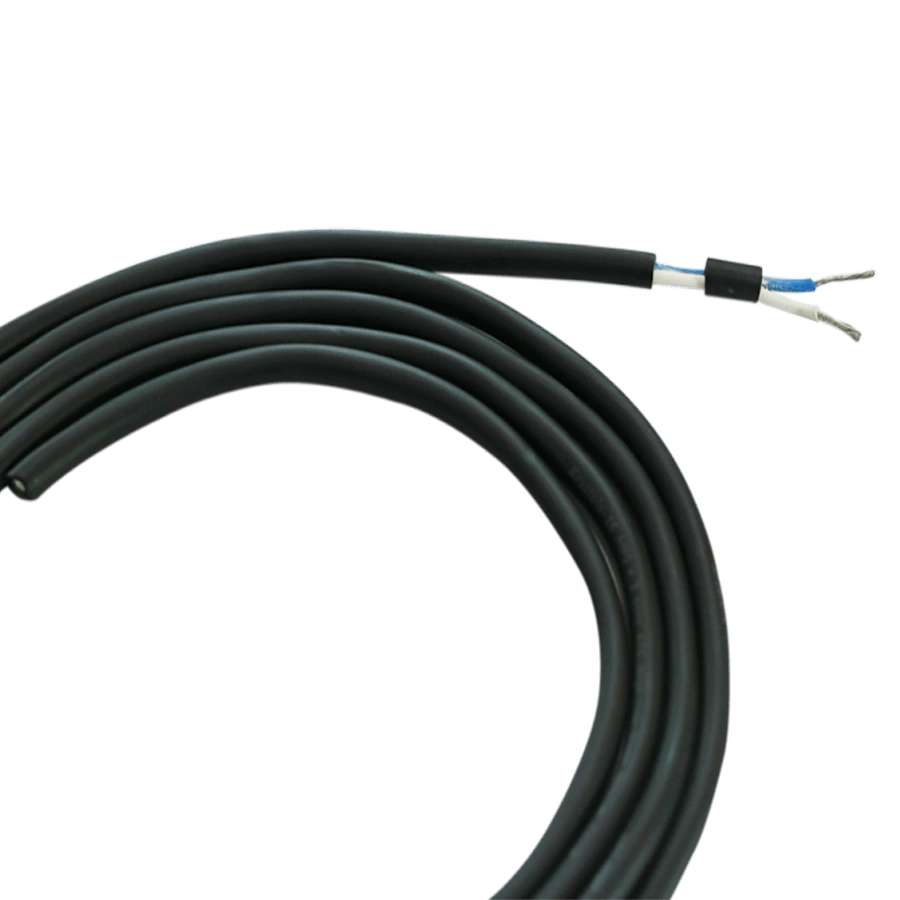

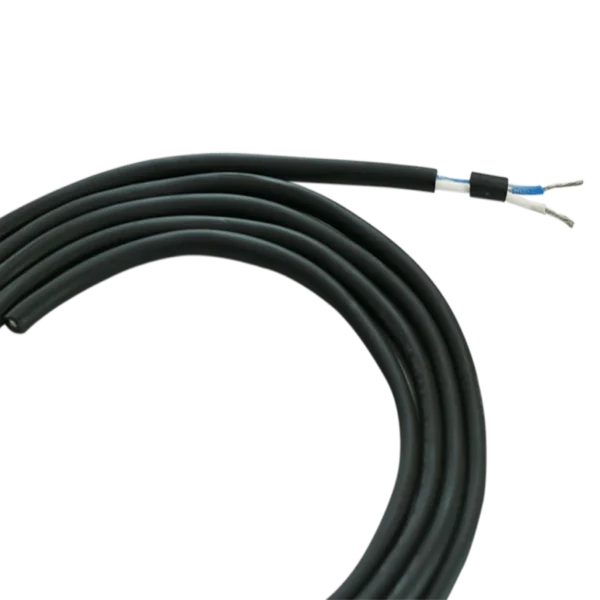

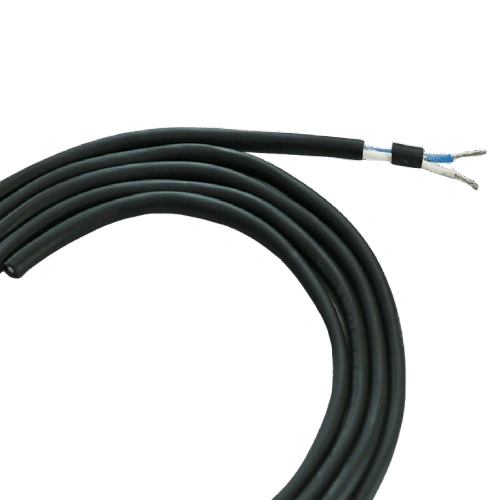

Krystal 1.0 sq.mm 2 core speaker cable

Name: Krystal 1.0 sq.mm 2 core speaker cable
SKU: 13873
Availability: InStock

Original price was: ₹7,764.Current price is: ₹6,377. Price excluding tax

14 products sold in last 15 hours

Selling fast! Over 17 people have in their cart

1.0 sq.mm high-conductivity ATC copper
32/0.20 mm stranded dual-core design
Vasiform PVC jacket for durable installation
Low resistance: 20 Ω/km for clean audio
Low capacitance & inductance for clear sound
Withstands 600V operating voltage
10,000 MΩ insulation resistance
7.1 mm OD – easy to install in conduits
Works from –20°C to +70°C
Ideal for PA, BGM, home & commercial audio

20 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

The Krystals 1.0 sq.mm × 2 Core Installation Speaker Cable is a premium-grade audio cable engineered for high-quality sound distribution in fixed installations. Designed with 32 strands of 0.20 mm ATC copper, this cable ensures excellent conductivity, low signal loss, and clear audio transmission over long distances. Its PVC outer jacket offers superior flexibility, long-lasting durability, and easy installation through conduits, ceilings, and walls—making it ideal for auditoriums, schools, commercial buildings, PA systems, home audio setups, and BGM installations across India. The cable features blue and white color-coded cores, high-quality PVC insulation, a robust 7.1 mm outer diameter, and availability in 100m and 300m coils, making it suitable for both small and large-scale projects.

Specifications

Part No.	SPK-EDGE-1.0-2-ATC
Number of Conductors	2
Conductor (No. / Size of Wire)	32 × 0.20 mm strands
Cross-Sectional Area	1.0 sq.mm
Insulation Type	PVC
Insulation Diameter (per core)	2.65 mm
Core Colours	Blue & White
Sheath Type	Vasiform PVC
Overall Outer Diameter (OD)	7.1 mm
Packaging	100-meter coil (Heat Shrink Transparent Film)
Weight per Coil	5.700 kg
Master Packing	4 coils per carton

Electrical and Mechanical Characteristics

DC Resistance @ 20°C – Conductor	20.0 Ω / Km
Operating Voltage	600 V
Inductance (1 kHz @ 20°C)	0.7 µH/m
Capacitance (1 kHz @ 20°C)	97 pF/m
Voltage Breakdown	Must withstand DC 500V for 15 seconds
Insulation Resistance	10,000 MΩ × m (Min.) @ DC 125V, 20°C
Operating Temperature Range	–20°C to +70°C
Dielectric Strength	2 kV / 1 minute (DC)
Dielectric Constant	4
Flex Life	4000 cycles
