JBL CSA 2300Z amplifier

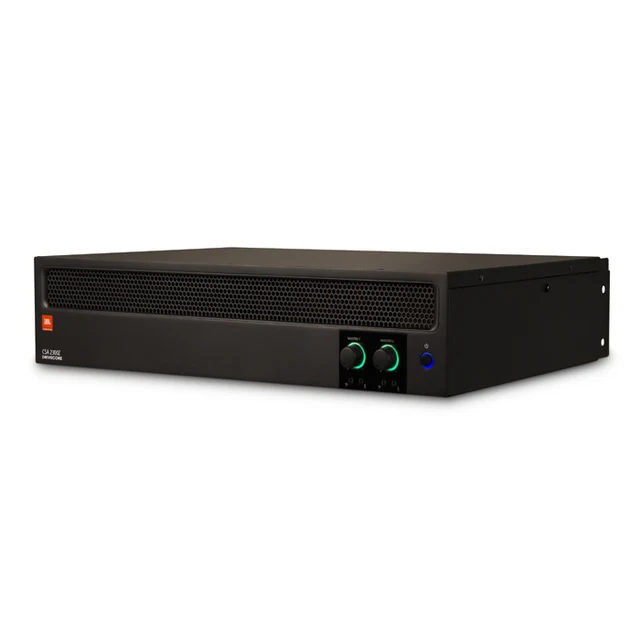

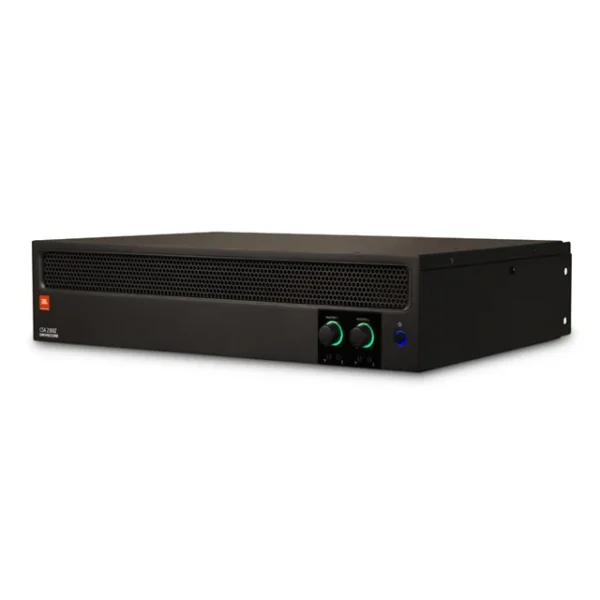

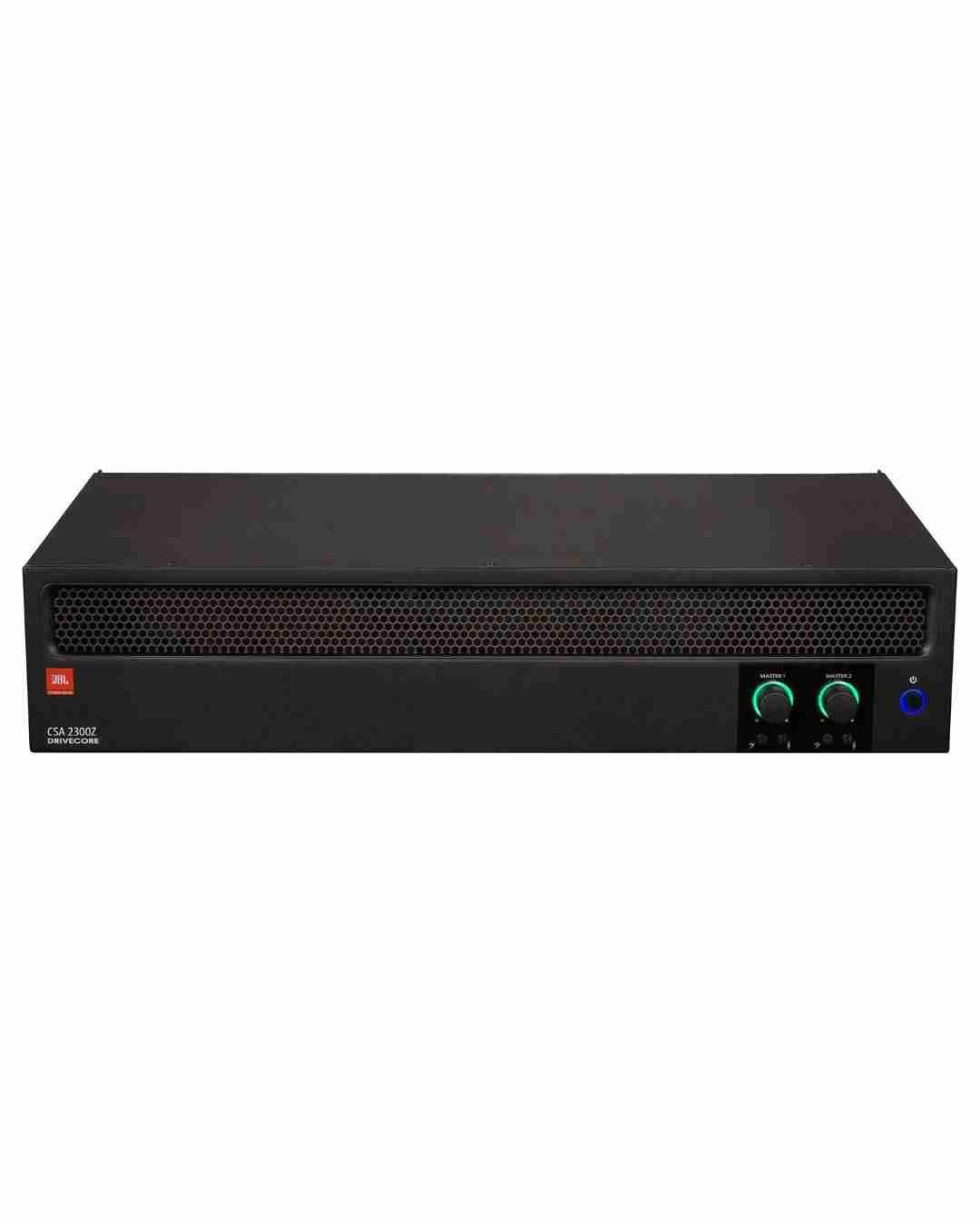

JBL CSA 2300Z Dual-Channel 300W Power Amplifier

The JBL Professional CSA 2300Z Commercial Power Amplifier is a professional two-channel audio amplifier designed to deliver reliable, high-quality sound for commercial PA systems, background music installations, and distributed audio applications. Powered by Crown DriveCore™ amplifier technology, the JBL CSA 2300Z delivers 300W per channel under specified operating conditions, making it suitable for a wide range of commercial sound and professional AV projects.

Designed for flexible installation, the JBL CSA 2300Z supports low-impedance speaker connections as well as 70V and 100V distributed audio systems. This flexibility makes it an ideal choice for compatible ceiling speakers, commercial loudspeakers, offices, hotels, restaurants, retail stores, shopping centres, educational institutions, conference rooms, and corporate environments.

The JBL CSA 2300Z commercial amplifier features balanced inputs and RCA inputs to support different audio source connections. Its frequency response of 20 Hz–20 kHz (±1 dB at 8 ohms), signal-to-noise ratio greater than 97 dB (A-weighted), and total harmonic distortion below 0.5% help deliver clean and consistent audio reproduction under the specified conditions. Adjustable bass and treble controls allow users to fine-tune the sound according to their application and listening environment.

With a compact 2U rack-mount design, the JBL CSA 2300Z fits conveniently into professional AV racks and commercial audio equipment installations. It also supports the compatible JBL CSR-V wall controller through an RJ45 connection, providing an additional control option for suitable installations

Frequently Asked Questions (FAQs)

1. What is the power output of the JBL CSA 2300Z amplifier?

The JBL CSA 2300Z is a two-channel amplifier rated at 300W per channel under the specified 4-ohm or 8-ohm test conditions. The actual power delivered depends on the load and operating configuration.

2. Does the JBL CSA 2300Z support 70V and 100V ceiling speakers?

Yes. The amplifier supports compatible 70V and 100V distributed audio systems. Confirm the selected output mode, total speaker load, and wiring configuration before installation.

3. Can I use the JBL CSA 2300Z with low-impedance speakers?

Yes. It supports compatible low-impedance speaker loads, including 4-ohm and 8-ohm configurations. Check the amplifier’s specified output mode and speaker wiring requirements to ensure compatibility.

4. Where can the JBL CSA 2300Z commercial amplifier be used?

It can be used in compatible commercial PA and background music systems for offices, hotels, restaurants, retail stores, shopping centres, schools, conference rooms, and other commercial spaces.

5. What is the price of the JBL CSA 2300Z amplifier in India?

The price may vary depending on availability, supplier quotations, and applicable commercial terms. Contact Saatvik Communication for the latest price, product availability, and Pan-India delivery options.

Specification
