JBL Control 23-1 Indoor Outdoor Speaker

JBL Control 23-1 Indoor/Outdoor Speaker

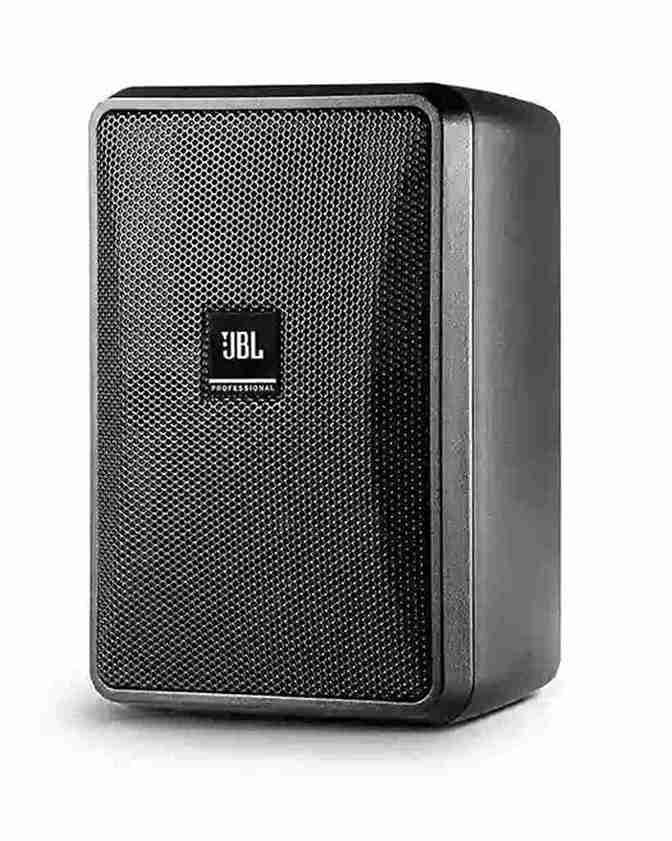

The JBL Professional Control 23-1 Ultra-Compact Indoor/Outdoor Speaker is designed to deliver clear, balanced sound for background music and foreground audio applications in commercial and professional environments. Featuring a compact 2-way speaker design, a 3-inch low-frequency driver and a 0.5-inch high-frequency driver, the JBL Control 23-1 provides detailed audio reproduction in a space-saving enclosure.

With a frequency range of 70 Hz–20 kHz, 86 dB sensitivity and 100° × 100° coverage, this JBL commercial speaker is suitable for distributing music and announcements across a wide listening area. Its compact size makes it an excellent choice for locations where dependable sound and discreet installation are important.

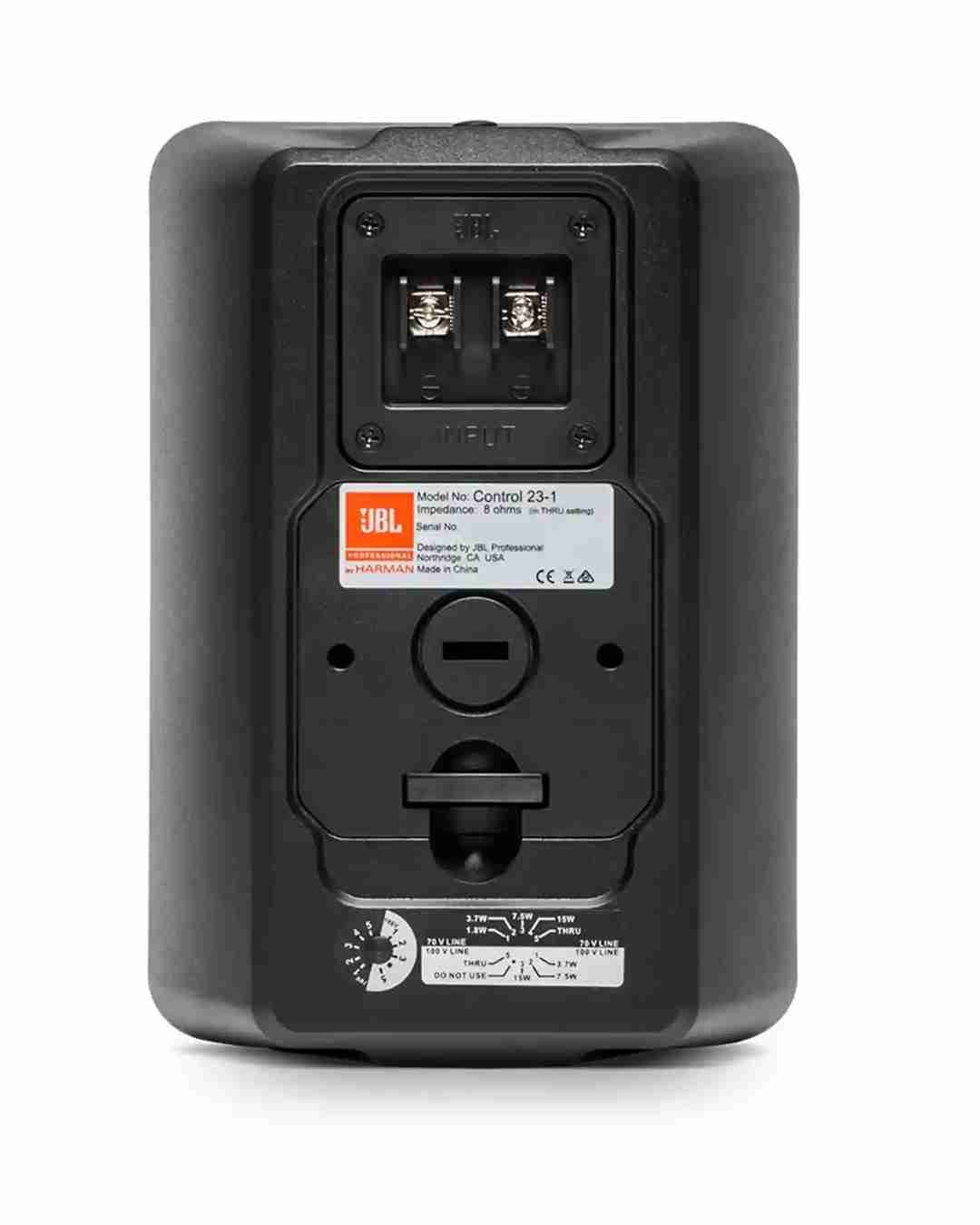

The JBL Control 23-1 indoor/outdoor speaker features an 8-ohm nominal impedance and supports 70V/100V distributed audio systems through its transformer taps, making it suitable for a variety of commercial sound installations. Its high-impact polystyrene enclosure and weather-resistant design support installation in appropriate indoor and outdoor environments when used according to JBL’s installation guidelines.

Frequently Asked Questions (FAQs)

1. What is the JBL Control 23-1 Speaker used for?

The JBL Control 23-1 is an ultra-compact indoor/outdoor commercial speaker designed for background music, foreground music and general audio playback in shops, restaurants, offices, hotels, educational facilities and other commercial environments.

2. What is the power rating of the JBL Control 23-1?

The speaker is rated at 100W continuous program power. Its continuous pink-noise power rating is 50W for 2 hours or 40W for 100 hours. Choose a compatible amplifier and follow JBL’s recommended operating specifications.

3. Can the JBL Control 23-1 be used outdoors?

Yes, it is designed for appropriate indoor and outdoor applications. Its standard weather protection is rated IP44; higher IP55 protection requires the specified optional weather accessories. Always follow the manufacturer’s installation guidelines for exposure to rain, moisture and environmental conditions.

4. Does the JBL Control 23-1 support 70V and 100V systems?

Yes. With its appropriate transformer taps, the speaker can be integrated into compatible 70V and 100V distributed audio systems. It also supports conventional 8-ohm operation. Ensure that the amplifier and speaker configuration are compatible before installation.

5. Where can I buy the JBL Control 23-1 Speaker in India?

You can enquire about or purchase the JBL Control 23-1 through Saatvik Communication. Contact our team for current pricing, availability, suitable amplifier recommendations and delivery options across India.

Specification
