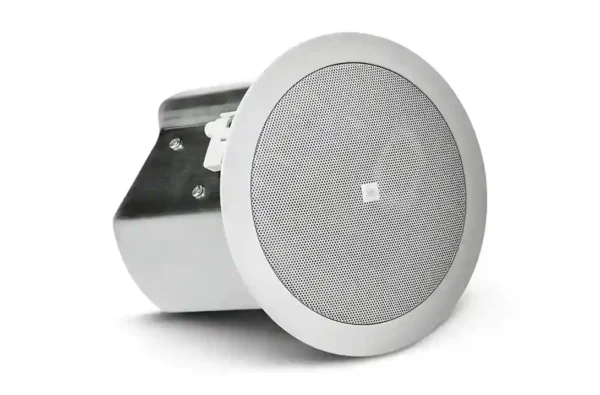

JBL Control 14C/T ceiling speaker

18 products sold in last 7 hours

Selling fast! Over 17 people have in their cart

Two-Way Coaxial Ceiling Speaker for clear vocals and balanced background music
4″ High-Output Woofer + Soft-Dome Tweeter for crisp highs and smooth mids
Wide 120° Coverage Angle ensures even sound distribution
70V / 100V Line & 8-Ohm Compatible for flexible PA and BGM systems
Multiple Power Taps (25W / 12.5W / 6.3W) for easy system setup
Integrated Steel Backcan (Plenum Rated) safe for air-handling spaces
Fire-Rated ABS Baffle (UL94-V0 & V-5VB) for commercial safety compliance
Complete Installation Kit Included for quick and secure ceiling mounting

27 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

The JBL Control 14C/T Ceiling Speaker is a high-quality two-way passive ceiling loudspeaker designed for commercial audio applications that require clear sound, wide coverage, and long-term reliability. Equipped with a 4-inch high-output woofer and a soft-dome tweeter, it delivers balanced background music and crystal-clear speech for everyday use. This ceiling speaker supports 70V / 100V line systems as well as 8-ohm low-impedance operation, making it ideal for retail stores, offices, hotels, restaurants, hospitals, educational institutions, conference rooms, malls, and corporate spaces across India. With a 120-degree wide dispersion pattern, the JBL Control 14C/T ensures even sound distribution, reducing the need for multiple speakers while maintaining consistent audio quality throughout the room.

Specifications

Speaker Type	Two-Way Passive Ceiling Loudspeaker
Frequency Range (-10 dB)	74 Hz – 20 kHz
Frequency Response (±3 dB)	100 Hz – 20 kHz
Sensitivity	87 dB (1 kHz – 16 kHz)
Coverage Angle	120° Conical
Directivity Factor (Q)	7.6
Directivity Index (DI)	8.1 dB
Maximum SPL (1 m)	101 dB (Low-Z), 108 dB Peak
Maximum SPL (70V/100V)	101 dB (Top Tap)
Impedance	8 Ohms (Direct / Bypass Mode)

Power & Transformer

Power Rating (Low-Z)	60 W Continuous Program Power
Pink Noise Rating	30 W Continuous (120 W Peak), 100 hrs
Transformer Taps	25 W, 12.5 W, 6.3 W @ 70V / 100V
Additional Tap	3.2 W @ 70V only

Drivers & Crossover

LF Driver	100 mm (4.0″) Woofer
HF Driver	19 mm (0.75″) Tweeter
Crossover Network	12 dB/oct (2nd Order) LF & HF

Construction & Safety

Backcan	Zinc-plated formed steel (integrated)
Baffle / Rim	ABS with UL94-V0 & UL94-5VB fire rating
Plenum Rated	Yes (Suitable for air-handling spaces)
Safety Certifications	UL1480, UL2043, NFPA90, NFPA70, CE, ROHS
Seismic Safety	One-point safety attachment

Dimensions & Weight

Overall Dimensions	196 mm Ø × 181 mm Depth (7.7″ × 7.1″)
Ceiling Cutout Size	170 mm (6.7″) Diameter
Ceiling Thickness	Up to 35 mm (standard)
Extended Thickness	Up to 55 mm with optional dog-ears
Net Weight	2.2 kg (4.8 lbs)
Shipping Weight	8.2 kg (Pair in master carton)
