JBL AC118S subwoofer

5 products sold in last 12 hours

Selling fast! Over 4 people have in their cart

Powerful 18 Woofer – Deep, punchy bass for clubs, concerts, and large events.
Frequency Range 32 Hz – 250 Hz – Covers the full low-frequency spectrum for rich sound.
High Output SPL – 122 dB continuous, 128 dB peak for clear, loud performance.
Reliable Power Handling – 600 W AES (2400 W peak) ensures long-term performance.
Professional Connectivity – Dual Neutrik NL4MP + covered barrier terminals.
Durable Construction – 18 mm plywood cabinet, powder-coated grille, and foam backing.
Suspension Ready – 12 × M10 threaded points for rigging or secure mounting.
Versatile Finish Options – Textured black standard; white available on request.
Low Impedance Design – 8-ohm nominal impedance for amplifier compatibility.

24 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

Experience ground-shaking low frequencies and professional-grade sound reinforcement with, an 18-inch passive subwoofer engineered for demanding live events, concerts, DJ performances, clubs, auditoriums, theatre, and large-scale PA systems. This subwoofer combines JBL’s legendary sound engineering with rugged construction to deliver high-output, precise, and reliable bass, making it an essential addition to any professional audio setup. The AC118S is designed to handle intense audio loads, offering deep, tight low-frequency reproduction from 32 Hz up to 250 Hz. Its 95 dB system sensitivity and maximum SPL of 122 dB (128 dB peak) ensure that your audience feels the music, whether it’s for a stadium, a live concert, or a corporate event.

Is the JBL AC118S suitable for outdoor events?

A-1 Yes, its robust construction allows it to be used in semi-outdoor and covered outdoor installations.
Can this subwoofer be used with other JBL PA speakers?

A-2 Absolutely. It is compatible with JBL tops and line arrays for full-range sound reinforcement.
What amplifier power is recommended for this subwoofer?

A-3 Use an amplifier delivering 500–800 W RMS at 8 Ω for optimal performance.
Does it support suspension or mounting brackets?

A-4 Yes, it has 12 M10 threaded suspension points for rigging, making it easy to hang safely in professional venues.
What applications is it best for?

A-5 Ideal for live events, DJs, concerts, auditoriums, nightclubs, theater, and large-scale PA systems.

Specifications

Frequency Range (-10 dB)	32 Hz – 250 Hz
Frequency Response (±3 dB)	40 Hz – 250 Hz
System Sensitivity (1 W @ 1 m)	95 dB
Nominal Impedance	8 Ω
Maximum SPL (1 m)	122 dB (128 dB peak)
System Power Rating	600 W AES / 2400 W peak (2 hrs) AES rated450 W / 900 W / 1800 W (Continuous / Program / Peak) IEC rated

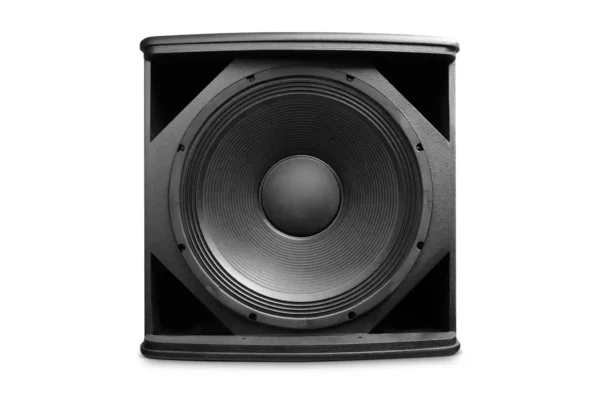

LF Driver	1 × 18″ woofer (P/N: 5021800), 457.2 mm, with 75 mm (3″) voice coil
Nominal LF Driver Impedance	8 Ω
Input Connector	Dual Neutrik NL4MP connectors plus covered barrier strip terminals
Enclosure	18 mm multi-ply hardwood plywood
Grille	Powder-coated 1.5 mm perforated steel with acoustically transparent black foam backing
Finish	Textured black paint finish; White (-WH) available upon request. Not available with WRC & WRX finishes
Suspension / Mounting	12 × M10 threaded suspension points
Dimensions (H × W × D)	548 × 561 × 720 mm (21.5 × 22.0 × 28.3 in)
Net Weight (each)	32.3 kg (71.2 lbs)
