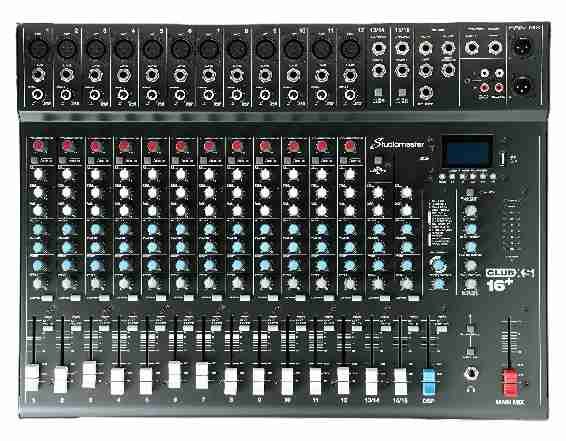

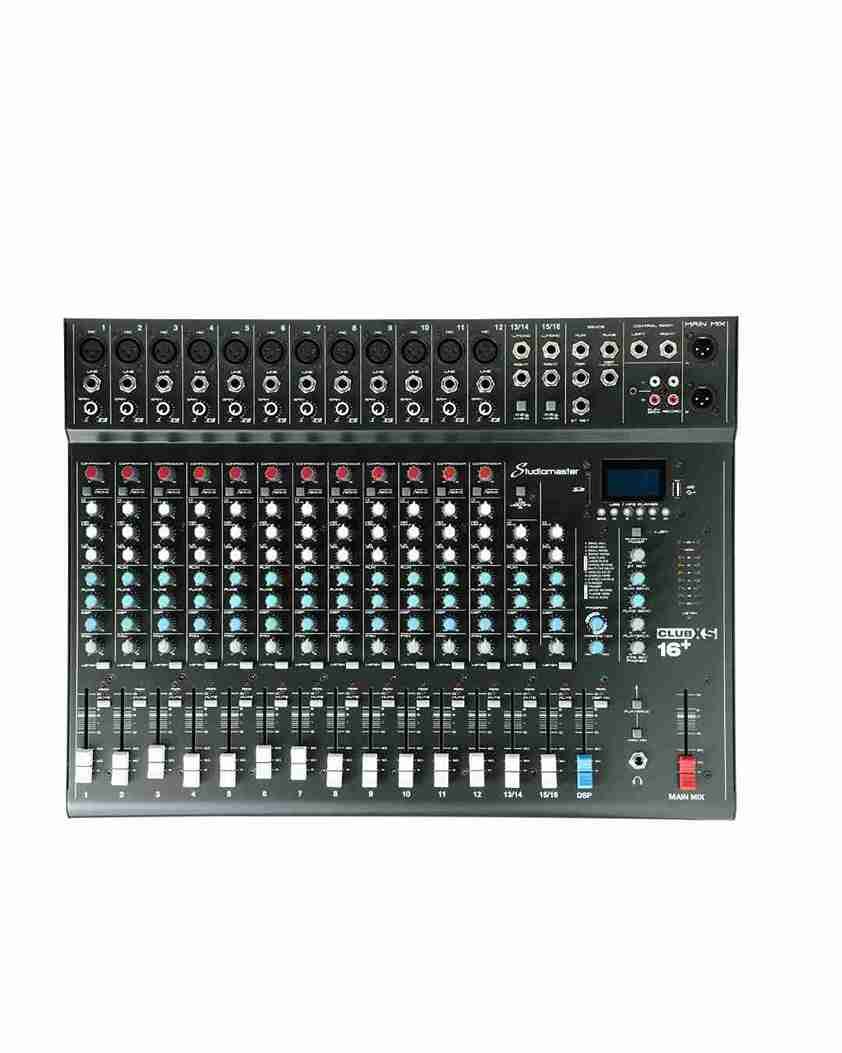

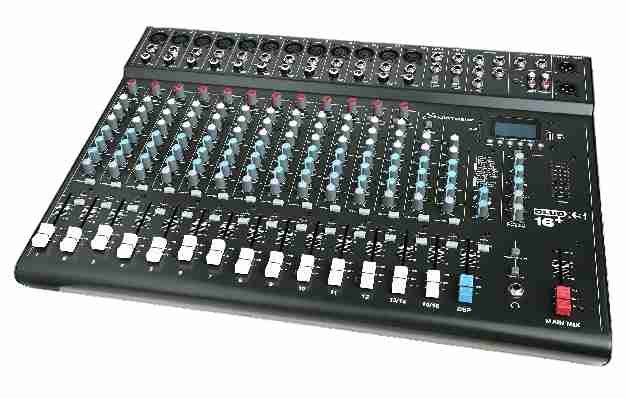

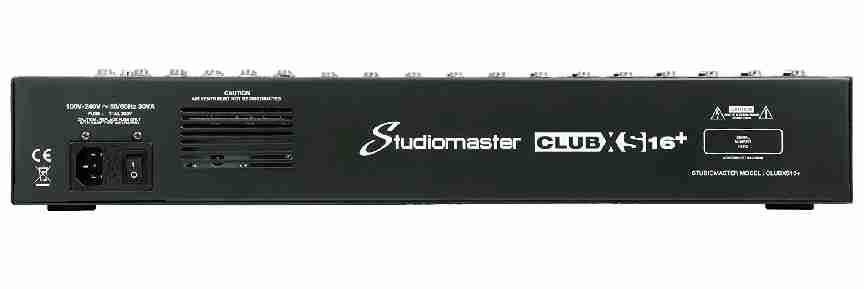

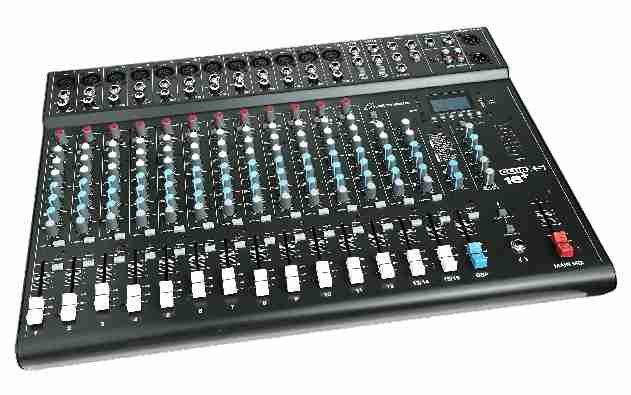

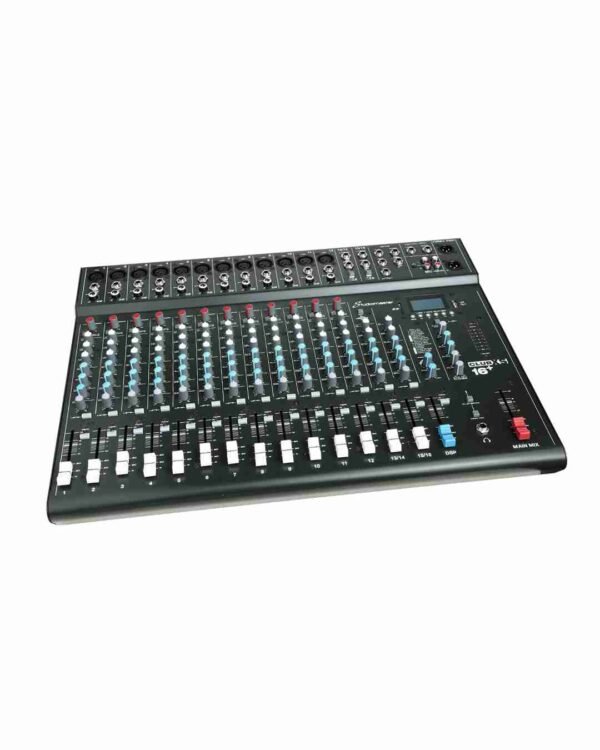

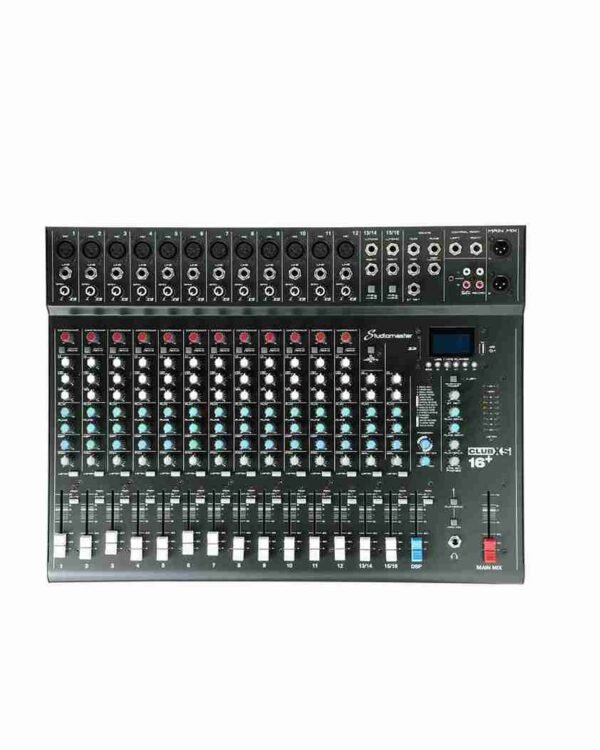

Studiomaster Club XS16+mixing console
- 16-channel professional analogue mixing console
- 12 mic inputs + 2 stereo input channels
- Low-noise mic preamps with EIN -100 dB
- Wide gain range for mic and line inputs
- 3-band channel EQ with 80 Hz low-cut filter
- Built-in DSP effects for vocals and instruments
- USB/SD & MP3 playback support
- USB/SD audio recording function
- Bluetooth audio streaming capability
- Balanced & unbalanced master outputs
- Universal 100–240 V power supply
- Compact, portable design – weighs only 7.3 kg
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The Studiomaster Club XS16+ is a professional 16-channel analogue mixing console built for live sound, studio recording, events, churches, bands, DJs, karaoke, and home studios across India. Equipped with 12 high-quality mic inputs, Bluetooth audio streaming, USB/SD playback & recording, and 16 built-in DSP effects, this mixer delivers clear, powerful, and reliable sound in every application .Its low-noise preamps, wide gain range, and 3-band channel EQ with low-cut filter allow precise control over vocals and instruments, ensuring clean and balanced audio. The balanced and unbalanced outputs make it easy to connect to PA systems, amplifiers, and powered speakers, while the compact and sturdy design makes it ideal for both fixed installations and portable setups.
1. Is the Studiomaster Club XS16+ suitable for live events?
A-1 Yes, it is ideal for live shows, bands, DJs, churches, and events with multiple microphones.
2. Can I record audio directly from this mixer?
A-2 Yes, you can record directly to a USB drive or SD card without any external device.
3. Does this mixer support Bluetooth audio playback?
A-3 Yes, Bluetooth is built-in for wireless music playback from smartphones or tablets.
4. Is it good for home studios and podcasting?
A-4 Absolutely. With clean preamps, EQ, effects, and recording options, it’s perfect for home studios and podcasts.
5. Can I use condenser microphones with this mixer?
A-5Yes, it supports professional microphones and provides high-quality mic preamps.
Specifications
| Total Inputs | 16 |
| Mic Input Channels | 12 |
| Stereo Input Channels | 2 |
| Gain Range | Mic: 6 dB – +50 dBLine: +10 dB – -34 dB |
| EIN (Equivalent Input Noise) | -100 dB |
| Frequency Response (Mic Channel) | 10 Hz – 20 kHz (+1/-3 dB) |
| THD (Mic Channel) | ≤ 0.1 % |
| Signal-to-Noise Ratio | 80 dB |
| Output Levels | MAX +26 dB (Balanced)MAX +20 dB (Unbalanced) |
| Channel EQ | Hi: 12 kHzMid: 2.5 kHzLo: 45 HzLow Cut: 80 Hz |
| MP3 / USB / SD Audio Playback | Yes |
| USB / SD Audio Recording | Yes |
| DSP Effects | Yes |
| Power Requirements | 100 V – 240 V ~ |
| Dimensions (W × H × D) | 525 × 80 × 390 mm |
| Weight | 7.3 kg |
