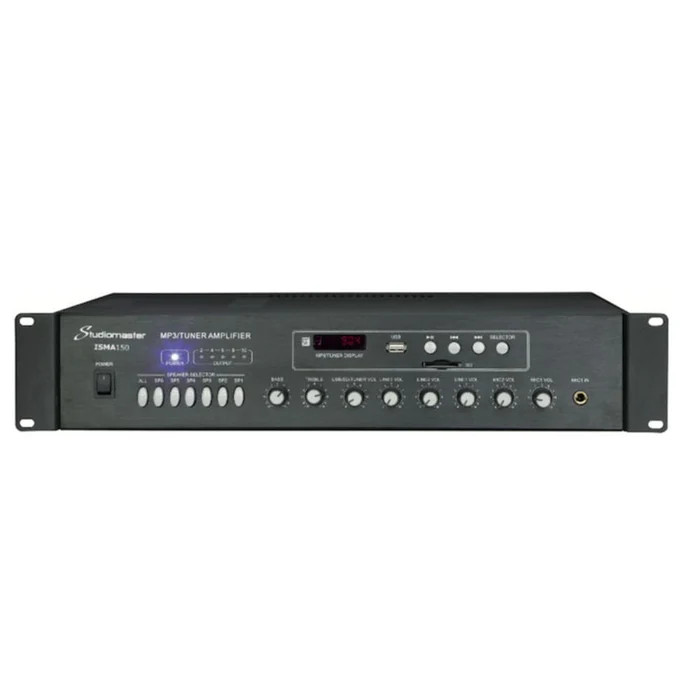

Studiomaster ISMA150 mixer amplifier

Name: Studiomaster ISMA150 mixer amplifier
Brand: Studiomaster
SKU: 14370
Availability: InStock

Original price was: ₹15,321.Current price is: ₹10,611. Price excluding tax

14 products sold in last 6 hours

Selling fast! Over 3 people have in their cart

150W high-power 100V line mixer amplifier
• 6-zone speaker output for multi-area control
• Built-in mic & line mixer for announcements and music
• USB / SD MP3 playback for background music
• Clear voice output for paging applications
• Bass & treble tone control for sound tuning
• Fan-cooled with overload & short-circuit protection

25 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

The Studiomaster ISMA150 is a powerful and reliable 150W 100V line mixer amplifier designed for public address systems, background music, and paging applications in commercial and institutional environments. It is an ideal solution for schools, offices, factories, hospitals, hotels, shopping complexes, religious places, and large buildings across India. This PA mixer amplifier supports long-distance speaker connections through its 100V line output, allowing multiple ceiling or wall-mounted speakers to be connected without signal loss. With 6 selectable speaker zones, users can easily control sound distribution in different areas from a single central unit.

Is the Studiomaster ISMA150 suitable for 100V line speakers?

A-1 Yes, it is a dedicated 100V line mixer amplifier, perfect for multiple ceiling or wall speakers.

Can I connect multiple speaker zones?

A-2 Yes, it supports 6 selectable speaker zones with individual control.

Does this amplifier support microphones directly?

A-3 Yes, it has 2 mic inputs for announcements and paging.

Can I play music without an external player?

A-4 Yes, it supports USB/SD card MP3 playback and FM radio (model dependent).

Is this suitable for commercial installations?

A-5 Absolutely. It is designed for commercial and institutional PA systems.

Specifications

Model	Studiomaster ISMA150
Type	150W 100V Line Mixer Amplifier
Rated Output Power	150W
Output Voltage	100V Line
Speaker Outputs	6 Selectable Zone Outputs
Mic Inputs	2 Microphone Inputs
Line Inputs	2–3 Line Inputs (model dependent)
Auxiliary Output Level	≥ 900 mV
Mic Sensitivity	≤ 3.5 mV
Line Sensitivity	≤ 350 mV
Frequency Response	80 Hz – 16 kHz (±3 dB)
THD (Distortion)	≤ 1% (1 kHz, normal operation)
Bass Adjustment Range	±12 dB @ 100 Hz
Treble Adjustment Range	±12 dB @ 10 kHz
Signal-to-Noise Ratio	≥ 80 dB
Playback Functions	USB / SD MP3 playback, FM tuner (variant)
Controls	Independent Zone Volume, 2-Band EQ
Protection	Fuse, Short-Circuit & Overload Protection
Cooling	Fan Cooled
Dimensions (W × D × H)	Approx. 485 × 330 × 88 mm
Power Supply	AC 220V / 50 Hz
Power Consumption	Approx. 220 W
