PeopleLink PL-CSC conference system controller

4 products sold in last 1 hour

Selling fast! Over 20 people have in their cart

High-quality digital conference system controller with crystal clear audio performance
Supports up to 5200 conference microphone units for large meeting setups
1 / 2 / 4 / 6 microphones active simultaneously for smooth discussion control
Built-in 16-band EQ, AGC, echo cancellation, and feedback suppression
USB recording support for storing meeting audio
Multiple audio inputs and outputs (XLR / RCA / Phoenix)
RJ45 network ports for chairman and delegate microphone units
Camera auto-tracking support (PELCO / VISCA protocol)
LCD display for easy system control and monitoring
19-inch rack mount design for professional AV installation

30 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

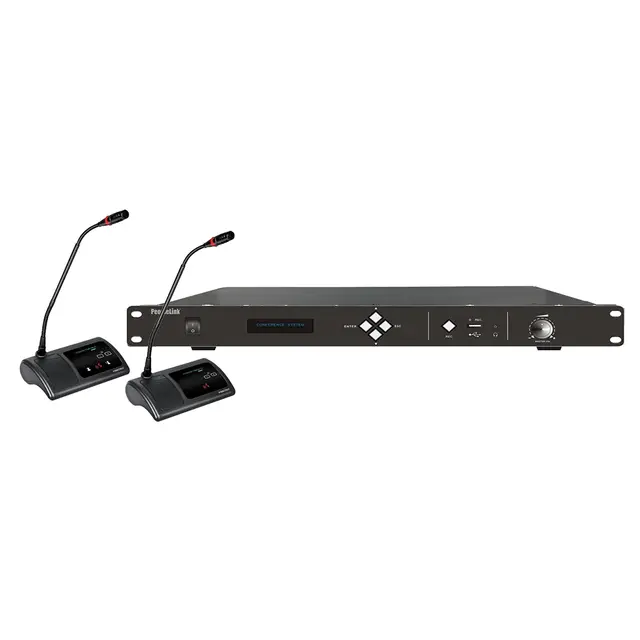

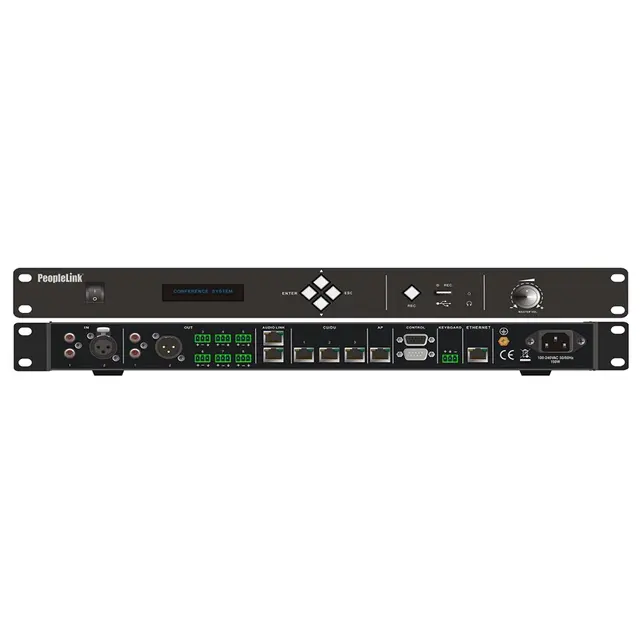

PL-CSC Conference System Controller – Professional Wired Digital Conference Control Unit

The PL-CSC Conference System Controller is a powerful and reliable digital conference control system designed for modern boardrooms, meeting halls, government offices, and corporate conference rooms. It acts as the central hub of a wired conference microphone system, managing chairman and delegate units while delivering crystal-clear audio and stable communication during meetings. Built with advanced digital audio processing technology, the PL-CSC controller ensures high-quality sound transmission, noise suppression, and automatic microphone management. With support for up to 5200 discussion units, it is ideal for small meeting rooms to large conference halls. Its rack-mount design, multiple audio inputs/outputs, USB recording capability, and camera auto-tracking support make it a perfect choice for organizations looking for a professional conference system controller in India.

Frequently Asked Questions

What is the PL-CSC Conference System Controller used for?

A-1 It is used to control and manage conference microphone systems in meeting rooms, boardrooms, government offices, and conference halls.

How many microphones can be connected to the system?

A-2 The controller can support up to 5200 discussion units with external power units.

Can meetings be recorded with this controller?

A-3 Yes, the system includes a USB recording feature, allowing you to record meetings directly.

Does the controller support video conferencing cameras?

A-4 Yes, it supports automatic camera tracking using PELCO and VISCA protocols.

Is this suitable for large conference halls?

A-5 Yes, the PL-CSC system is designed for both small meeting rooms and large conference halls.

Specifications

Product Name	PL-CSC Conference System Controller
System Type	Wired Digital Conference Control Unit
Power Supply	100–240V AC
Static Power Consumption	12 W
Maximum Power Consumption	150 W
Mounting Type	19-inch Rack Mount (1U)
Dimensions	483 × 260 × 43.6 mm
Weight	Approx. 3 kg
Frequency Response	20 Hz – 20 kHz
Audio Sampling Rate	48 kHz
Signal-to-Noise Ratio	>96 dB
Total Harmonic Distortion	<0.05%
Channel Crosstalk	>85 dB
Dynamic Range	>94 dB
Maximum System Capacity	Up to 5200 Discussion Units
Compatible Units	Chairman & Delegate Microphone Units
Simultaneous Active Microphones	1 / 2 / 4 / 6 (Configurable)
Audio Inputs	2 × Audio Inputs (XLR / RCA)
Audio Outputs	Up to 8 Outputs (XLR / RCA / Phoenix)
USB Port	Yes – For Meeting Recording
Headphone Jack	3.5 mm Monitoring Port
Network Ports	RJ45 Ethernet Ports
Control Interfaces	RS232 / RS485
Camera Control	DB9 Interface (PELCO / VISCA Protocol)
Audio Processing	16-Band EQ, AGC, AFC, Auto-Mix
Additional Features	Echo Cancellation, Noise Gate, USB Recording
Conference Modes	Open Mode, Voice Mode, Override Mode, Apply Mode
Display	LCD Control Display
