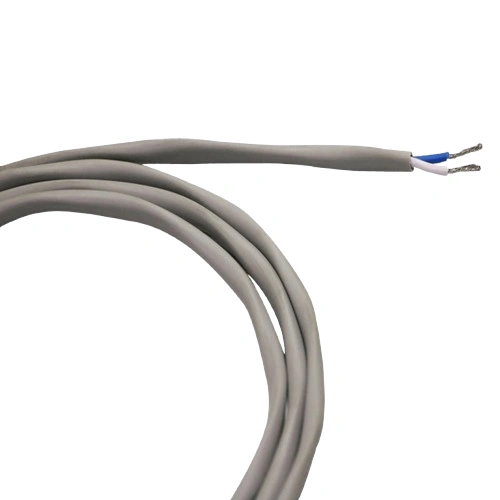

Introducing the Krystal 1.5 sq.mm × 2 Core Vasiform Installation Speaker Cable, engineered for high-performance audio transmission in professional and residential installations. Designed with precision, this speaker cable features 48/0.20 mm stranded copper conductors, durable PVC insulation, and a strong for long-term reliability. With excellent electrical characteristics like low DC resistance, high insulation resistance, and low inductance, this cable ensures crystal-clear sound delivery over long distances without signal loss. Ideal for home theatres, auditoriums, commercial PA systems, background music installations, and studio setups, this cable offers premium quality at an affordable price — trusted across India for consistent performance. Whether you are upgrading your sound system or planning a new installation, this guarantees superior audio clarity, durability, and safety, making it a perfect choice for all your professional audio wiring needs.
Specifications
| Part No. |
SPK-EDGE-1.5-2-ATC |
| Number of Conductors |
2 |
| Conductor (No. / Size) |
48 / 0.20 mm |
| Cross-Sectional Area |
1.5 sq.mm |
| Insulation Type |
PVC |
| Insulation Diameter |
2.90 mm |
| Core Colours |
Blue & White |
| Sheath Type |
Vasiform PVC |
| Overall Outer Diameter (OD) |
7.60 mm |
| Packaging |
100-meter coil (Heat-shrink transparent film) |
| Weight per Coil |
7.250 kg |
| Master Packing |
3 coils per carton box |
Electrical and Mechanical Characteristics
| DC Resistance @ 20°C (Conductor) |
13.7 Ω / Km |
| Operating Voltage |
600 V |
| Inductance (1 kHz @ 20°C) |
0.7 µH/m |
| Capacitance (1 kHz @ 20°C) |
97 pF/m |
| Voltage Breakdown Test |
Must withstand DC 500 V for 15 seconds |
| Insulation Resistance |
10,000 MΩ·m (Min.) at DC 125 V, 20°C |
| Operating Temperature Range |
–20°C to +70°C |
| Dielectric Strength |
2 kV DC for 1 minute |
| Flex Life |
4000 cycles |
| Dielectric Constant |
4 |
