JBL CSS-H30 Horn Speaker
15 products sold in last 19 hours
Selling fast! 1 person has in their cart
- 30W high-output horn speaker for clear voice announcements
- Designed for paging, alerts, and public address systems
- Focused 50° × 70° coverage for long-distance sound projection
- Supports 70V / 100V line systems and 8-ohm operation
- IP65 weatherproof for reliable outdoor and industrial use
- Built-in high-pass filter for speaker protection
- Durable ABS horn with corrosion-resistant stainless-steel bracket
29 people are viewing this right now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

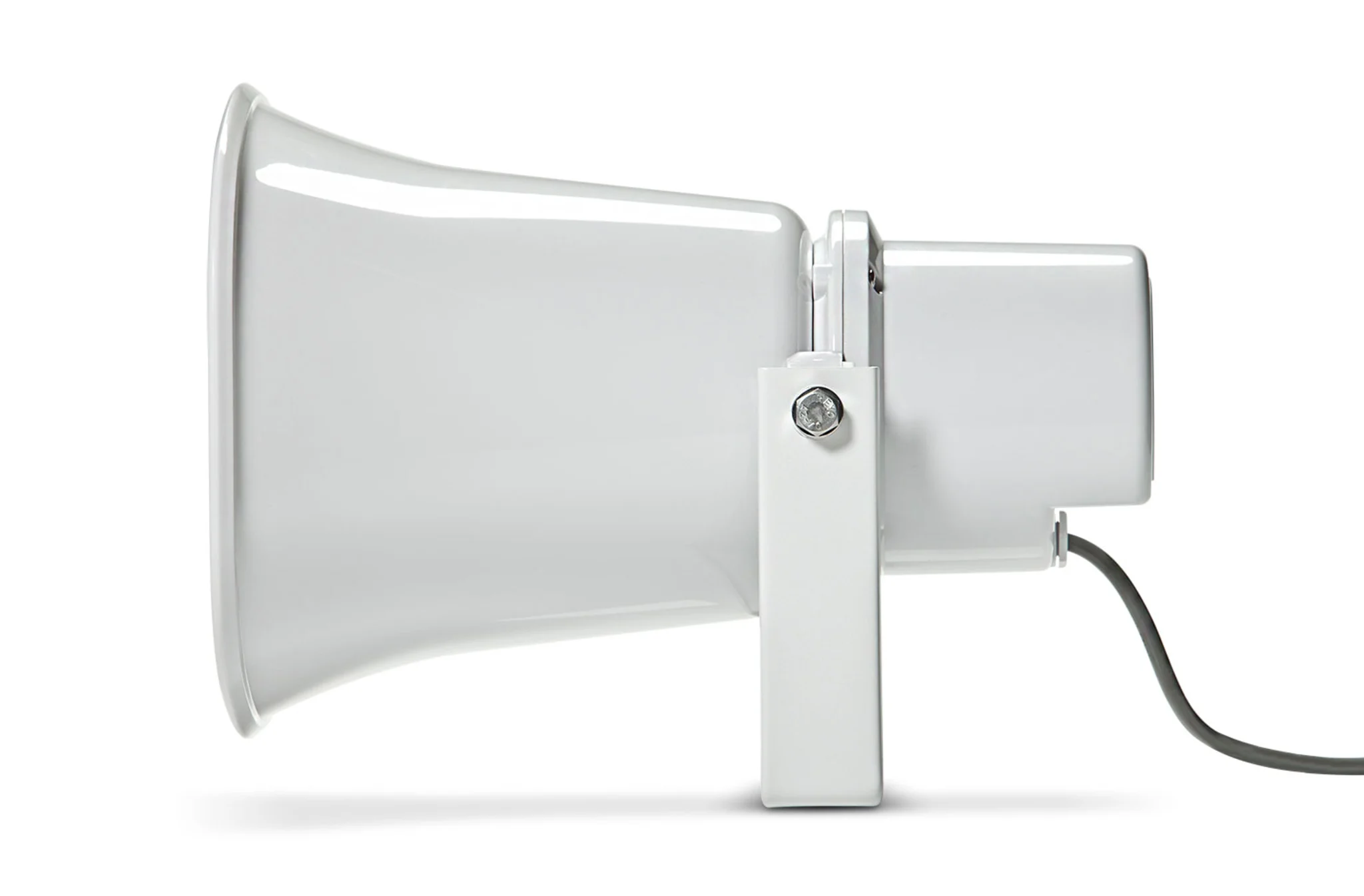

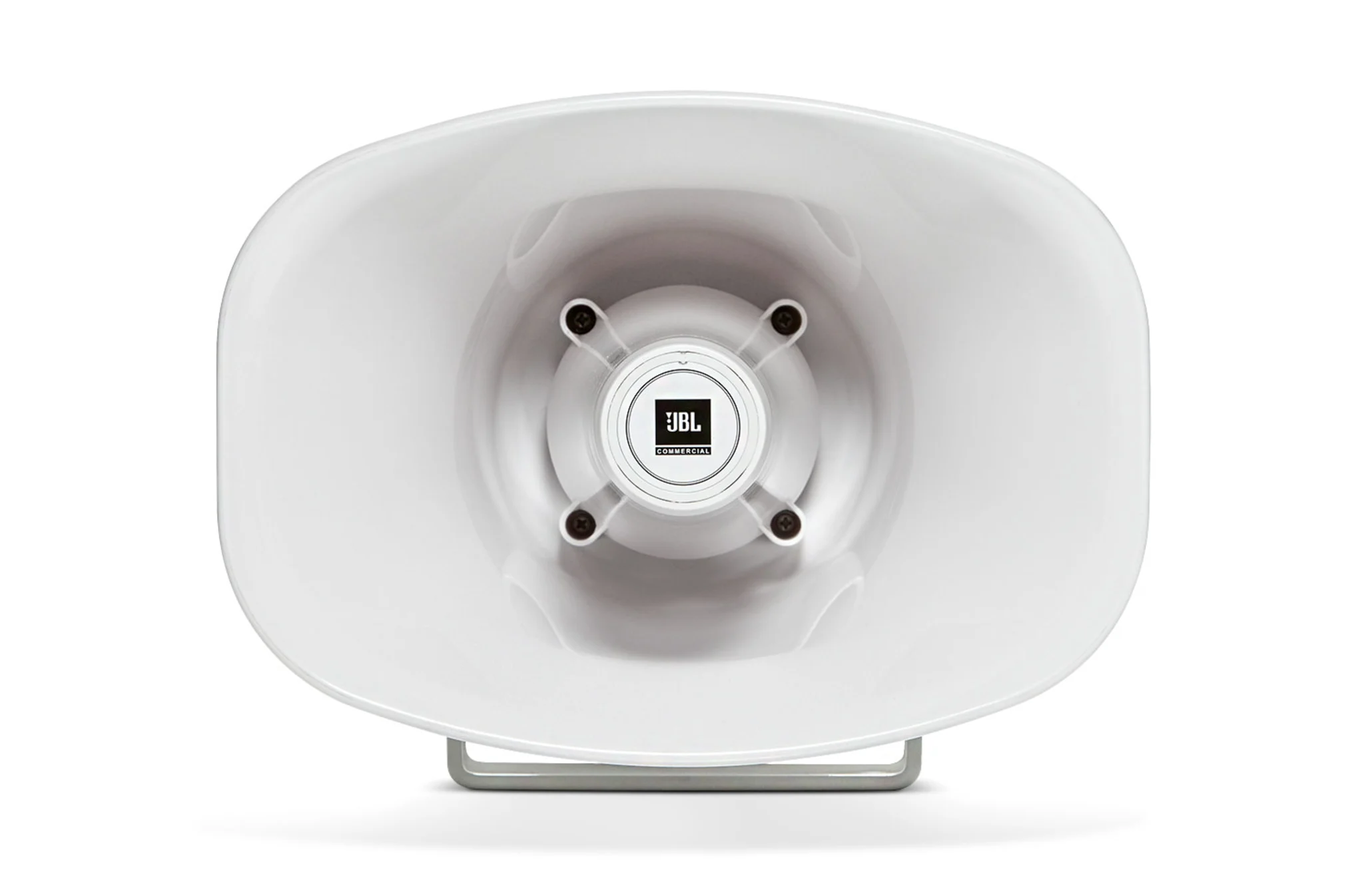

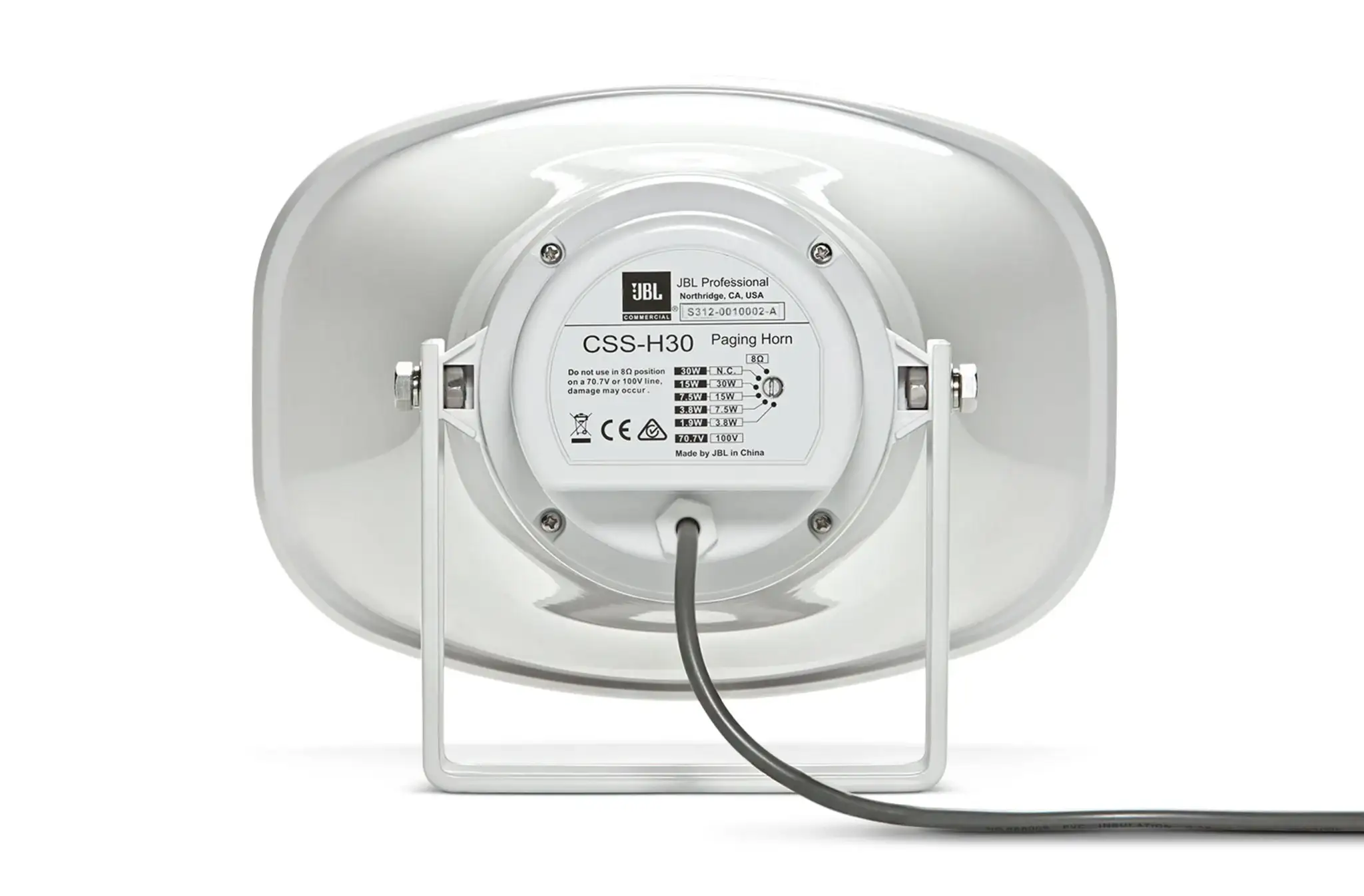

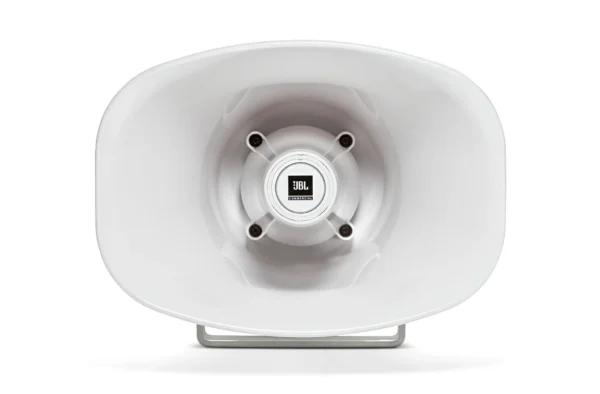

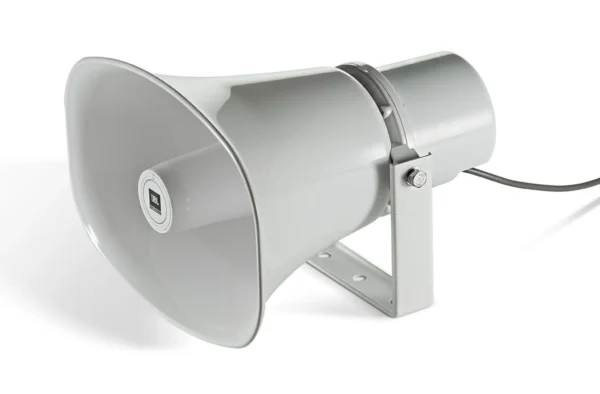

The JBL CSS-H30 is a professional 30 Watt paging horn speaker, designed for clear voice announcements and public address systems in commercial and industrial settings. Whether you need to broadcast in factories, warehouses, campuses, or public areas, this horn speaker delivers loud, focused, and intelligible sound that can be heard clearly across large spaces. Built for reliability and durability, the speaker features a phenolic diaphragm driver and ABS horn construction, with a stainless-steel powder-coated U-bracket for secure wall or pole mounting. Its IP65 weatherproof rating ensures excellent performance in outdoor and harsh environments, including exposure to dust, water, and industrial conditions.
-
Is the JBL CSS-H30 suitable for outdoor use?
A-1 Yes. It is IP65-rated, making it perfect for outdoor areas, factories, and campuses.
-
Can it be used with 70V or 100V PA amplifiers?
A-2 Absolutely. The speaker supports both 70V and 100V distributed audio systems.
-
Is this speaker suitable for music playback?
A-3 It is optimized for voice announcements and paging. Not intended for full-range music playback.
-
Does it come with mounting hardware?
A-4 Yes. A stainless-steel U-bracket is included for wall or pole installation.
-
Is it suitable for industrial environments like factories and warehouses?
A-5 Yes. Its high SPL, focused sound, and durable construction make it ideal for industrial setups.
Specifications
| Frequency Range (-10 dB) | 380 Hz – 6 kHz |
| Coverage Angle | 50° Horizontal × 70° Vertical |
| High-Pass Filter | Built-in passive 350 Hz high-pass filter |
| Directivity Factor (Q) | 15.8 @ 2 kHz |
| Directivity Index (DI) | 12 dB @ 2 kHz |
| Power Rating | 30 W continuous program, 120 W peak (100 hrs) |
| Sensitivity (1W / 1m) | 108 dB avg (1 kHz – 6 kHz), 112 dB @ 1.4 kHz |
| Maximum SPL (1m) | 123 dB continuous / 129 dB peak (1–6 kHz) 127 dB continuous / 133 dB peak @ 1.4 kHz, 30W |
| Impedance / Transformer Taps | 70V: 30W (167Ω), 15W (333Ω), 7.5W (667Ω), 3.8W (1333Ω), 1.9W (2666Ω) 100V: 30W, 15W, 7.5W, 3.8W Direct: 8Ω |
| Drivers | 38 mm (1.5 in) compression driver with phenolic diaphragm |
| Horn Material | ABS |
| Mounting Hardware | Stainless-steel powder-coated U-bracket with corrosion-resistant hardware |
| Color | White (RAL 9016) |
| Input Connector | 300 mm pigtail to bare wire with watertight entry Red (+), Black (–) |
| Outdoor Rating | IP65 (IEC 529), salt-spray tested (B117) |
| Safety Certification | UL1876 registered transformer |
| Dimensions (H × W × D) | Horn only: 206 × 285 × 287 mm |
| Net Weight (Each) | 2.0 kg (4.5 lb) |
| Included Accessories | Stainless-steel mounting bracket |
