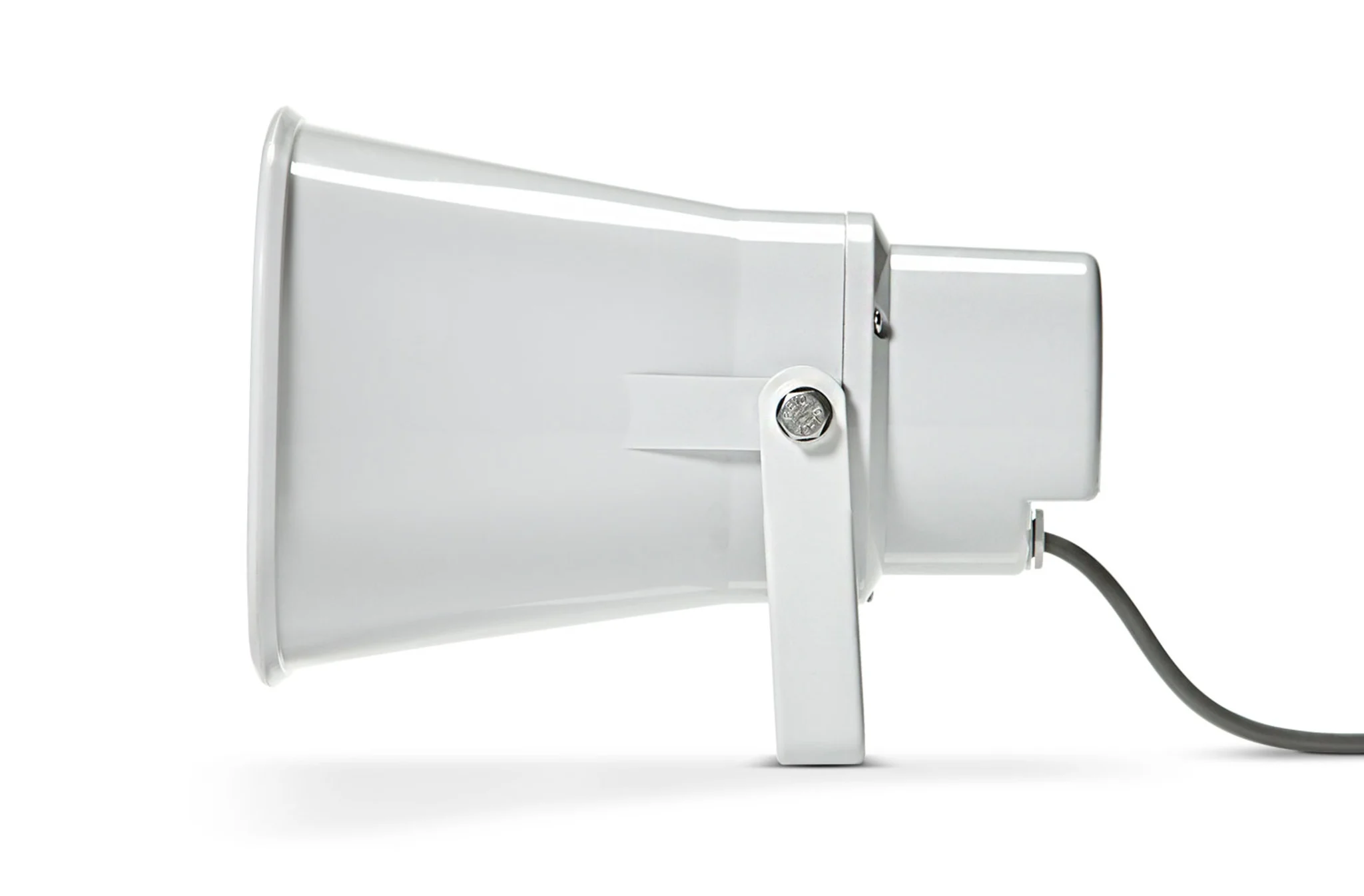

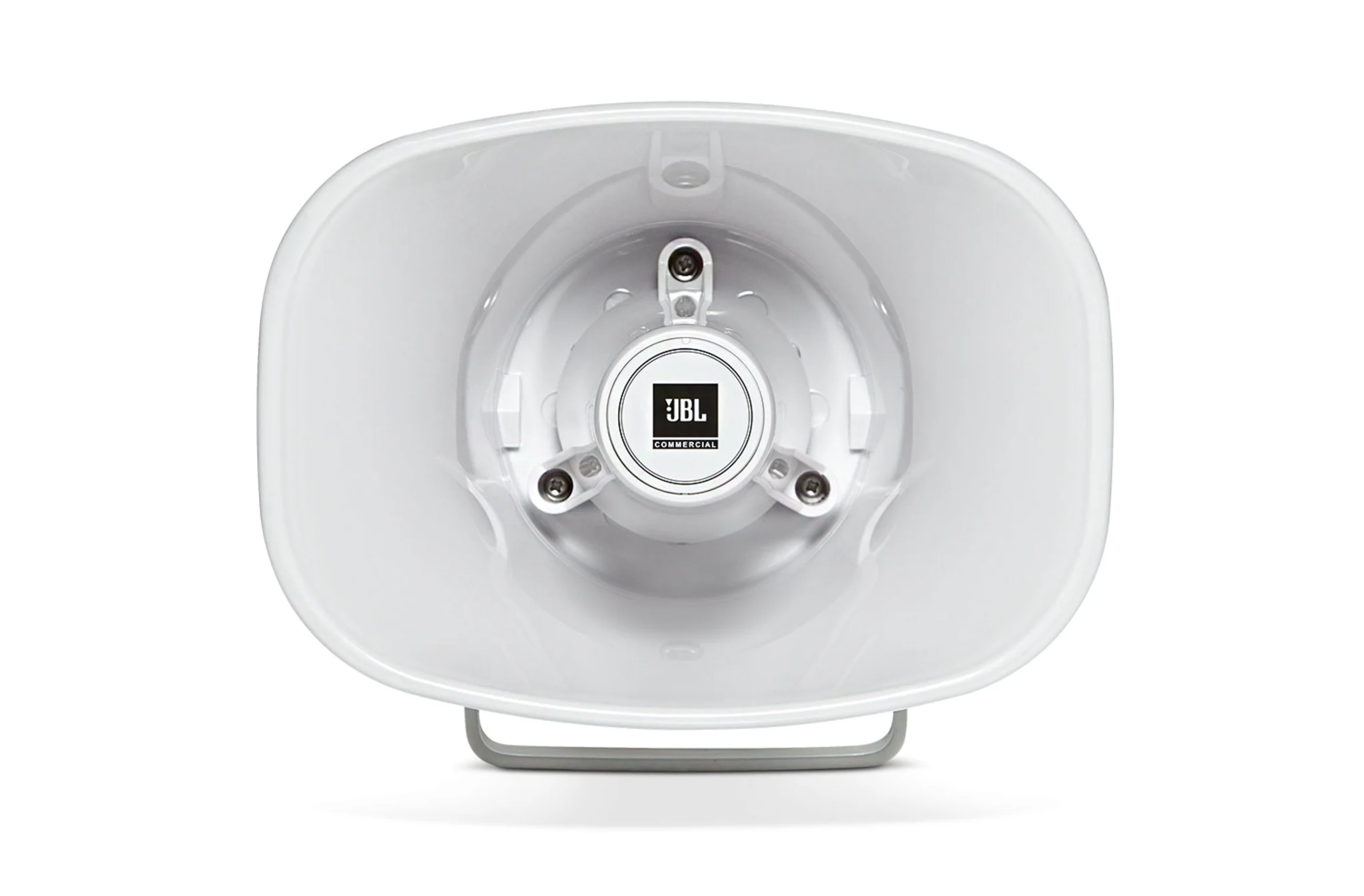

JBL CSS-H15 Paging Horn Speaker

16 products sold in last 9 hours

Selling fast! Over 14 people have in their cart

Clear & Powerful Announcements – Specially tuned for voice clarity with a 400 Hz–7.5 kHz frequency range.
High Sensitivity Design – 105 dB output ensures loud sound even with low amplifier power.
Wide Sound Coverage – 70° horizontal × 90° vertical dispersion for effective area coverage.
70V / 100V Line Ready – Multi-tap transformer supports commercial PA and paging systems.
Built-In High-Pass Protection – 350 Hz filter safeguards the driver from low-frequency damage.
Rugged Outdoor Construction – IP65-rated ABS horn resists dust, water, and harsh weather.
High Output Performance – Delivers up to 129 dB peak SPL for long-distance announcements.
Easy Installation – Includes stainless-steel U-bracket for secure wall or pole mounting.
Corrosion-Resistant Hardware – Stainless steel fittings ensure long-term outdoor reliability.

21 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

The JBL CSS-H15 Paging Horn Speaker is a powerful, weatherproof PA horn specially designed for clear voice announcements and emergency paging in both indoor and outdoor environments. With its high sensitivity, focused sound projection, and rugged IP65-rated construction, this speaker ensures announcements remain loud, clear, and intelligible, even in noisy surroundings. Equipped with a 15-watt multi-tap transformer, supports 70V and 100V distributed audio systems, making it ideal for large installations such as factories, warehouses, railway stations, schools, colleges, airports, parking areas, temples, mosques, malls, and industrial campuses across India. The wide 70° × 90° coverage angle allows sound to travel efficiently over medium distances, reducing the number of speakers required. Its phenolic diaphragm driver is optimized for speech clarity and long-term outdoor durability, while the built-in high-pass filter protects the driver from low-frequency damage.

Is the JBL CSS-H15 suitable for outdoor use?
A-1 Yes. It is IP65 weatherproof, making it perfect for outdoor installations like parking areas, factories, campuses, and public places.
Can this speaker work with 70V or 100V PA amplifiers?
A-2 Absolutely. The JBL CSS-H15 supports both 70V and 100V line systems, commonly used in commercial audio setups in India.
Is it good for music playback?
A-3 This speaker is optimized for voice announcements, paging, and alerts. It is not designed for full-range music playback.
Does mounting hardware come with the speaker?
A-4 Yes. A stainless steel U-bracket is included for secure and flexible installation.
Can it be used in factories and warehouses?
A-5 Yes. Its high SPL, focused sound projection, and durable build make it ideal for industrial environments.

Specifications

Frequency Range (-10 dB)	400 Hz – 7.5 kHz
Coverage Angle	70° Horizontal × 90° Vertical
Built-in Protection	Passive 350 Hz high-pass filter to protect against low-frequency damage
Directivity Factor (Q)	10.9 @ 2 kHz
Directivity Index (DI)	10.4 dB @ 2 kHz
Power Rating	15 W continuous (60 W peak), 100 hours
Sensitivity (1W/1m)	105 dB (avg. 1 kHz – 6 kHz); 111 dB @ 2 kHz
Maximum SPL (1m)	117 dB continuous (123 dB peak) @ 1 kHz – 6 kHz; 123 dB continuous (129 dB peak) @ 2 kHz
Impedance Options	8 ohms (direct) and multi-tap transformer settings

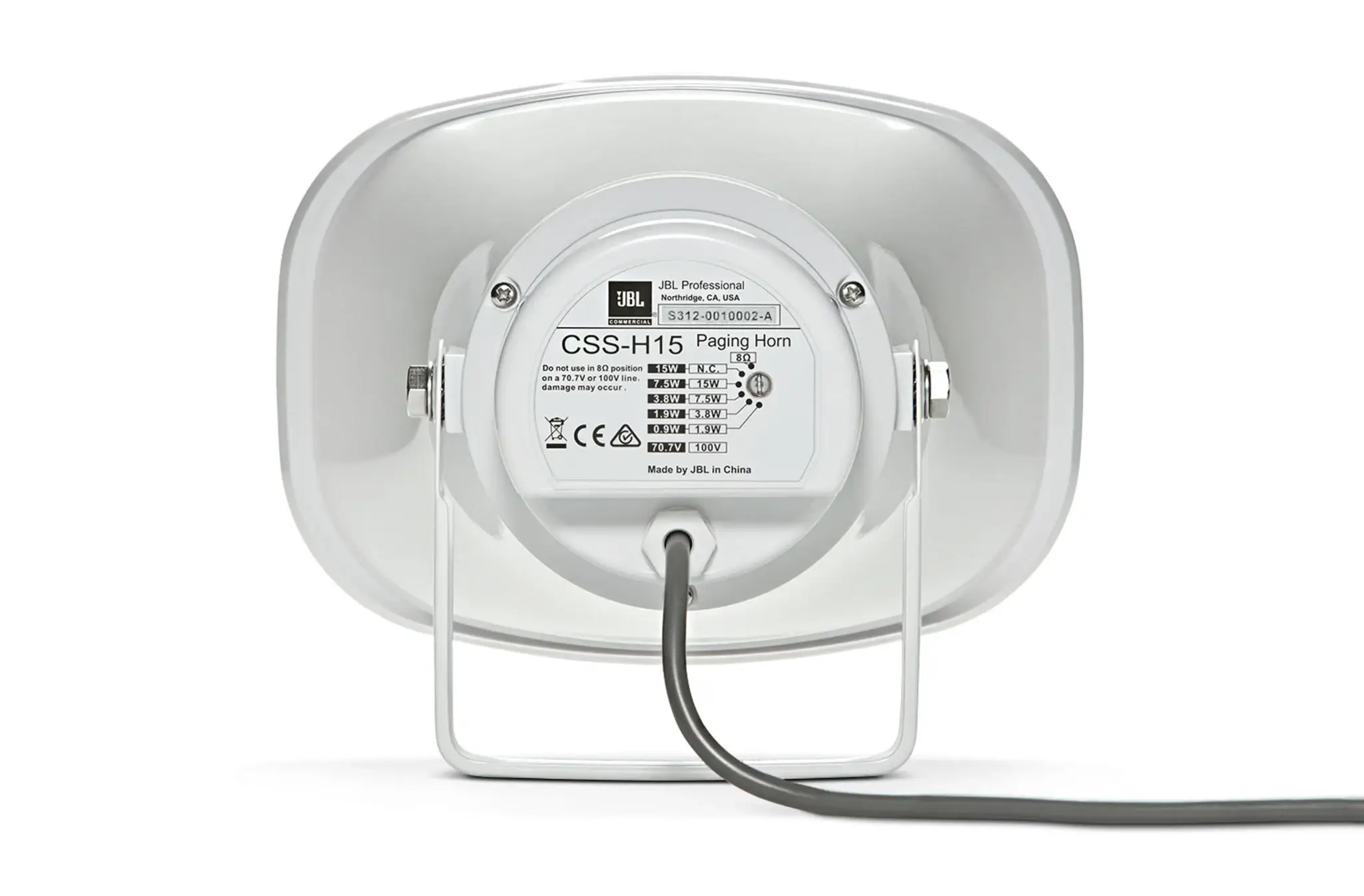

Transformer Taps – 70V	15 W, 7.5 W, 3.8 W, 1.9 W, 0.9 W
Transformer Taps – 100V	15 W, 7.5 W, 3.8 W, 1.9 W
Driver	33 mm (1.3 in) driver with phenolic diaphragm
Horn Material	High-strength ABS plastic
Input Connector	300 mm pigtail to bare wire via watertight fitting (Red + / Black −)
Mounting Hardware	Stainless steel powder-coated U-bracket with corrosion-resistant hardware
Outdoor Rating	IP65 (dust-tight & water-resistant), salt-spray tested
Safety Certification	UL-registered transformer (UL1876)
Color	White (RAL 9016)
Dimensions (H × W × D)	163 × 222 × 232 mm (horn only)
Dimensions (with Bracket)	181 × 222 × 232 mm
Net Weight (each)	1.36 kg (3.0 lb)
Shipping Weight (each)	1.68 kg (3.7 lb)
Included Accessories	Stainless steel U-mount bracket
