JBL Control 226C/T ceiling speaker

16 products sold in last 3 hours

Selling fast! Over 19 people have in their cart

30 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

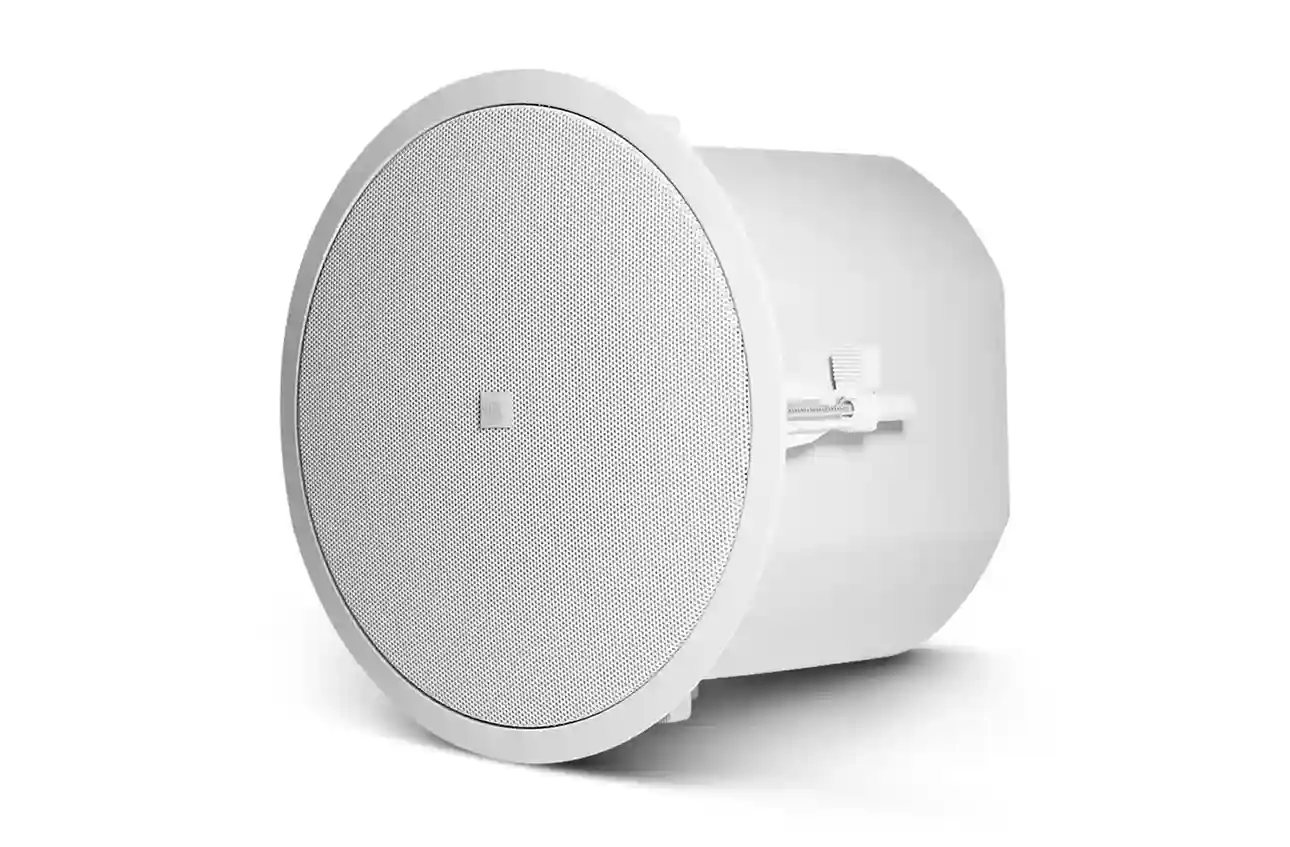

The JBL Control 226C/T is a high-performance 6.5″ coaxial ceiling loudspeaker designed for professional commercial audio installations where powerful output, clarity, and wide coverage are required. Equipped with a Kevlar-reinforced woofer and a true HF compression driver, this speaker delivers exceptional speech intelligibility and high-impact music, even in large spaces. With constant 120° conical coverage, high SPL capability, and a built-in 70V/100V transformer, is ideal for auditoriums, conference halls, airports, malls, hotels, houses of worship, and premium retail spaces.

Specifications

Frequency Range (-10 dB)	47 Hz – 19 kHz
Sensitivity	90 dB (1 kHz – 16 kHz)
Coverage Angle	120° conical, constant directivity
Maximum SPL (1 m)	112 dB (low-impedance), 118 dB peak108 dB (top 70V/100V tap)

Power & Electrical

Power Rating	150 W continuous pink noise (600 W peak), 2 hrs100 W continuous pink noise (400 W peak), 100 hrs
Transformer Taps	68 W, 34 W, 17 W (8.5 W @ 70V), plus transformer bypass
Impedance	8 Ω (direct / bypass setting)

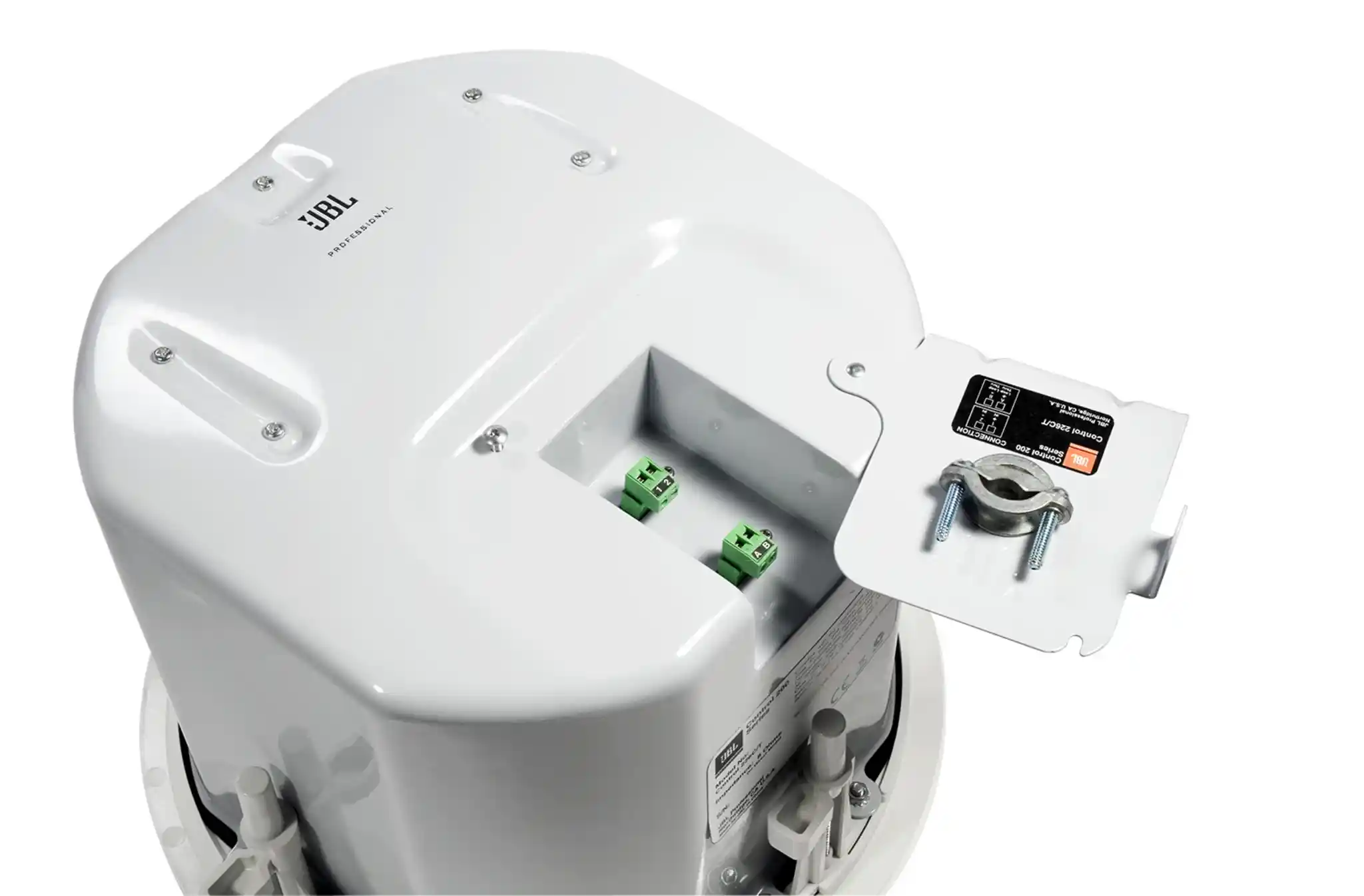

Input Connectors	Removable locking connector with screw-down terminals

Drivers

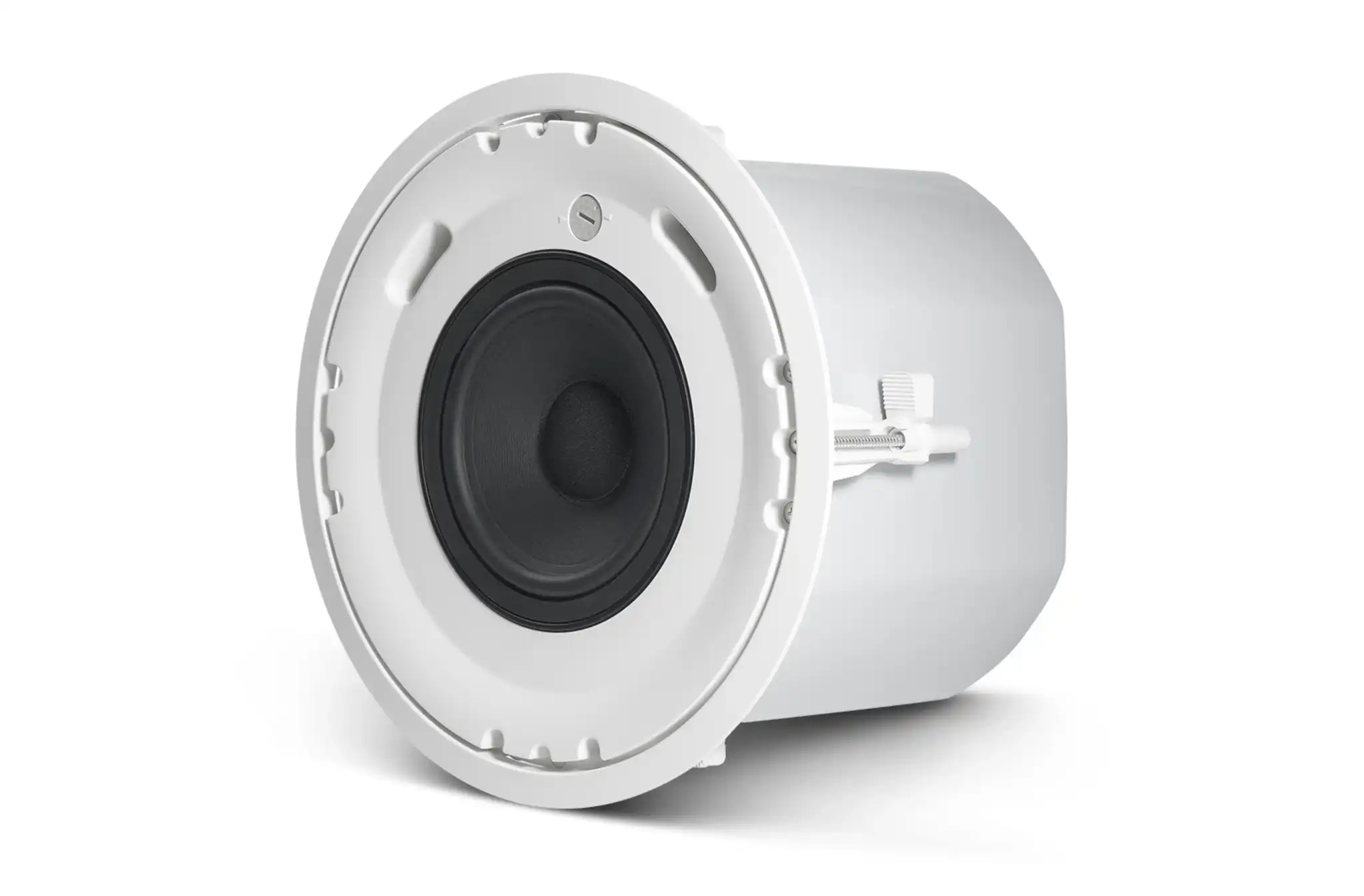

Low-Frequency Driver	165 mm (6.5″)
High-Frequency Driver	Compression driver, 25 mm (1″) voice coil

Dimensions & Weight

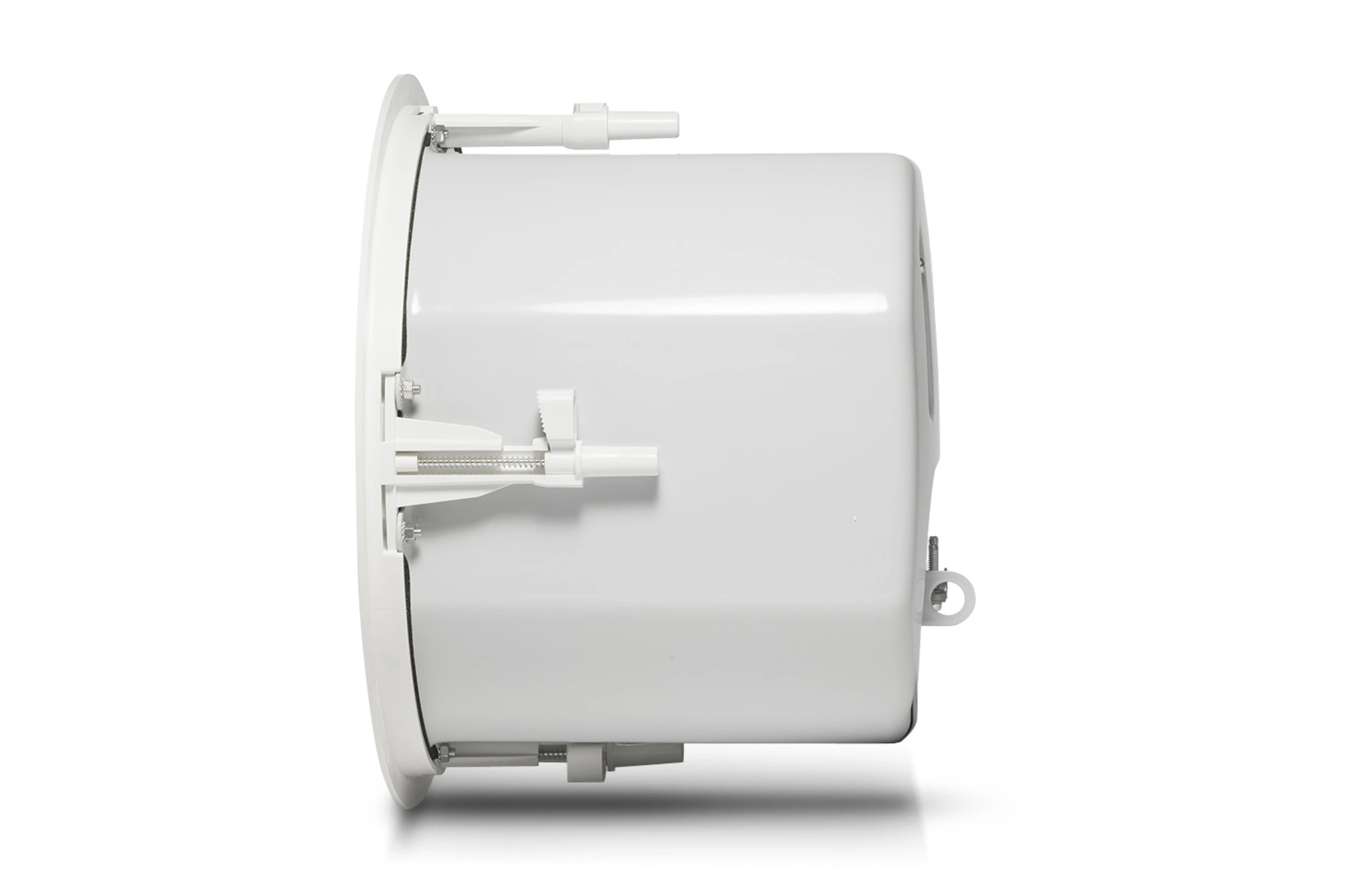

Dimensions (H × Di a)	Ø 330 mm (13″) round baffle × 246 mm (9.7″) depth
Ceiling Cut out Size	307 mm (12.1″) diameter
Net Weight (each)	9.1 kg (20.0 lb)
Shipping Weight (pair)	23.9 kg (52.5 lb)
