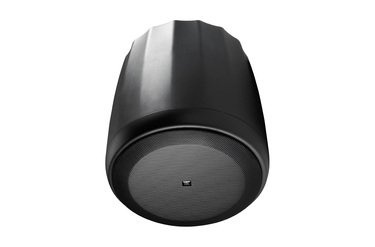

JBL Control 60PS/T Pendant Subwoofer
- Pendant-style subwoofer designed for commercial background music and paging systems
- Delivers deep, powerful bass with 42 Hz – 350 Hz frequency range
- High output performance with up to 113 dB peak SPL for large open spaces
- Supports connection of 2 or 4 satellite speakers for complete full-range audio coverage
- Built-in low-pass filter and high-passed satellite outputs for clean system integration
- 70V / 100V line and 8-ohm operation with rotary tap selector for flexible installations
- IP44 splash-proof design suitable for indoor and semi-outdoor applications
- Durable high-impact enclosure with paintable steel grille for seamless design matching
- Dual suspension system with safety cable and adjustable height for secure ceiling mounting
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The JBL Control 60PS/T is a professional pendant subwoofer designed to deliver powerful, deep bass in open-ceiling and high-ceiling commercial environments. Engineered for modern architectural spaces, this hanging subwoofer integrates seamlessly with pendant and ceiling satellite speakers, enhancing low-frequency performance without compromising aesthetics. Equipped with an 8-inch long-excursion subwoofer driver produces tight, controlled bass that adds warmth and impact to background music and foreground audio systems. Its built-in passive crossover allows direct connection of up to four satellite speakers, reducing the need for external processors and simplifying installation.
Q1. Can this subwoofer work with 70V/100V amplifiers?
A-1 Yes. The JBL Control 60PS/T fully supports 70V, 100V, and 8-ohm systems via a rotary tap selector.
Q2. Does this subwoofer need an external crossover?
A-2 No. It has a built-in low-pass filter and high-pass outputs for satellite speakers.
Q3. How many speakers can be connected to it?
A-3 You can connect 2 or 4 low-impedance satellite speakers (8–16 ohms).
Q4. Is it suitable for Indian climate conditions?
A-4 Yes. It is IP44 splash-proof and exceeds Mil-Spec 810 standards for humidity and temperature.
Q5. Is installation safe for high ceilings?
A-5 Absolutely. It includes dual suspension cables (main + safety) with certified load rating
Specifications
| Frequency Range (-10 dB) | 42 Hz – 350 Hz |
| Frequency Response (±3 dB) | 55 Hz – 125 Hz |
| Power Rating | 300 W Continuous Program Power (100 hrs), 150 W Continuous Pink Noise (100 hrs) |
| Nominal Sensitivity (2.83V/1m) | 88 dB |
| Maximum SPL (1 m) | 107 dB average, 113 dB peak |
| Impedance | 8 Ω |
| Transformer Taps | 110 W, 55 W, 30 W (& 15 W @ 70V) |
| Transformer Insertion Loss | 0.98 dB @ 15 W, 0.99 dB @ 30 W, 0.94 dB @ 55 W, 1.10 dB @ 110 W |
| Standalone Hook up | Connect to Input connector; built-in low-pass filter engaged. Loop Out in parallel for additional speakers |
| Subwoofer-Satellite Hook up | Supports 2 or 4 satellite speakers (Control 62P, Control 52, Control 42C). Satellite outputs high-passed |
| Drivers | 200 mm (8 in) polypropylene-coated paper cone with butyl rubber surround; 50 mm (2 in) high-temp copper voice coil; vented fiberglass resin former |
| Enclosure Material | High impact polystyrene |
| Grille | Zinc-plated steel with powder-coat finish, foam backing; removable and paintable |
| Environmental Rating | IP44 splash-proof; exceeds Mil Spec 810 for humidity, salt spray, temperature & UV |
| Input Connectors | Six removable locking 2-pin connectors with screw-down terminals (Input, Loop Out, Sat 1–4); max 12 AWG (2.5 mm²); rubber covers included |
| Suspension | Dual cable system (main + safety), 4.5 m (15 ft) galvanized steel cables with Grippleâ„¢ adjustable fasteners; SWL 45 kg |
| Safety Agency | Speaker UL1480 listed, transformer UL1876 registered; Suspension system UL1598 & UL2239, TUV, CSA |
| Dimensions (H x W x D) | 333 mm (13.1 in) diameter × 344 mm (13.6 in) height to top of cabinet, 369 mm (14.5 in) to top of suspension bracket |
| Net Weight (Each) | 7.6 kg (16.7 lb) |
| Shipping Weight (Pair) | 17.6 kg (38.7 lb) |
| Included Accessories | Two suspension cable systems, six euro-block connectors, six rubber cover boots |
| Optional Accessories | MTC-PC60 full top panel / terminal cover |
| Colors | Black or White (-WH), paintable |
| Coverage Angle | 140° conical |
