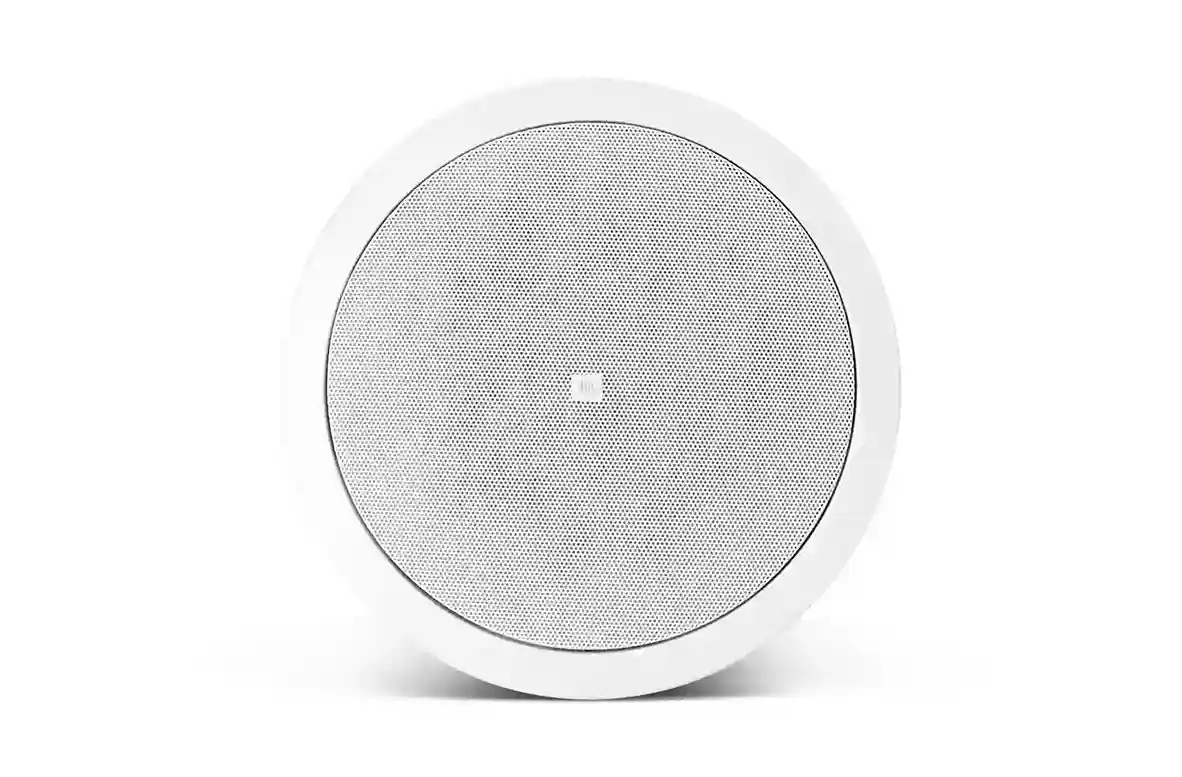

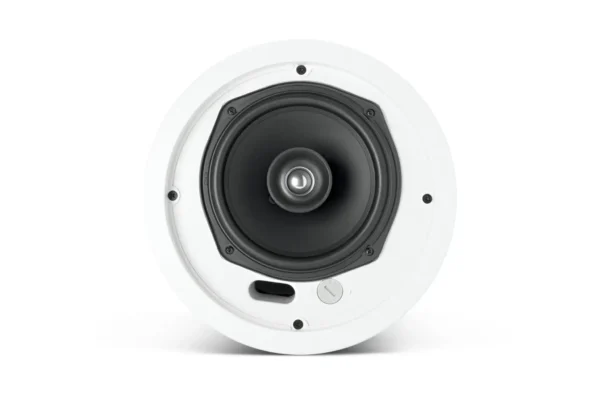

The JBL Control 26CT is a high-performance 6.5″ ceiling loudspeaker designed for commercial background and foreground audio applications. Engineered by JBL Professional, it delivers clear vocals, balanced music, and wide coverage across offices, hotels, restaurants, retail stores, hospitals, and corporate spaces throughout India. Featuring a 6.5″ polypropylene-coated woofer and 0.75″ titanium-coated tweeter, the Control 26CT produces rich low-mid frequencies and crisp highs, ensuring clear speech and natural music reproduction. Its 110° wide coverage angle ensures even sound distribution, reducing the number of speakers required for large areas.
-
Can JBL Control 26CT be used for background music?
A-1 Yes, it’s designed for background music, foreground music, and announcements.
-
Is it compatible with 70V/100V PA systems?
A-2 Yes, it has a built-in multi tap transformer for both 70V and 100V commercial lines.
-
What is the coverage angle of this speaker?
A-3 It provides 110° conical coverage, ensuring even audio distribution.
-
Does it include mounting accessories?
A-4 Yes, it includes backcan, tile rails, C-shaped support plate, cut out template, paint shield, and removable wiring connector.
-
Can it be used for continuous commercial operation?
A-5 Absolutely, it’s designed for daily commercial use with high reliability.
Specifications
| Frequency Range |
75 Hz – 20 kHz (usable) |
| Nominal Sensitivity |
~89 dB @ 1 W/1 m |
| Coverage Angle |
110° Conical |
| Directivity Index (DI) |
~4.6 dB |
| Maximum SPL |
~107 dB @ 1 m |
Power & Connectivity
| Power Handling |
150 W Continuous Program / 75 W Continuous Pink Noise |
| Transformer Taps |
70 V: 60 W, 30 W, 15 W, 7.5 W100 V: 60 W, 30 W, 15 W |
| Nominal Impedance |
16 Ω (bypass / low-Z mode) |
| Terminations |
Removable 4‑pin locking connector with screw‑down terminals |
Drivers
| Low-Frequency Driver (Woofer) |
165 mm (6.5″) polypropylene-coated woofer |
| High-Frequency Driver (Tweeter) |
19 mm (0.75″) titanium-coated tweeter |
Construction & Installation
| Mounting Type |
Flush-mount ceiling speaker with backcan & tile rails |
| Included Accessories |
C-shaped support plate, tile support rails, cutout template, paint shield, removable wiring connector |
| Safety Rating |
UL1480, UL2043, NFPA90 & NFPA70 compliant; transformer UL1876 registered |
Dimensions & Weight
| Height |
~210 mm (8.3″) |
| Diameter |
~252 mm (9.9″) |
| Ceiling Cut out Size |
~220 mm (8.75″) |
| Net Weight (Each) |
~4.2 kg (10 lbs) |
| Shipping Weight (Pair) |
~9.7 kg (21 lbs) |
