JBL Control 24CT ceiling speaker

2 products sold in last 7 hours

Selling fast! Over 12 people have in their cart

22 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

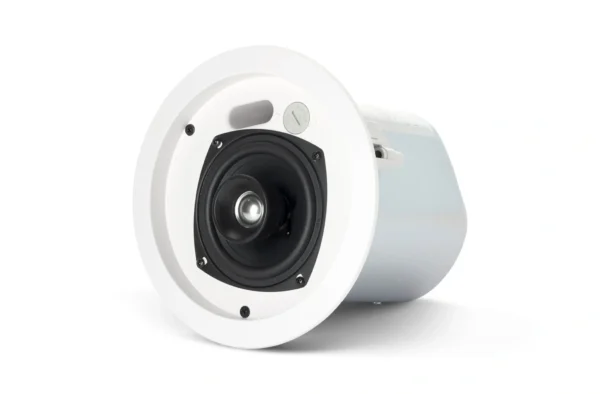

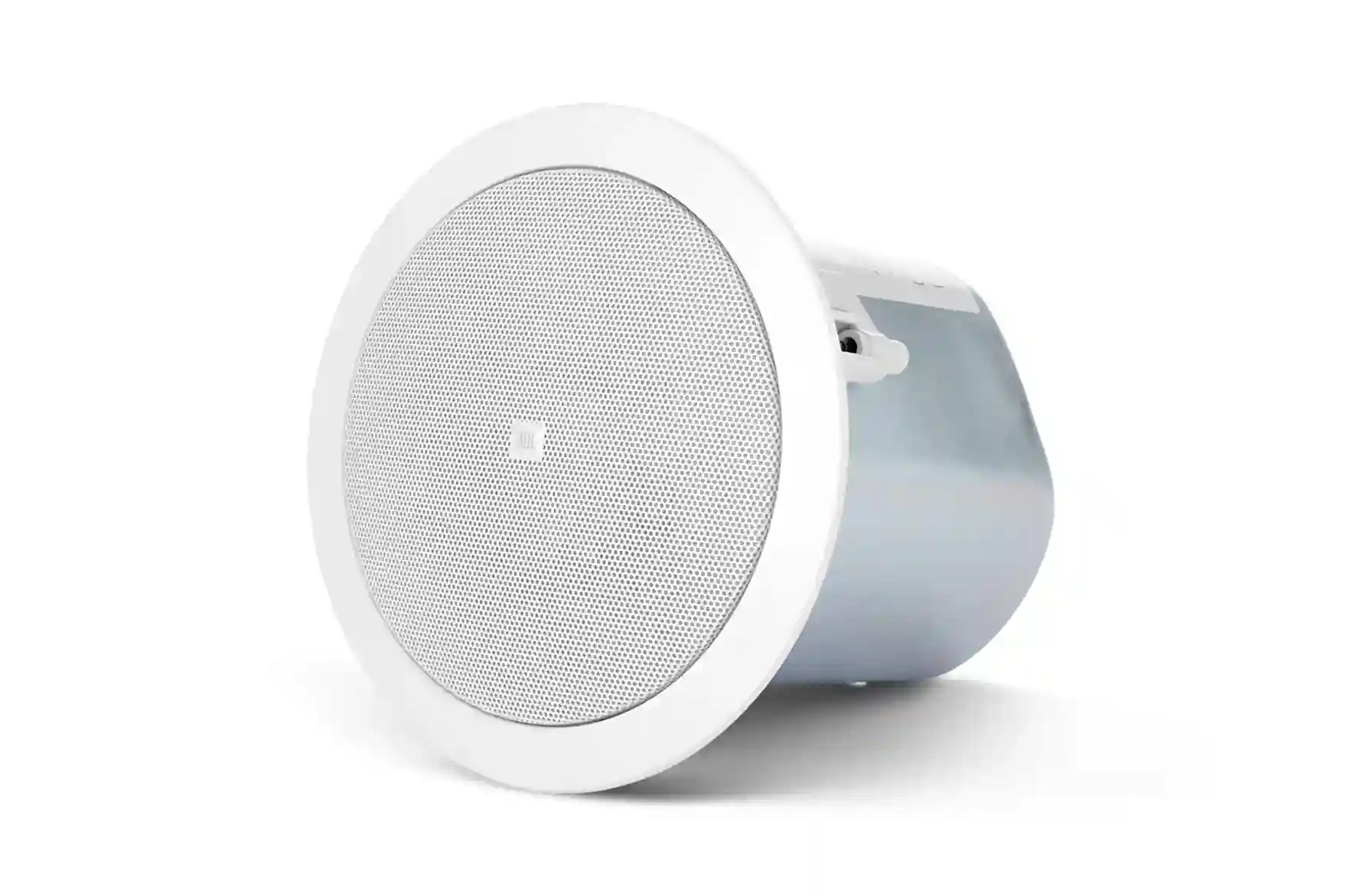

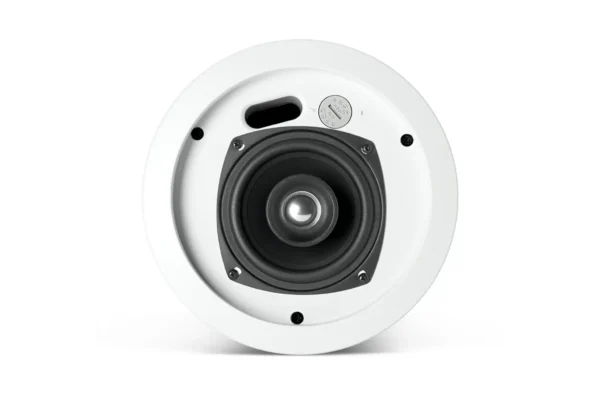

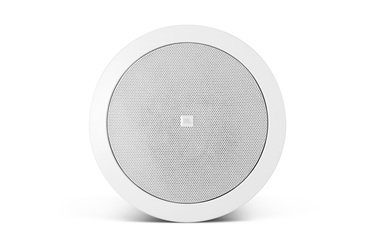

The JBL Control 24CT ceiling speaker is a compact, high-performance background and foreground loudspeaker designed for commercial audio and PA installations. Built by JBL Professional, it delivers clear speech, balanced music, and wide sound coverage, making it ideal for offices, retail stores, restaurants, hotels, hospitals, schools, and corporate spaces across India .Equipped with a 4-inch polypropylene woofer and a 0.75-inch titanium-coated tweeter, the Control 24CT ensures natural vocals, clean highs, and consistent sound performance. Its wide 130° conical coverage allows even sound distribution, reducing the number of speakers required and lowering installation costs.

Is JBL Control 24CT suitable for background music?

A-1 Yes, it is specially designed for background and foreground music as well as announcements.
Can this speaker be used with 70V or 100V PA systems?

A-2 Yes, it has a built-in multi tap transformer for both 70V and 100V systems.
Is this speaker good for offices and retail stores?

A-3 Absolutely. It is widely used in offices, retail shops, restaurants, and hospitals.
Does the speaker include mounting accessories?

A-4 Yes, it comes with backcan, tile rails, support plate, cutout template, and wiring connector.
Can it be used for continuous daily operation?

A-5 Yes, the JBL Control 24CT is designed for continuous commercial use.

Specifications

Frequency Range	80 Hz – 20 kHz
Nominal Sensitivity	86 dB SPL @ 1 m
Coverage Angle	130° Conical
Directivity Factor (Q)	2.4 (avg. 500 Hz – 4 kHz)
Directivity Index (DI)	3.8 dB (avg. 500 Hz – 4 kHz)
Maximum SPL	Approx. 102 dB @ 1 m

Power & Connectivity

Power Handling	80 W Continuous Program / 40 W Continuous Pink Noise
Transformer Taps	70V: 30W, 15W, 7.5W, 3.7W100V: 30W, 15W, 7.5W
Nominal Impedance	16 Ohms
Terminals	Removable 4-pin locking connector with screw terminals

Drivers

Low-Frequency Driver	100 mm (4″) polypropylene cone with butyl rubber surround
High-Frequency Driver	19 mm (0.75″) titanium-coated diffraction-loaded tweeter

Construction & Installation

Mounting Type	Flush ceiling mount with integrated backcan & tile rails
Included Accessories	C-shaped support plate, tile rails, cutout template, paint shield, removable wiring connector
Safety Rating	UL1480, UL2043, NFPA90 & NFPA70 compliant
