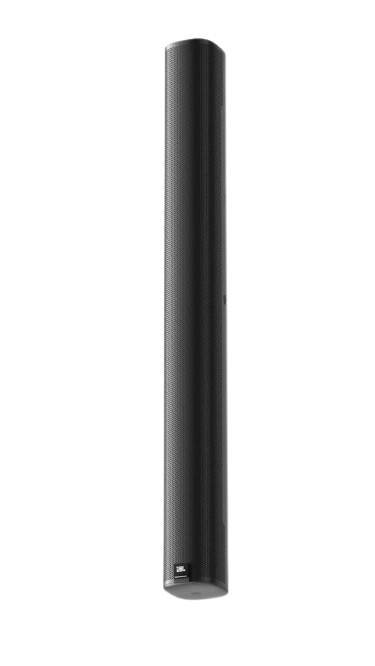

JBL COL800 slim column loudspeaker

20 products sold in last 4 hours

Selling fast! Over 10 people have in their cart

Slim, elegant column design for modern interiors
160° horizontal × 60° vertical sound coverage with down-tilt
High power: 300 W Continuous Program, 116 dB peak SPL
Supports 70V / 100V distributed audio and 8Ω operation
IP54-rated for dust & water protection, UV resistant
4 LF racetrack drivers + 2 HF tweeters for clear sound
Multiple mounting options: pan/tilt wall bracket + L-brackets
UL94-V0 fire-rated, Ro HS & REACH compliant

22 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

The JBL COL800 Slim Column Loudspeaker delivers clear speech, powerful announcements, and balanced background music in commercial and public spaces. Its slim and elegant column design blends seamlessly with modern interiors while providing wide and even sound coverage. With 160° horizontal dispersion and 60° vertical coverage with built-in down-tilt ensures sound reaches every corner while reducing echo. Ideal for conference halls, auditoriums, schools, hotels, retail spaces, and places of worship. This speaker supports 70V / 100V distributed audio systems as well as 8-ohm operation, making it easy to integrate with commercial PA amplifiers.

1. Is JBL COL800 suitable for speech and announcements?
A-1 Yes, it is designed for clear speech intelligibility, ideal for announcements, presentations, and public address systems.

2. Can this speaker be used with 70V / 100V PA systems?
A-2 Yes, it supports 70V and 100V distributed audio systems as well as 8-ohm operation.

3. Is it suitable for auditoriums and religious places?
A-3 Absolutely. Controlled sound dispersion reduces echo, making it perfect for temples, churches, mosques, and auditoriums.

4. Is mounting hardware included?
A-4 Yes, it comes with a swivel pan/tilt wall bracket and L-brackets for versatile wall mounting.

5. Can it be installed in semi-outdoor areas?
A-5 Yes, with IP54 protection, it can be used in covered outdoor or semi-outdoor areas like corridors or verandas.

Specifications

Frequency Range (-10 dB)	85 Hz – 20 kHz
Frequency Response (±3 dB)	125 Hz – 18 kHz
Power Rating (8Ω)	300 W Continuous Program (2 hrs)150 W Continuous Pink Noise (600 W peak, 2 hrs)100 W Continuous Pink Noise (400 W peak, 100 hrs)
Sensitivity (2.83 V @ 1 m)	88 dB
Rated Maximum SPL	110 dB Continuous / 116 dB Peak @ 1 m
Coverage Pattern – Vertical	60° average (1 kHz–4 kHz) with built-in 10° down-tilt (±20° / -40° coverage)
Coverage Pattern – Horizontal	160° average (1 kHz–4 kHz)
Directivity Factor (Q)	8.1
Directivity Index (DI)	9.1 dB
Nominal Impedance	8 Ω (Thru/Direct mode)
Minimum Impedance	7.7 Ω @ 290 Hz
Transformer Taps	60 W, 30 W, 15 W @ 70 V & 100 V (plus 7.5 W @ 70 V); 8 Ω through (switchable)
Transformer Insertion Loss	< 1 dB for all taps
Maximum Input Voltage	33 V RMS (2 hrs), 66 V peak
Recommended High-Pass Filter	75 Hz (8 Ω mode); 60 Hz (all transformer taps)
Low-Frequency Drivers	4 × 125 × 55 mm (5 × 2.25 in) racetrack woofers
High-Frequency Drivers	2 × 20 mm (0.8 in) tweeters (top-mounted)
Enclosure Material	PC + ABS, UL94-V0 flammability rating
Grille	Plated SPCC with polyester powder coat finish
Agency Ratings	Transformer UL recognized; Ro HS, REACH compliant; LVD for CE
Environmental Rating	IP54 dust and water protected (with terminal cover); UV resistant
Terminals	4-pin Euro block, accepts 24–14 AWG (0.25–2.5 mm²)

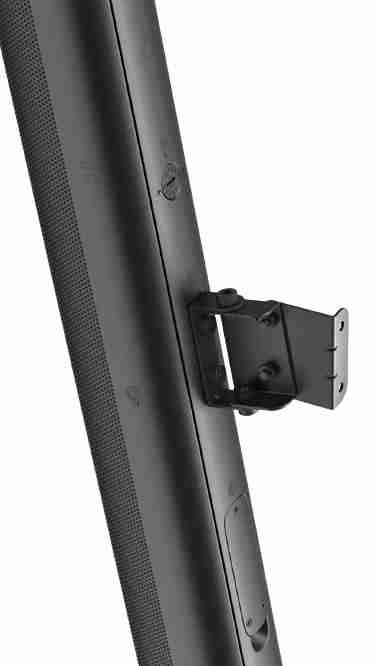

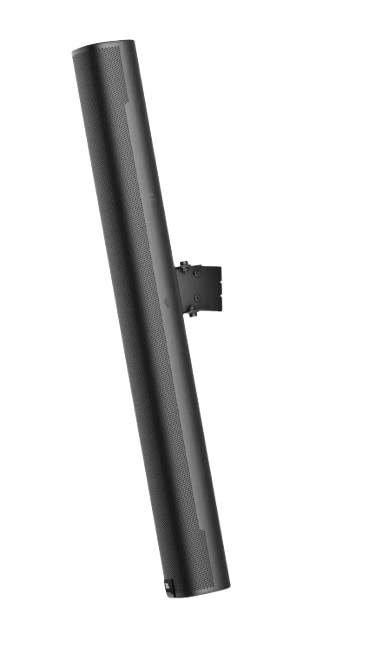

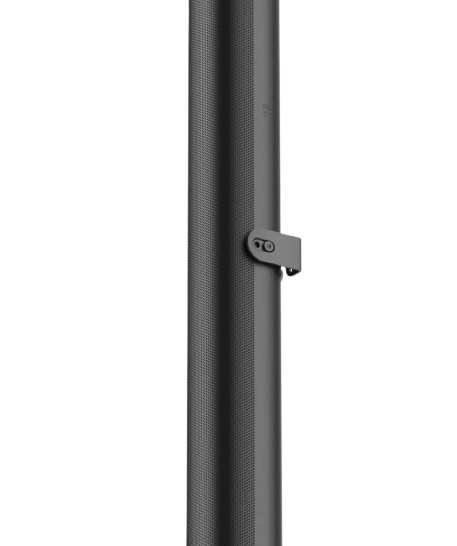

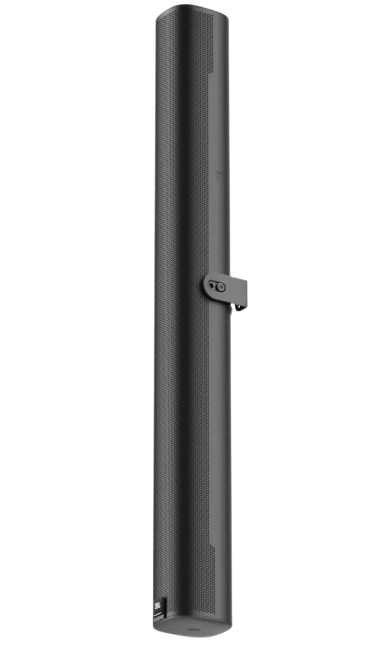

Mounting Options	Swivel Pan/Tilt Wall Bracket included; 2 × L-brackets; multiple threaded insert points for custom mounting
Dimensions (H × W × D)	800 × 102 × 93 mm (31.5 × 4.1 × 3.7 in)
Net Weight	5.2 kg (11.5 lbs)
