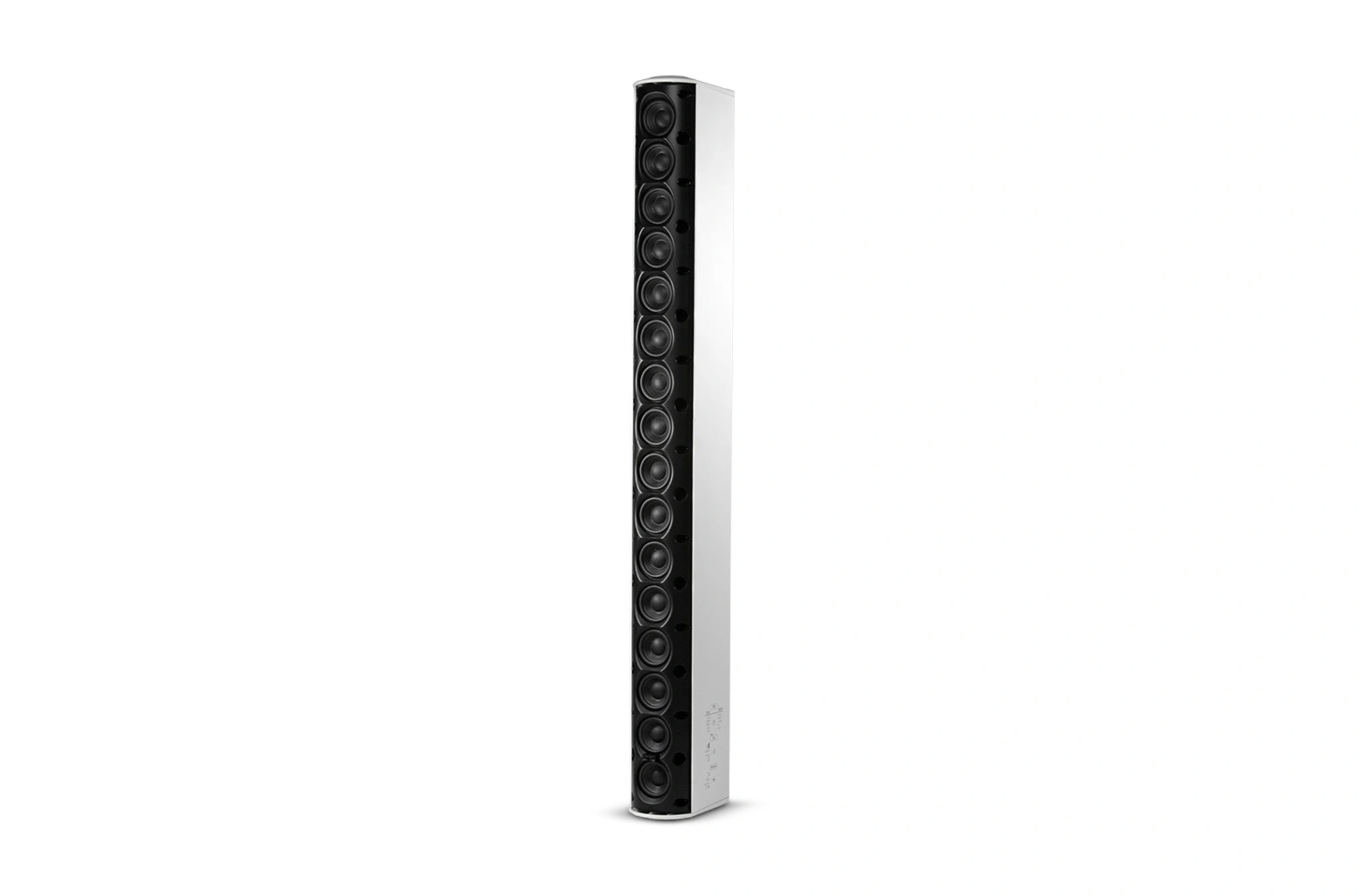

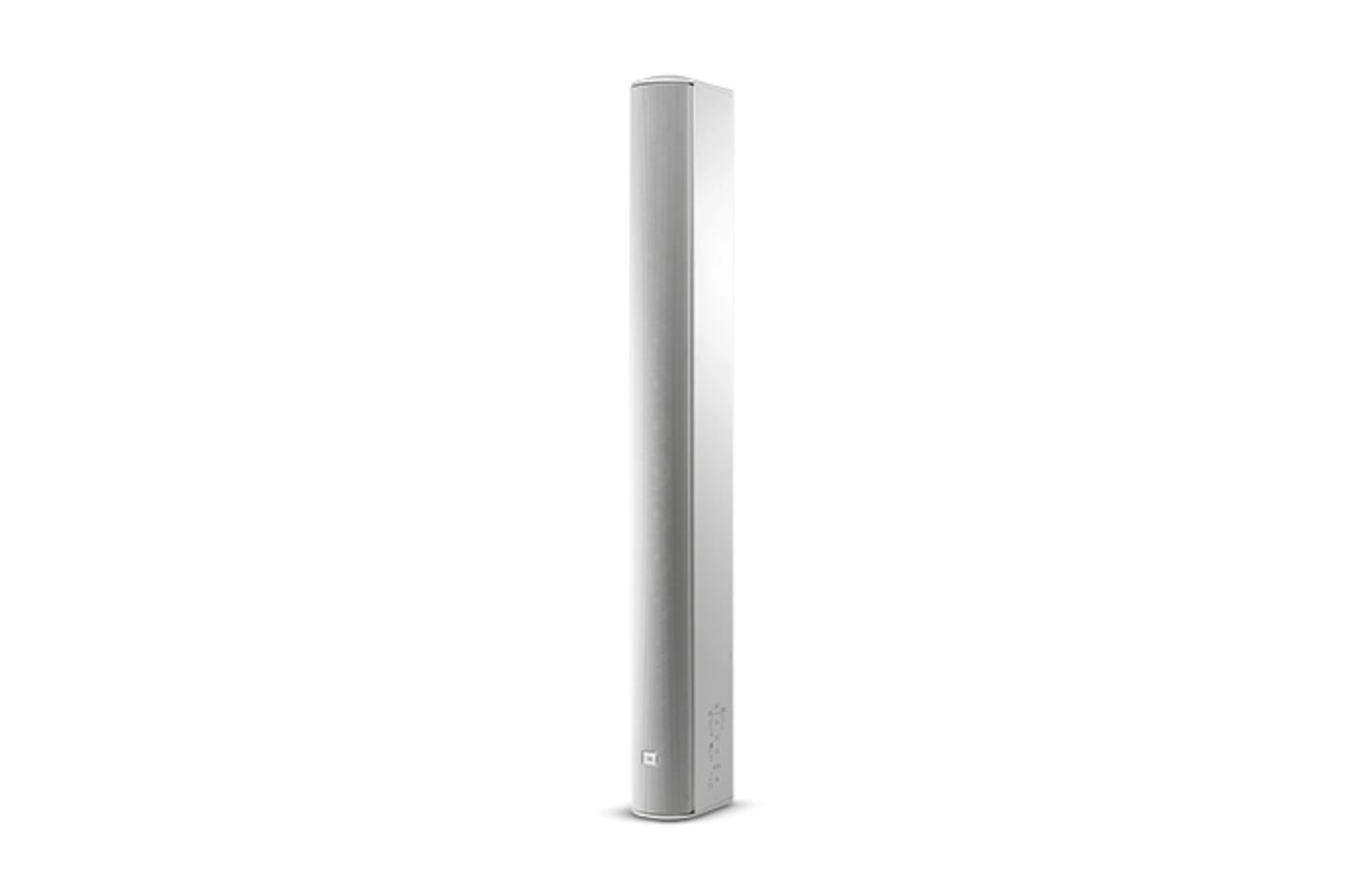

JBL CBT 100LA-1 line array column speaker

20 products sold in last 16 hours

Selling fast! Over 13 people have in their cart

16 × 2″ full-range drivers for powerful and clear sound output
• Constant Beam width Technology for even sound coverage across the audience
• Switchable vertical dispersion: 15° narrow or 40° wide coverage
• Wide 150° horizontal coverage for large seating areas
• High power handling up to 325W with 127 dB peak SPL
• Optimized for clear speech and smooth background music
• 70V / 100V line and 8-ohm operation for flexible system design
• IP-55 rated (with optional cover) for indoor and outdoor use
• Slim column design ideal for halls, churches, temples, mosques, and auditoriums
• Includes pan-tilt wall mount for easy and precise installation

27 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

The JBL CBT 100LA-1 is a high-power professional line array column loudspeaker designed for large commercial and public spaces where clear speech, controlled sound coverage, and high output are critical. Powered by JBL’s patented Constant Beam width Technology, it delivers even sound distribution from front to back, eliminating echo and uneven volume commonly found in traditional column speakers. Equipped with 16 full-range drivers, provides exceptional vocal clarity and strong music performance. Its switchable Narrow and Broad vertical coverage modes allow installers to precisely control sound dispersion, making it ideal for auditoriums, convention halls, railway stations, airports, temples, churches, mosques, lecture halls, and large conference venues.

Is the JBL CBT 100LA-1 suitable for large auditoriums and halls?

A-1 Yes. It is designed specifically for large venues requiring long-throw, clear speech, and controlled sound dispersion.
Can this speaker be used with 70V / 100V PA amplifiers?

A-2 Yes. It fully supports 70V and 100V distributed systems and also works in 8-ohm mode.
What is the difference between Narrow and Broad modes?

A-3 Narrow mode focuses sound over long distances, while Broad mode spreads sound wider for closer audience areas.
Is the speaker suitable for outdoor installations?

A-4 Yes. With IP55 protection (optional cover), it is suitable for outdoor and semi-outdoor environments.
Is mounting hardware included?

A-5 Yes. A professional swivel pan/tilt wall bracket is included for precise aiming and easy installation.

Specifications

Drivers	Sixteen 50 mm (2 in) full-range drivers
Frequency Range (-10 dB)	80 Hz – 20 kHz
Coverage Angle	Vertical: Switchable • Narrow Mode: 15° (±10°) • Broad Mode: 40° (±10°) Horizontal: 150° (±20°)
Sensitivity	Narrow Mode: • Speech: 96 dB (2 kHz – 14 kHz) • Music: 93 dB (300 Hz – 18 kHz) Broad Mode: • Speech: 93 dB (2 kHz – 14 kHz) • Music: 90 dB (300 Hz – 18 kHz)
Nominal Impedance	8 ohms (Thru mode)
Power Rating	325 W (1300 W peak), 2 hrs 200 W (800 W peak), 100 hrs
Maximum SPL (1 m)	Narrow Mode: • Speech: 121 dB continuous (127 dB peak) • Music: 118 dB continuous (124 dB peak) Broad Mode: • Speech: 118 dB continuous (124 dB peak) • Music: 115 dB continuous (121 dB peak)
Transformer Taps	120 W, 60 W, 30 W (15 W @ 70V only) and 8Ω thru, selectable via switch
Enclosure	Fiberglass-reinforced ABS cabinet with painted aluminium grille
Outdoor Capability	IP-55 rated (with optional MTC-PC2 cover); UV, moisture & 200-hr salt-spray resistant
Available Colors	Black, White (-WH)
Insert Points	18 × M6 threaded insert points on back panel
Mounting	Included swivel pan/tilt wall bracket ±80° horizontal swivel, ±15° vertical tilt Compatible with Omni Mount 30.0 & third-party brackets Can be suspended using threaded points
Dimensions (H × W × D)	1000 × 98.5 × 153 mm (39.4 × 3.8 × 6.0 in)
Net Weight	7.2 kg (15.8 lb)
Included Accessories	Swivel (pan) / tilt wall bracket
Optional Accessories	MTC-PC2 terminal panel cover MTC-CBT-FM1 flush-mount wall bracket MTC-CBT-SMB1 stand-mount bracket (35 mm stand)
