JBL AWC82 outdoor speaker

7 products sold in last 11 hours

Selling fast! Over 17 people have in their cart

IP56-rated all-weather design for outdoor use
8″ Kevlar-reinforced woofer for punchy bass
25 mm high-temperature HF driver with Sonic Guard protection
Wide 120° × 120° coverage for even sound distribution
250 W continuous / 124 dB peak SPL output
Supports 70 V / 100 V line systems and 8 Ω direct connection
Heavy-duty ABS enclosure with corrosion-resistant steel grille
Includes U-bracket and M6 safety attachment for secure mounting
Compact dimensions and lightweight design for versatile installation

26 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

The JBL AWC82 is a professional-grade all-weather 2-way coaxial loudspeaker designed for reliable outdoor and commercial installations. Equipped with an 8-inch Kevlar-reinforced woofer and a high-output compression tweeter, it delivers clear vocals, wide sound coverage, and consistent performance even in harsh weather conditions. With its IP56 weather-resistant enclosure, corrosion-protected grille, and rugged ABS construction is ideal for stadiums, resorts, hotels, malls, theme parks, restaurants, campuses, and outdoor PA systems across India. Support for 70V / 100V line systems and 8-ohm operation makes it highly flexible for large distributed audio installations

Q1. Is the JBL AWC82 suitable for outdoor use?
A-1 Yes. It is IP56-rated and designed specifically for outdoor and all-weather installations.

Q2. Can this speaker work with 70V or 100V amplifiers?
A-2 Yes. The JBL AWC82 supports 70V, 100V line systems as well as 8-ohm direct operation.

Q3. Is this speaker good for speech and announcements?
A-3 Absolutely. It offers excellent speech clarity, making it ideal for PA and announcement systems.

Q4. Does the speaker come with mounting hardware?
A-4 Yes. A heavy-duty U-bracket is included for secure wall or pole mounting.

Q5. Can it be used in coastal or high-humidity areas?
A-5 Yes. It features corrosion-resistant materials and exceeds environmental durability standards.

Specifications

Frequency Range (-10 dB)	80 Hz – 20 kHz
Frequency Response (±3 dB)	100 Hz – 20 kHz
Coverage Pattern	120° × 120°
Directivity Factor (Q)	8.1 (1 kHz – 16 kHz)
Directivity Index (DI)	8.4 dB (1 kHz – 16 kHz)
System Power Rating	250 W (2 hrs) / 200 W (100 hrs)
Sensitivity (2.83V @ 1 m)	94 dB (Average 100 Hz – 20 kHz)
Maximum SPL (1 m)	Direct 8Ω: 118 dB (124 dB peak) / 200 W Tap: 117 dB
Crossover Network	1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance	8 ohms
Transformer Taps	70V: 200 W, 100 W, 50 W, 25 W100V: 200 W, 100 W, 50 W
LF Driver	Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil
HF Driver	25 mm (1 in) diaphragm and voice coil, high-temperature polymer, fluid-cooled, patented design
HF Protection	Minimum audibility Sonic Guard HF overload protection
Enclosure	Heavy-duty ABS with glass reinforcement
Attachment	Two M10 (fine-thread) points for included U-bracket; M6 secondary safety attachment point on back panel
Grille	Corrosion-resistant zinc-rich extra-thick powder-coated steel grille; 3-layer assembly with foam and woven poly mesh backing

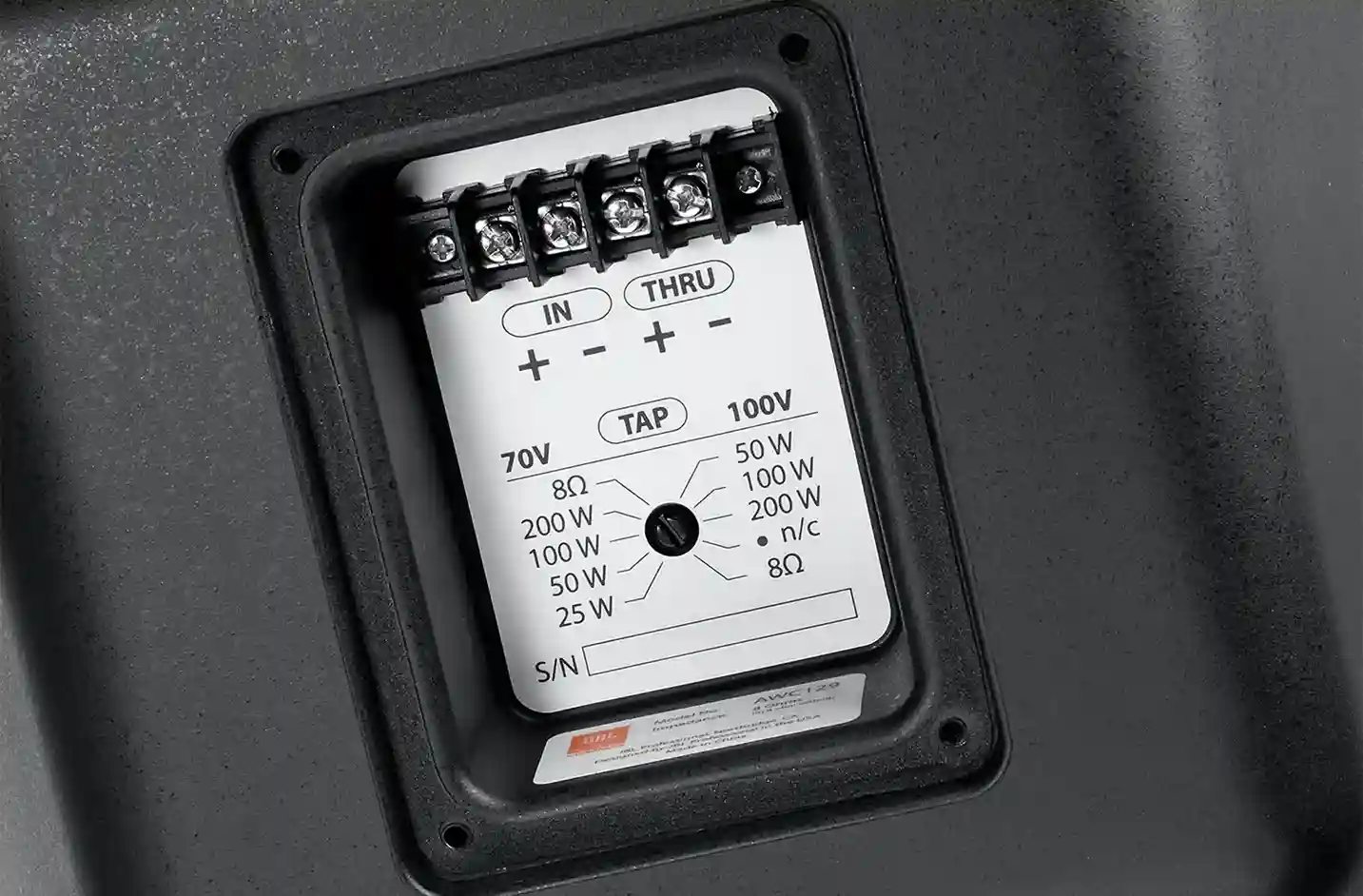

Input Connection	CE-compliant covered barrier strip terminals; accepts open-lugs (#6, #8, #10), bare wire up to 2.5 mm² (12 AWG), spade lugs; water-tight gland nut included
Environmental Rating	IP56 per IEC529, minimum 5° downward tilt recommended; exceeds Mil Spec 810 for humidity, salt spray, temperature & UV; ASTM G85 for acid-air/salt-spray (336 hrs)
Dimensions (H × W × D)	300 × 300 × 305 mm (cabinet), 331 mm including gland nut, 359 mm including bracket
Colors	Gray (Pantone 420C) and Black (-BK)
