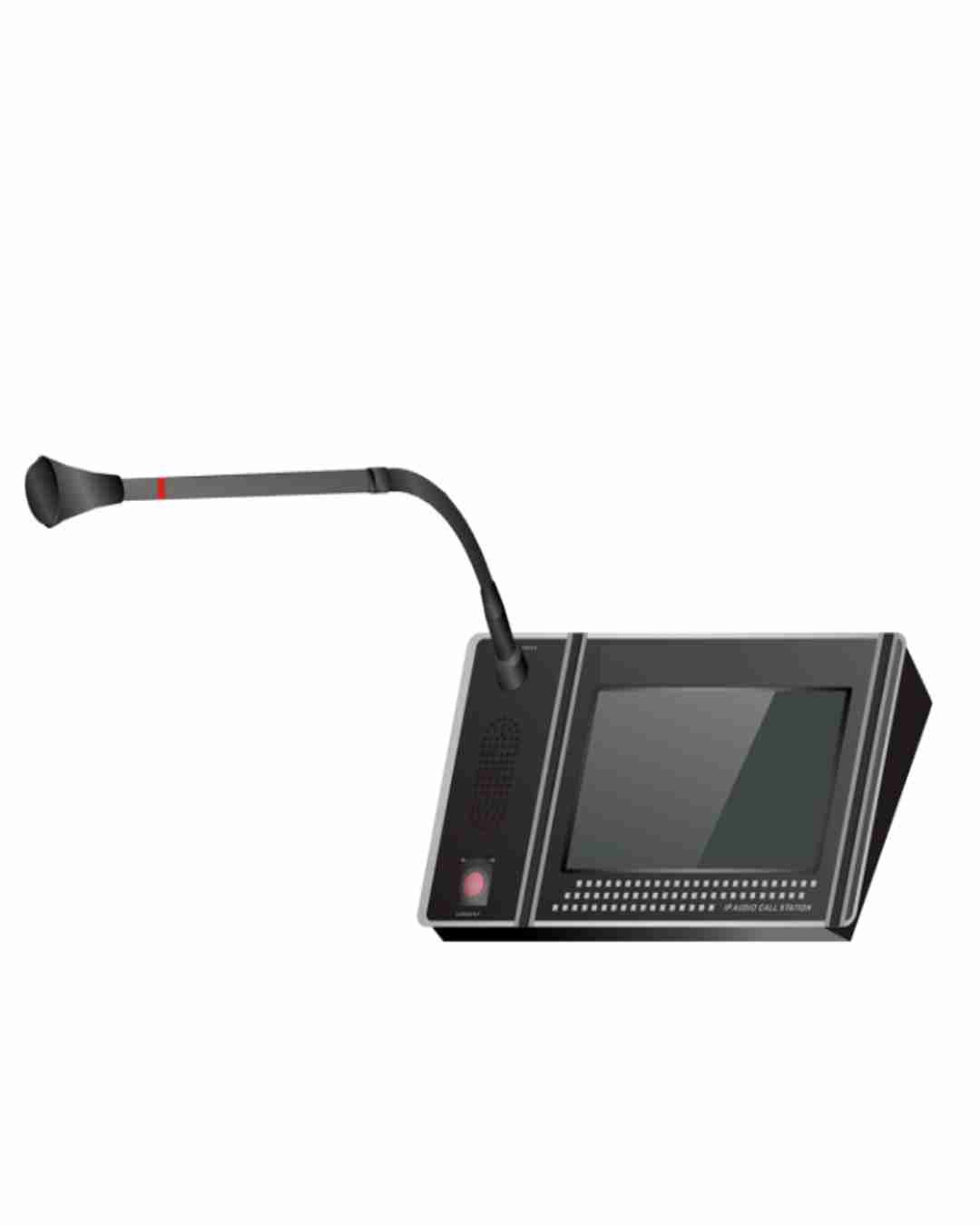

CMX-DI-9700TM IP network paging microphone
• 7” Touch Screen LCD for simple and fast zone selection
• IP-based paging microphone for LAN network PA systems
• Supports single zone, group zone & all zone announcements
• Two-way intercom communication support
• High-quality digital audio (MP3 / MP2 formats)
• Built-in 5W monitor speaker for live audio monitoring
• USB input for pre-recorded message playback
• Stable network transmission (TCP/IP, UDP, IGMP, ARP)
• Clear sound with low distortion (<0.3% THD)
• Compact desktop design with low power consumption
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
CMX DI-9700TM IP Network Paging Microphone with 7 Touch Screen
The CMX DI-9700TM IP Network Remote Paging Microphone is a professional IP-based paging console designed for modern IP public address Built with a 7-inch touch screen LCD, this advanced paging microphone allows seamless zone control, group announcements, and two-way intercom communication over a LAN network. Designed for commercial and industrial installations across India, the DI-9700TM supports TCP/IP network communication, ensuring stable and real-time audio transmission. With multiple paging modes including single zone, group zone, all zone, and two-way intercom, it is ideal for schools, corporate offices, hospitals, factories, airports, metro stations, and large commercial buildings. The built-in 5W monitor speaker ensures clear audio monitoring, while USB support allows playback of pre-recorded announcements. Its compact desktop design, low power consumption, and user-friendly interface make it a reliable solution for professional network audio systems
Ideal For
• School & college IP PA systems
• Corporate offices & IT parks
• Hospitals & healthcare facilities
• Airports & railway stations
• Industrial factories & warehouses
• Smart buildings & commercial complexes
Frequently Asked Questions
1. Is this microphone compatible with all PA systems?
A-1 No, it is designed specifically for IP network-based PA systems.
2. Can I make announcements to selected zones only?
A-2 Yes, you can select single zone, multiple zones, group zones, or all zones.
3. Does it support two-way communication?
A-3 Yes, it supports two-way intercom functionality.
4. Can I play pre-recorded messages?
A-4 Yes, it has a USB port for playback of recorded announcements.
5. Is it suitable for large commercial buildings?
A-5 Yes, it is ideal for large installations like malls, hospitals, schools, and factories.
Specification
| Model | DI-9700TM |
| Description | IP Network Remote Paging Microphone with Touch Screen |
| Communication Protocol | TCP/IP, UDP, IGMP, ARP |
| Audio Format | MP3 / MP2 |
| Sampling Rate | 8 kHz – 48 kHz |
| Transmission Speed | 10 M / 100 MBPS |
| Frequency Response | 20 Hz – 16 kHz (+1 dB, −3 dB) |
| Total Harmonic Distortion (THD) | < 0.3 % |
| Signal-to-Noise Ratio (S/N) | > 70 dB |
| Built-in Speaker | 5 W full-range monitor speaker for clear communication |
| Display | 7″ Touch Screen LCD |
| Paging Modes | Single zone, multiple zone, group zone, all zone, two-way intercom |
| USB Input | Yes – for pre-recorded message playback |
| Line Input / Output | Line input and line output |
| Monitor Output | 3.5 mm audio monitor out |
| Control I/O | Control input and two control outputs |
| Working Temperature | −5 °C to +40 °C |
| Operating Humidity | 10 % – 90 % |
| Power Consumption | ≤ 10 W |
| Power Supply | 12 V DC |
| Dimensions (L × W × H) | Approx. 250 × 163 × 42 mm |
| Weight | Approx. 2.2 kg |
