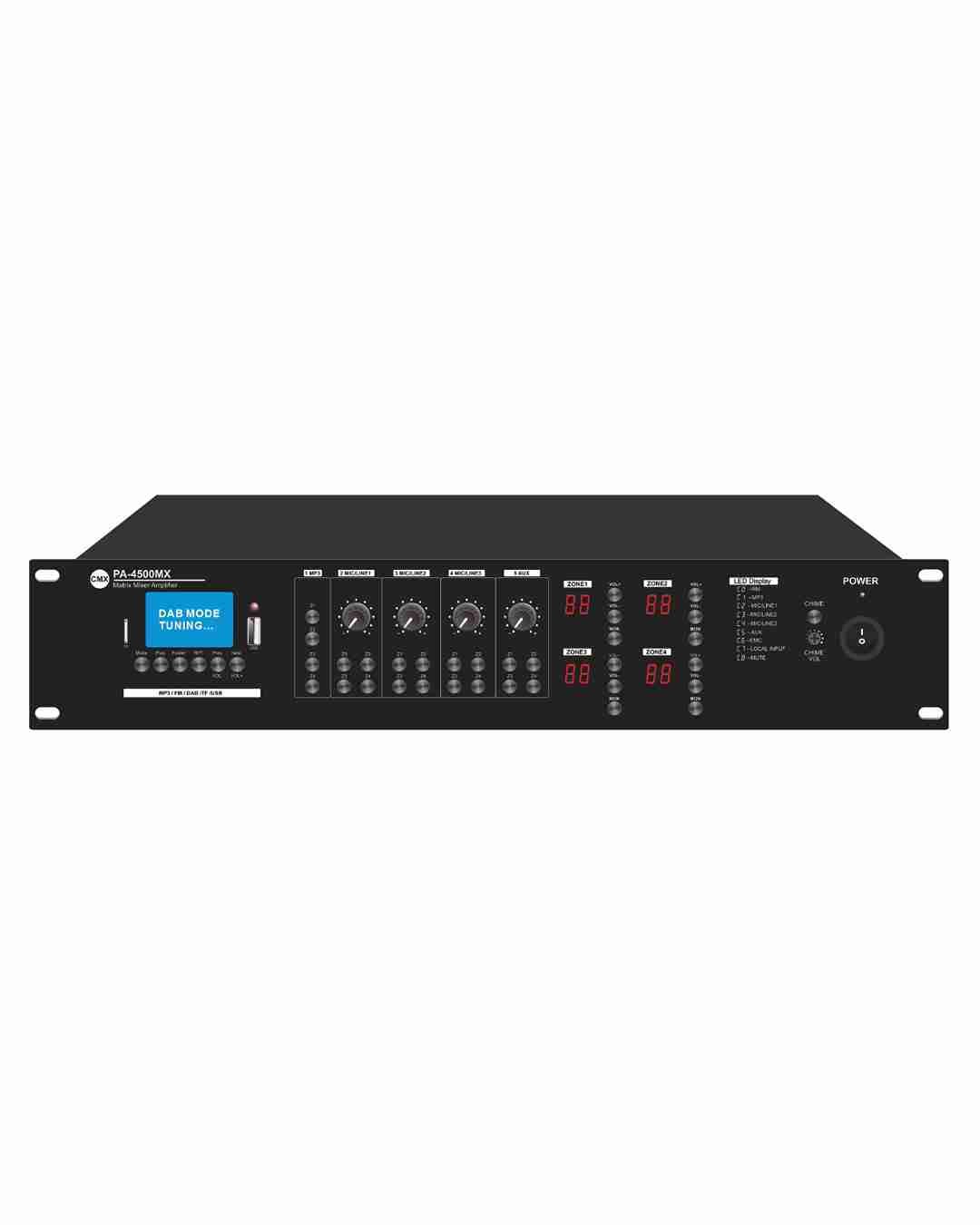

CMX-PA-4500MX 4 Zone Mixer Amplifier

Name: CMX-PA-4500MX 4 Zone Mixer Amplifier
SKU: 16480
Availability: InStock

₹80,443 Price excluding tax

5 products sold in last 17 hours

Selling fast! Over 3 people have in their cart

4 Independent Zones – Control volume separately in 4 different areas
High Power Output (Up to 4 × 500W) – Suitable for large installations
100V / 70V Line & 8–16Ω Support – Flexible speaker compatibility
Built-in Bluetooth, USB, SD & FM – Multiple music playback options
3 Mic Inputs with Priority – Clear announcements over music

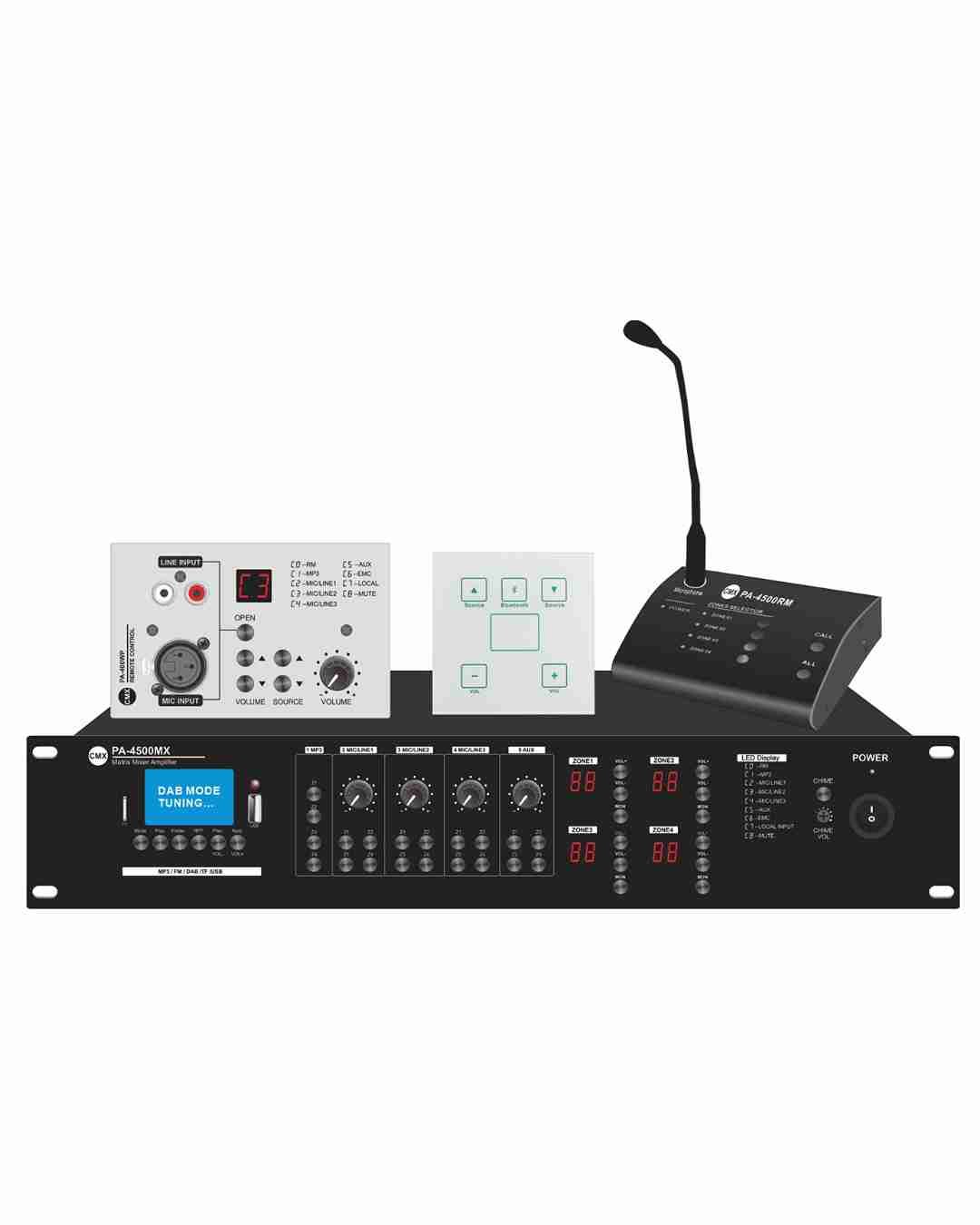

Remote Paging Support – Connect up to 8 remote microphones
Rack Mount 2U Design – Easy installation in audio racks
Advanced Protection Circuit – Short circuit, overload & overheat protection

28 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

The CMX PA-4500MX 4 Zone Mixer Amplifier is a powerful and professional 4 zone PA amplifier designed for large commercial and institutional sound systems across India. With independent volume control for four zones and support for 100V / 70V line & 8–16Ω speakers, it allows you to manage audio in multiple areas from a single rack-mounted unit. Built with USB, SD, FM radio, and Bluetooth, this amplifier offers flexible music playback options. It also includes 3 Mic/Line inputs, priority control for emergency announcements, and remote microphone connectivity via CAT6. The 2U rack-mount design with built-in cooling fan ensures reliable performance for continuous operation in schools, offices, malls, factories, and public buildings.

Frequently Asked Questions

1. Can I control 4 different areas separately?
A-1 Yes, it has 4 independent zones with separate volume controls.

2. Does it support 100V line speakers?
A-2 Yes, it supports 100V / 70V line as well as 8–16Ω speakers.

3. Can I connect Bluetooth devices?
A-3 Yes, built-in Bluetooth allows wireless music streaming.

4. Is it suitable for large buildings?
A-4 Yes, with high power output and multi-zone control, it is ideal for commercial installations.

5. Does it support emergency paging?
A-5 Yes, it includes priority control and remote microphone support for paging.

Specification

Model	PA-4500MX
Description	4 Zone Mixer Amplifier with USB/SD/FM/Bluetooth
Rated Power Output	Up to 4 × 500 W (total varies by configuration)
Speaker Outputs	100 V / 70 V & 8–16 Ω simultaneously supported
Independent Zones	4 Zones with separate volume control
Mic Inputs	3 Mic/Line inputs (combo XLR/line; some with +48 V phantom power)
Auxiliary Input	1 Aux input (RCA)
Built-in Media Sources	USB / SD MP3 Playback, FM Tuner, Bluetooth Connectivity
Priority Control	Priority levels for Mute, EMC, Mic1 & Remote Paging Mic
Remote Connectivity	Supports up to 8 remote microphones via CAT6; remote control panels supported
Protection Features	Short circuit, clipping, overload & high-temperature protection
Frequency Response	Approx. 20 Hz – 20 kHz (typical)
Signal-to-Noise Ratio (S/N)	> 80 dB (typical)
Total Harmonic Distortion	≤ 0.5 % (typical)
Form Factor	Rack-mountable 2U design
Cooling	Built-in fan cooling system
Power Supply	AC 230 V, 50–60 Hz
Protection & Controls	EMC priority input, remote mute, and zone attenuation
Dimensions / Weight	Varies by variant (standard 19″ rack mount chassis)
