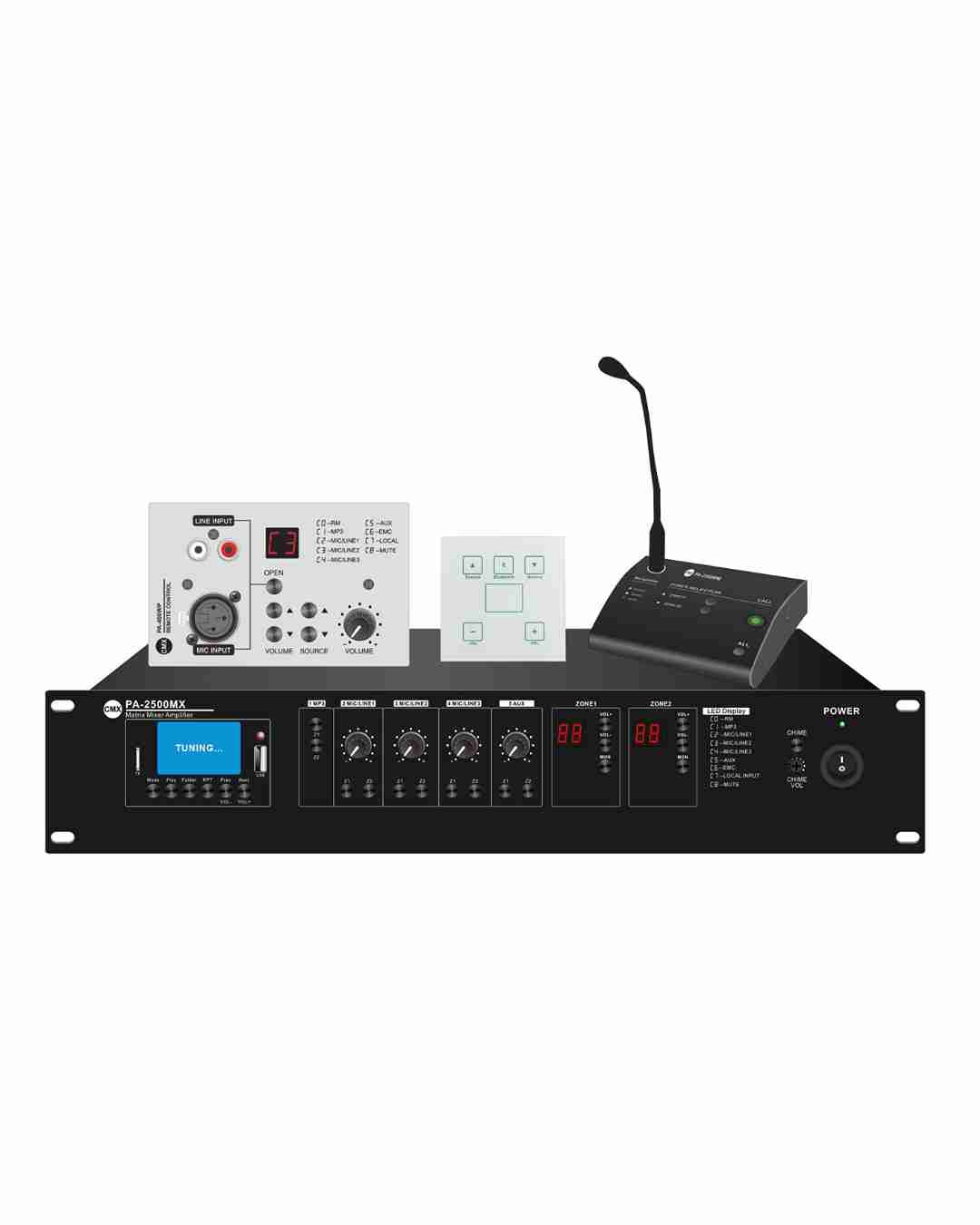

CMX-PA-2120MX Mixer Amplifier

Name: CMX-PA-2120MX Mixer Amplifier
SKU: 16545
Availability: InStock

₹35,509.10 Price excluding tax

14 products sold in last 9 hours

Selling fast! Over 15 people have in their cart

Dual Zone Audio Control – Manage two different areas with independent sound control.
Powerful 2×120W Output – Delivers strong and clear sound for large commercial spaces.
Bluetooth Connectivity – Stream music wirelessly from mobile phones and laptops.
USB / SD / FM Media Player – Play MP3 music directly without external devices.
3 Microphone Inputs with Phantom Power – Suitable for announcements, meetings and events.
Emergency Priority Input (EMC) – Supports emergency announcements in public safety systems.

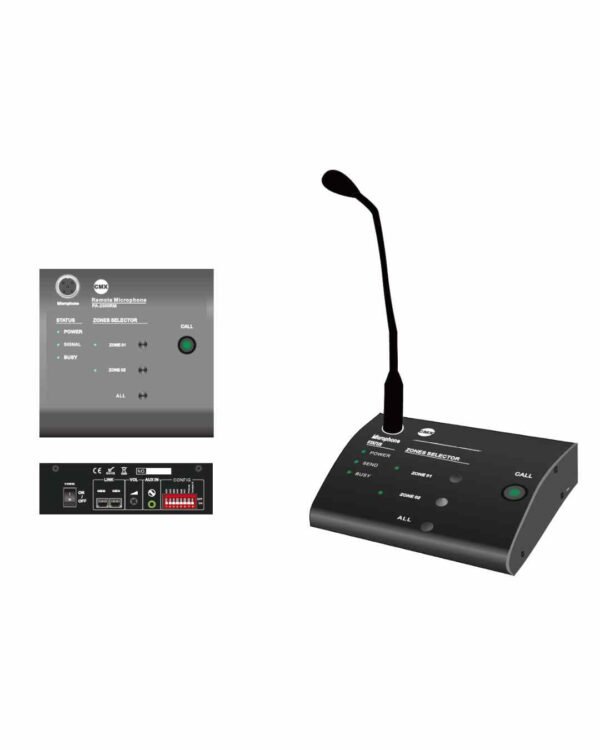

Remote Microphone & Control Support – RJ45 ports for remote paging microphone and control panel.
100V Line & Low Impedance Speaker Support – Works with ceiling speakers, wall speakers and PA speakers.
Clear Audio Performance – Wide frequency response for clear voice announcements and music.

21 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

The CMX PA-2120MX Mixer Amplifier is a powerful and versatile 2-zone matrix PA amplifier designed for professional sound distribution in commercial and industrial environments. With 2×120W RMS output, this amplifier allows you to control and manage audio across two separate speaker zones independently. Equipped with Bluetooth, USB, SD card player and FM radio, the amplifier provides multiple music playback options without the need for additional equipment. It supports 100V line speakers and low impedance speakers (8Ω–16Ω), making it suitable for long-distance commercial installations. The CMX PA-2120MX is ideal for schools, offices, factories, temples, hotels, shopping malls, hospitals and public buildings where reliable announcements, background music and paging systems are required. Built with a durable rack-mount metal chassis and advanced protection circuits, this amplifier ensures stable performance for continuous commercial use across India

Frequently Asked Questions

1. How many speaker zones can this amplifier control?

A-1 The CMX PA-2120MX supports 2 independent speaker zones with separate control.

2. Can I connect ceiling speakers with this amplifier?

A-2 Yes, it supports 100V line ceiling speakers, wall speakers and PA speakers.

3. Does the amplifier support Bluetooth music streaming?

A-3 Yes, it has built-in Bluetooth for wireless music playback.

4. Can multiple microphones be used at the same time?

A-4 Yes, it supports up to 3 microphones simultaneously.

5. Is this amplifier suitable for large commercial buildings?

A-5 Yes, it is designed for schools, offices, factories, malls and other commercial installations.

Specifications

Model	PA-2120MX
Description	2 Zone Matrix Mixer Amplifier with USB / SD / FM / Bluetooth
Rated Power Output	2 × 120 Watts RMS
Speaker Outputs	Two independent zones, 100V Line & 8Ω – 16Ω speakers
Zones	2 Separate Speaker Zones with Individual Control
Mic / Line Inputs	3 × Mic/Line Combo Inputs (Balanced XLR) with +48V Phantom Power
Line Input	1 × RCA Line Input
EMC Input	1 × RCA Emergency Input with Priority
Mute Input	Remote Mute Input for Emergency Systems
Line Output	0.775V (0 dBV)
Input Sensitivity / Impedance	Mic: 5–8mV / 600Ω; Line: 150–470mV / 10kΩ (Unbalanced)
Media Player	Built-in USB, SD Card MP3 Player, FM Radio & Bluetooth
Remote Ports	2 × RJ45 Ports for Remote Microphone & Control Panel
Frequency Response	60 Hz – 15 kHz (±3 dB)
Signal-to-Noise Ratio	Line ≥ 85 dB; Mic ≥ 72 dB
Total Harmonic Distortion (THD)	< 0.5%
Protection	Short Circuit / Overload / Clip / High Temperature Protection
Power Consumption	Approx. 300 W
Power Supply	230V AC, 50–60 Hz
Dimensions	484 × 405 × 88 mm
Weight	Approx. 6.6 kg
