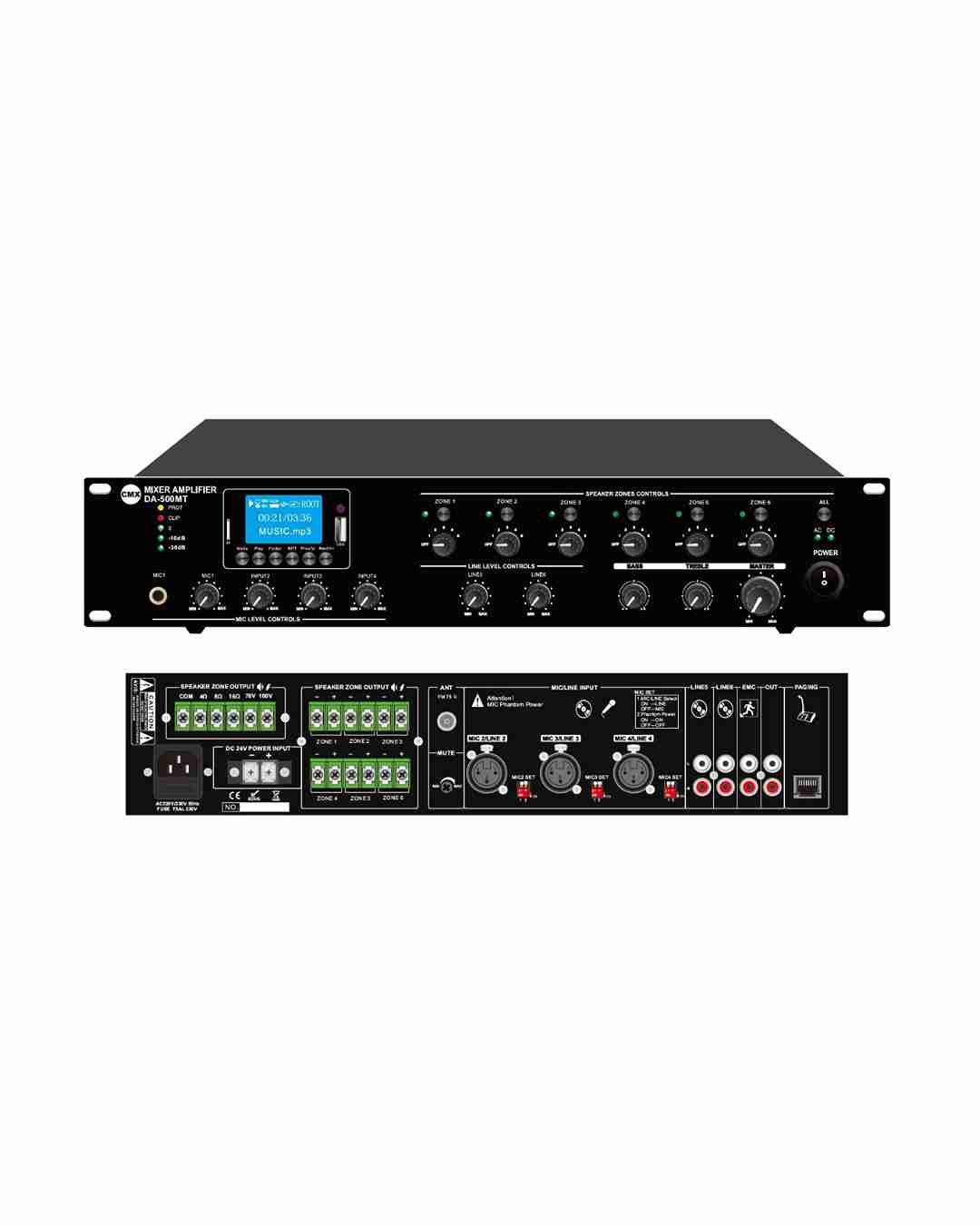

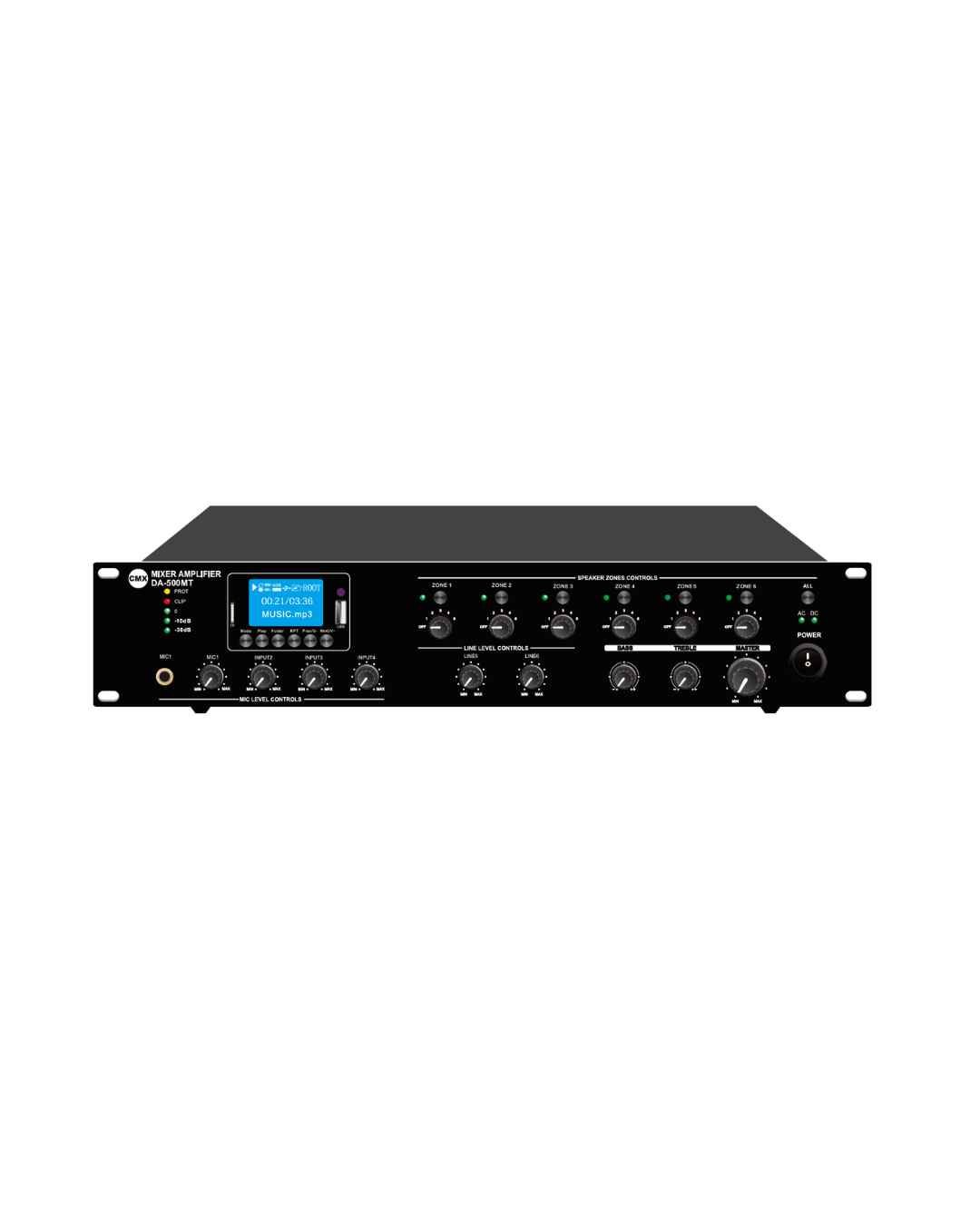

CMX-DA-500MT 6 zone mixer amplifier
• 500W high power PA amplifier for commercial use
• 6 independent audio zones with separate volume control
• 100V / 70V line & 4–16Ω speaker compatibility
• Built-in Bluetooth, USB, SD MP3 player & FM tuner
• Multiple Mic (XLR & 6.3mm) and RCA line inputs
• EMC priority input for emergency announcements
• Low distortion (<0.1% THD) with clear sound output
• Bass & treble tone control for sound adjustment
• Dual power supply – AC 230V & DC 24V backup support
• 19″ Rack mount (2U) professional installation design
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The DA-500MT 6 Zone Mixer Amplifier is a powerful and versatile 500W PA amplifier designed for professional public address systems across India. Built for commercial and institutional use, this 6 zone 100V line amplifier allows independent volume control for six different areas, making it ideal for schools, offices, hospitals, malls, factories, temples, and commercial buildings. With built-in Bluetooth, USB, SD MP3 player, and FM tuner, the DA-500MT eliminates the need for external media devices. It also supports multiple microphone and line inputs, allowing announcements, background music, and paging simultaneously. The dual power supply (AC 230V & DC 24V) ensures uninterrupted performance, even during power backup operation. This rack-mountable 6 zone mixer PA amplifier delivers clear sound, stable output, and advanced protection features, making it a reliable choice for long-term professional installations.
Frequently Asked Questions
1. Can this amplifier run ceiling speakers in multiple rooms?
A-1 Yes, it supports 6 independent 100V zones, perfect for multiple rooms or floors.
2. Does it have built-in Bluetooth?
A-2 Yes, it comes with built-in Bluetooth, USB, SD MP3 player, and FM tuner.
3. Can I use it during a power cut?
A-3 Yes, it supports DC 24V backup power supply for uninterrupted operation.
4. Is it suitable for school announcements?
A-4 Absolutely. It is ideal for school PA systems with mic priority and clear voice output.
5. What type of speakers are compatible?
A-5 It supports 100V line speakers, 70V line speakers, and 4-16 ohm speakers.
Specification
| Model | DA-500MT |
| Description | 6 Zone Mixer PA Amplifier with MP3 / USB / FM / Bluetooth |
| Rated Power Output | 500 W RMS |
| Speaker Outputs | 6 Zone 100 V Line (Independent Volume Control) |
| Single Zone Output | 100 V / 70 V / 4–16 Ω |
| Mic Inputs | Mic1 (6.3 mm Jack), Mic/Line 2–4 (Balanced XLR) |
| Line Inputs | Line 1–2 (RCA) |
| EMC Input | RCA (Highest Priority) |
| Built-in Sources | USB / SD MP3 Player, FM Tuner, Bluetooth |
| Frequency Response | 80 Hz – 16 kHz |
| THD | < 0.1 % |
| Signal-to-Noise Ratio | > 70 dB |
| Tone Controls | Bass & Treble |
| Zone Controls | Master Volume + 6 Independent Zone Controls |
| Protection | Overload, Short Circuit, Clip & High Temperature Protection |
| Power Supply | AC 230 V / DC 24 V (Dual Operation) |
| Power Consumption | Approx. 650 W |
| Mounting Type | 19″ Rack Mount (2U) |
| Dimensions (W×D×H) | Approx. 418 × 318 × 88 mm |
| Net Weight | Approx. 14.5 kg |
