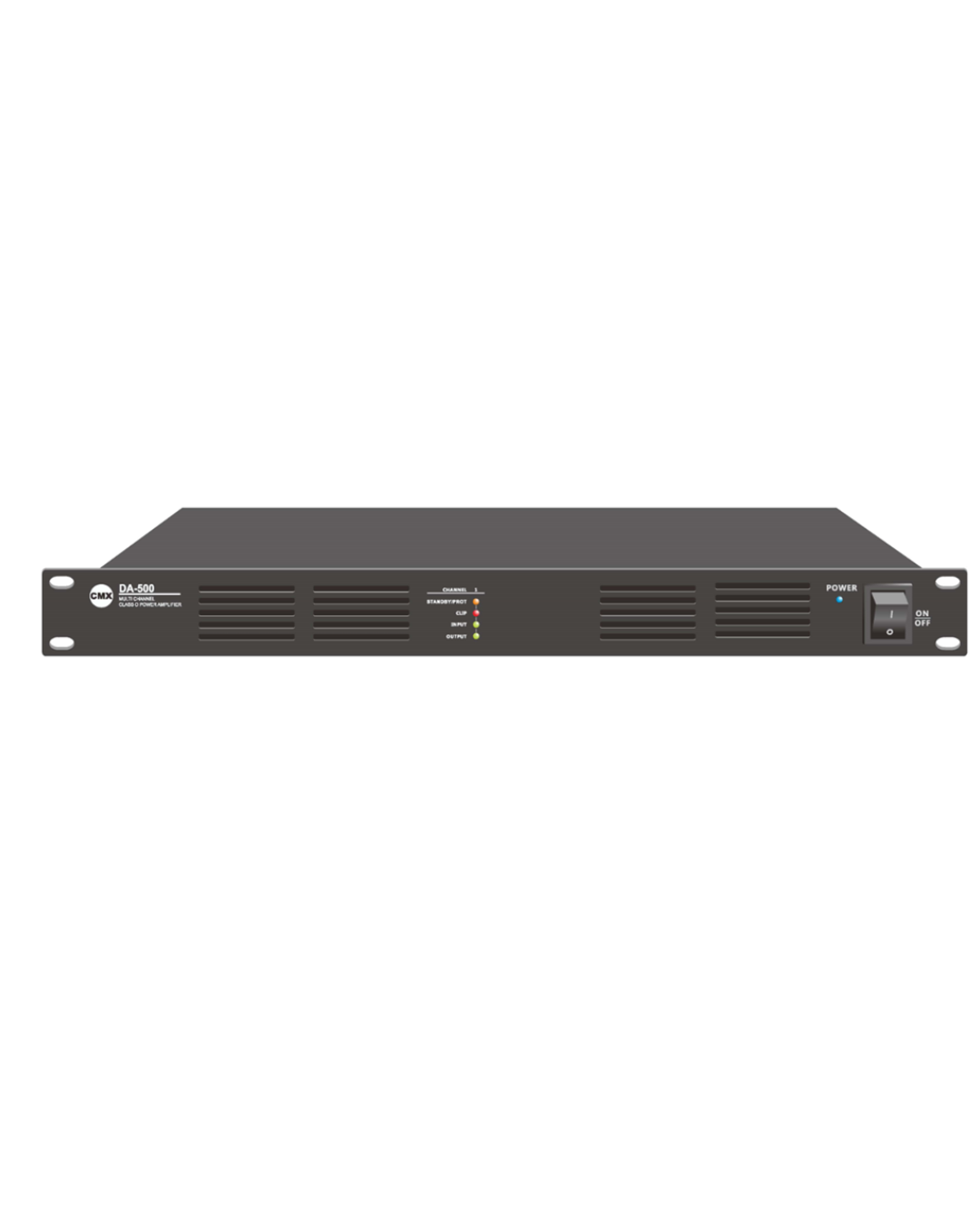

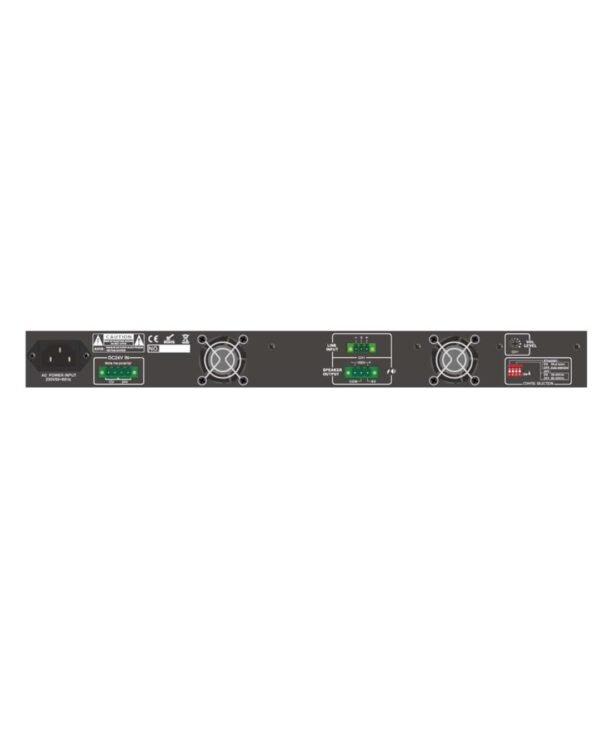

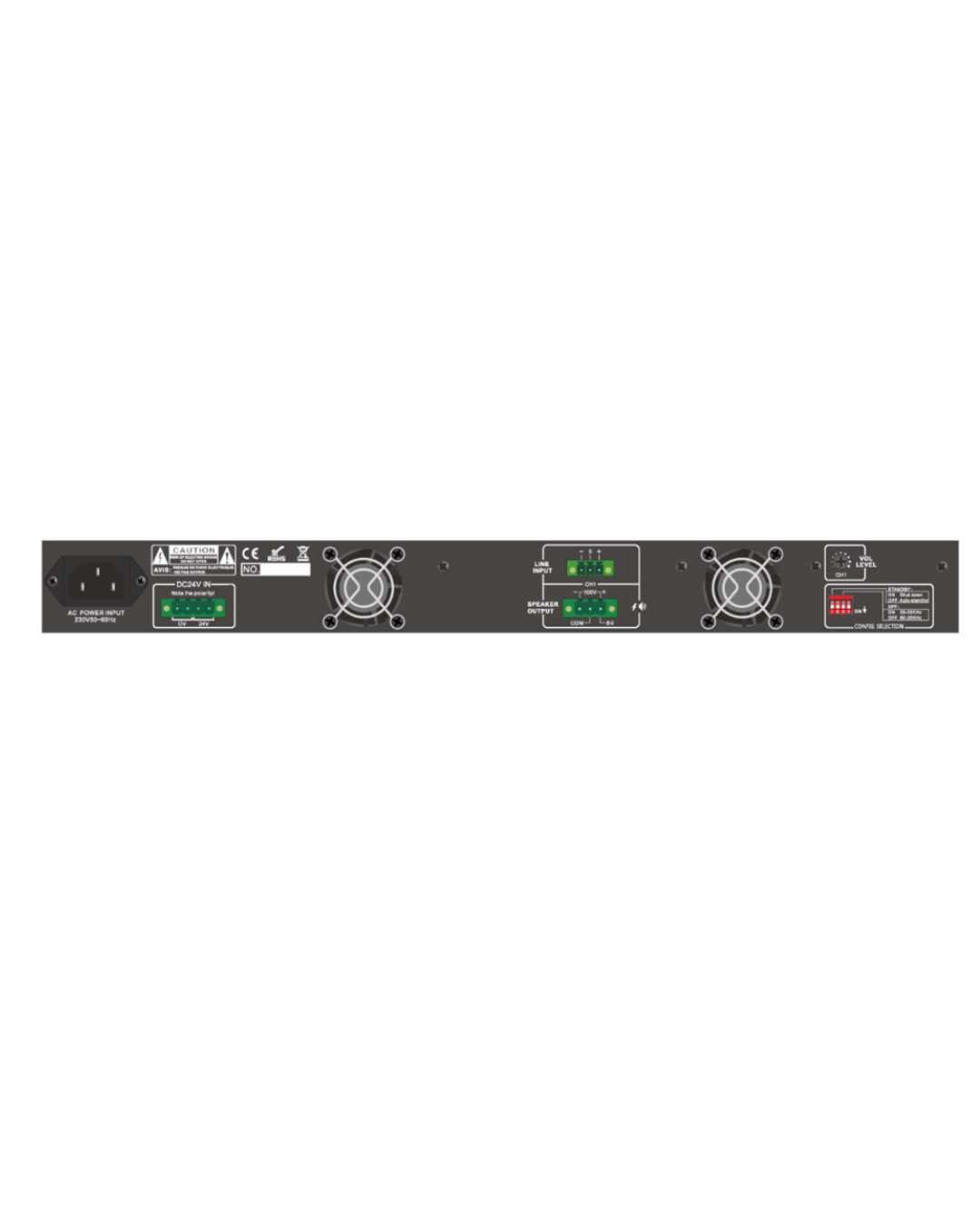

CMX-DA-500 Power Amplifier

Name: CMX-DA-500 Power Amplifier
SKU: 16524
Availability: InStock

₹36,829.10 Price excluding tax

19 products sold in last 1 hour

Selling fast! Over 20 people have in their cart

High Power 500W RMS Output – Delivers powerful and clear sound for auditoriums, schools, temples, malls, factories, and large commercial spaces.
Dual Output Support (8Ω & 100V Line) – Compatible with both low impedance speakers and 100V line PA speaker systems.
Class D Technology – Energy-efficient design with low heat generation and reliable performance.
Selectable High-Cut Filter – Allows sound adjustment based on speaker type and installation needs.
24V DC Backup Support – Suitable for battery backup systems and emergency PA applications.
Advanced Protection Circuit – Built-in short circuit, overload, high temperature, clip, and DC protection for long-term safety.
LED Status Indicators – Easy monitoring with Power, Clip, Protection, Input, and Output indicators.
Built-in Cooling Fan – Ensures stable performance during long hours of operation.
1U Rack Mount Design – Standard 19” rack compatible for professional installations

26 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

The CMX-DA-500 Class D Power Amplifier is a high-performance 500W RMS commercial power amplifier designed for professional PA and background music systems across India. Built with advanced Class D amplification technology, this amplifier delivers powerful, energy-efficient performance with low heat generation and stable output. Ideal for schools, temples, mosques, churches, shopping malls, hospitals, offices, factories, auditoriums, and large commercial installations, the DA-500 supports both 8 Ohm speakers and 100V line speaker systems, making it perfect for small to large-scale audio setups. With built-in short circuit, overload, clip, DC, and high-temperature protection, this amplifier ensures long-lasting reliability even during continuous operation. The 1U rack-mount design saves installation space, while LED indicators provide clear status monitoring.

Frequently Asked Questions

1. Can this amplifier run 100V line ceiling speakers?
A-1 Yes, the CMX-DA-500 supports 100V line speaker systems, ideal for commercial installations.

2. Can I connect 8 Ohm speakers directly?
A-2 Yes, it has dedicated 8Ω output terminals for low-impedance speakers.

3. Does it support battery backup?
A-3 Yes, it supports 24V DC input for emergency power backup systems.

4. Is this suitable for large halls or auditoriums?
A-4 Yes, with 500W RMS output, it is suitable for medium to large venues.

5. Does it have protection against short circuits?
A-5 Yes, it includes short circuit, overload, high temperature, clip, and DC protection.

Specifications

Model	DA-500
Description	500W Class D Power Amplifier
Rated Power Output	500 W RMS
Speaker Outputs	8 Ω & 100 V Line
Frequency Response	L/H Cut OFF: 20 Hz – 20 kHz (+1/-2 dB); L/H Cut ON: 70 Hz – 10 kHz (+1/-3 dB)
Input	0.775 V, 0 dBU Balanced (Phoenix Connector)
Input Impedance	Approx. 10 kΩ
THD (Total Harmonic Distortion)	< 0.1 % (1 kHz / –3 dBV, 100 W)
Signal-to-Noise Ratio	> 80 dB
Crosstalk	> 60 dB
Power Consumption	Approx. 550 W
Power Supply	AC Switchable 115 V & 230 V, 50-60 Hz; 24 V DC Input Included
Protection Features	Short Circuit, Overload, High Temperature, Clip & DC Protection
High-Cut Filter	On/Off Selectable
Auto Standby	Yes (Saves Power When No Input Signal Detected)
Indicators	Power, Protection, Clip, Input & Output LEDs
Form Factor	1U Rack-Mountable (19″ Standard Rack)
Dimensions (Approx.)	482 × 420 × 44 mm
Weight (Approx.)	Approx. 5.5 kg
