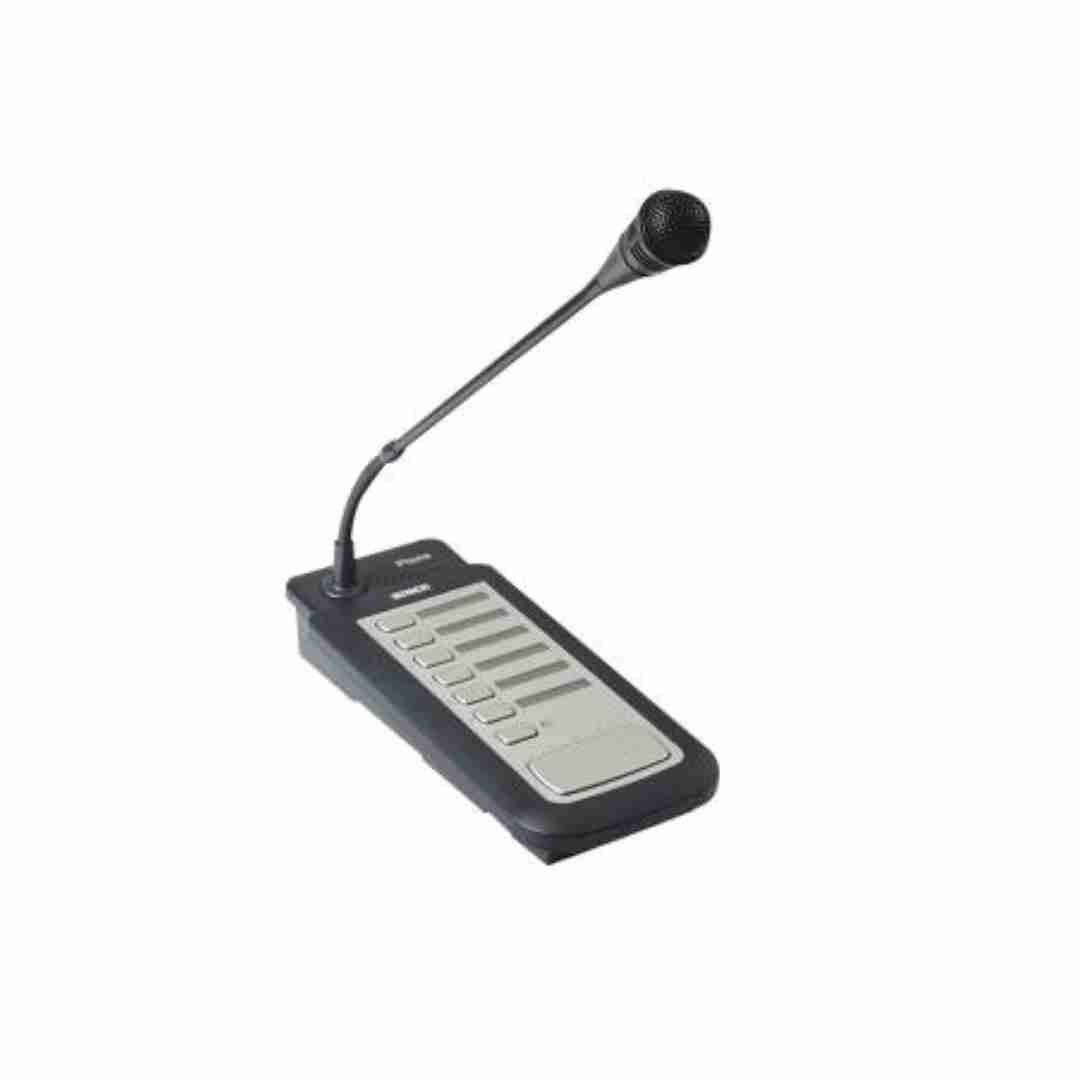

Bosch PLN-6CS Call Station
- 6-Zone paging call station for Bosch Plena public address systems
• Clear and loud condenser microphone for professional announcements
• Individual zone selection buttons for targeted paging
• Built-in attention chime (1-tone / 2-tone / 4-tone) for alerts
• Priority paging for emergency and evacuation announcements
• Single RJ45 Cat-5 cable for power, audio & control (easy installation)
• Supports long cable runs up to 600 meters
• Speech filter reduces background noise for better voice clarity
• Table-top design ideal for reception, security & control rooms
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The Bosch PLN-6CS Call Station is a professional paging microphone designed for Bosch Plena public address systems. It allows users to make clear and controlled announcements to six individual zones or all zones at once, making it ideal for schools, hospitals, offices, malls, factories, hotels, and auditoriums across India. This desk-mounted call station features a press-to-talk microphone, zone selection buttons with LED indicators, and selectable attention chimes to alert listeners before announcements. Powered directly from the connected amplifier via RJ45 Cat-5 cable, ensures simple installation, reliable operation, and professional voice clarity without the need for an external power supply.
1. What is the Bosch PLN-6CS used for?
A-1 It is used to make paging announcements in multi-zone PA systems, allowing control over which areas receive the announcement.
2. How many zones can this call station control?
A-2 The PLN-6CS supports six individual zones plus an all-call function.
3. Does it require a separate power supply?
A-3 No. It receives 24 V DC power directly from the connected Bosch Plena amplifier.
4. Is this compatible with Bosch PLN-6AI0240?
A-4 Yes. It is fully compatible with Bosch Plena All-in-One amplifiers, including PLN-6AI0240.
5. Where is this call station commonly used?
A-5 It is widely used in schools, hospitals, offices, shopping malls, factories, hotels, auditoriums, and religious institutions.
Specifications
| Product Type | 6-Zone Call Station for Bosch Plena PA Systems |
| Power Supply | 24 V DC (supplied by connected Plena amplifier) |
| Current Consumption | < 50 mA |
| Microphone Type | Condenser paging microphone |
| Nominal Acoustic Sensitivity | 85 dB SPL @ 1 kHz (gain pre set 0 dB) |
| Maximum Input Sound Level | 110 dB SPL |
| Nominal Output Level | ~1 V |
| Distortion (THD) | < 2 % (maximum input) |
| Frequency Response | 100 Hz – 14 kHz (±6 dB) |
| Speech Filter | High-pass filter –3 dB @ 315 Hz, 6 dB/oct |
| Output Impedance | 200 Ω |
| Zone Selection | 6 zones + All-Call |
| Attention Chime | Selectable 1-, 2- or 4-tone chime |
| Connectivity | 2 × RJ45 Cat-5 (loop-through up to 600 m) |
| Mounting Type | Table top (optional flush mount) |
| Dimensions (H × W × D) | 55 × 108 × 240 mm |
| Weight | Approx. 0.5 kg |
| Operating Temperature | –10 °C to +45 °C |
| Storage Temperature | –40 °C to +70 °C |
| Relative Humidity | < 95 % non-condensing |
| Compatible Systems | Bosch Plena All-in-One Amplifiers (e.g., PLN-6AI0240) |
