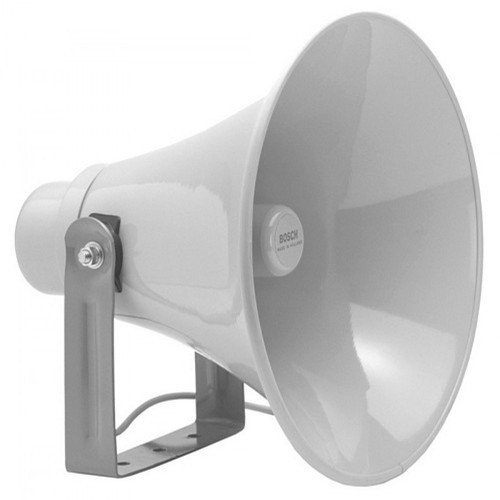

Bosch LH1-CC15-INHorn loudspeaker
- High-power 15W horn loudspeaker designed for public address announcements
- Delivers loud and clear speech even in noisy and open environments
- 100V line compatible with built-in matching transformer
- Multiple power tap options (15W / 7.5W / 3.75W) for flexible PA system design
- Weather-resistant ABS enclosure suitable for outdoor installations
- IP66 rated protection against rain, dust, and harsh environmental conditions
- Focused 84° sound coverage for controlled and long-distance audio projection
- Rugged circular horn design ensures durability and long service life
- Adjustable mounting bracket included for easy wall or pole installation
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The Bosch LH1-CC15-IN is a powerful and reliable 15-watt horn loudspeaker engineered for public address and emergency announcement systems in both indoor and outdoor environments. Designed with a rugged ABS circular enclosure and IP66 weather protection, this speaker delivers clear, focused speech even in high-noise and open-area locations. With a built-in 100V line matching transformer and selectable power taps, integrates seamlessly into commercial and industrial PA systems. Its high sound pressure level ensures announcements are audible over long distances, making it ideal for factories, warehouses, parking areas, sports grounds, religious places, schools, railway stations, and public spaces across India.
Q1. Is the Bosch LH1-CC15-IN suitable for outdoor use?
A-1 Yes, it is IP66 rated, making it fully suitable for outdoor installations in rain, dust, and harsh weather.
Q2. Does this speaker support 100V PA systems?
A-2 Yes, it has a built-in 100V line transformer and is designed specifically for PA systems.
Q3. Can the power output be adjusted?
A-3 Yes, it offers selectable power taps at 15W, 7.5W, and 3.75W.
Q4. Is it suitable for music playback?
A-4 Â This speaker is optimized for speech and announcements, not high-fidelity music.
Q5. Where is this speaker commonly used?
A-5 Factories, warehouses, sports grounds, parks, temples, mosques, schools, railways, and industrial areas.
Specifications
| Product Name | Bosch LH1-CC15-IN Horn ABS Circular Loudspeaker |
| Model | LH1-CC15-IN |
| Speaker Type | Circular Horn Loudspeaker |
| Maximum Power | 22.5 W (Peak) |
| Rated Power (PHC) | 15 W |
| Power Tap Options | 15 W / 7.5 W / 3.75 W |
| Sound Pressure Level (SPL) | Approx. 102.3 dB @ 1 W, 1 m |
| Effective Frequency Range (-10 dB) | 500 Hz – 3.5 kHz |
| Coverage Angle (-6 dB) | 84° (H) × 84° (V) @ 1 kHz |
| Rated Input Voltage | 100 V Line |
| Rated Impedance | Approx. 667 Ω |
| Enclosure Material | Weather-resistant ABS plastic |
| IP Protection Rating | IP66 |
| Mounting | Adjustable mounting bracket included |
| Dimensions (H × W × D) | 290 × 280 × 290 mm |
| Weight | Approx. 1.9 kg |
| Operating Temperature | –5 °C to +55 °C |
| Storage Temperature | –40 °C to +70 °C |
| Connection | Built-in 100 V matching transformer with color-coded cable |
| Recommended Applications | Outdoor & indoor PA systems, factories, parks, sports grounds, public areas |
