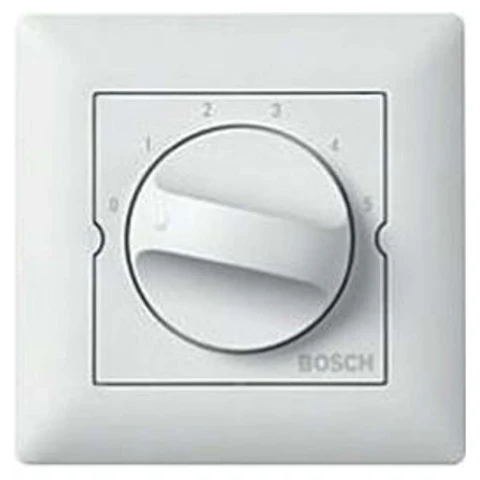

Bosch LBC1410/10 volume control

Name: Bosch LBC1410/10 volume control
SKU: 14994
Availability: InStock

₹5,400 Price excluding tax

18 products sold in last 7 hours

Selling fast! Over 6 people have in their cart

36W rated volume controller for 100V line PA systems
Allows local volume control without affecting the main PA system
Smooth rotary control with 8-step attenuation and OFF position
Built-in 24V DC override relay for emergency announcements
Maintains clear speech and background music quality
Compatible with Bosch and other standard PA amplifiers
Standard MK wall-mount format for easy installation
Low distortion design for consistent audio performance
Durable Bosch build quality for long-term commercial use

21 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

Description
Reviews(0)

The Bosch LBC1410/10 Volume Control is a professional-grade 36W wall-mount volume controller designed for 100V line public address (PA) systems. It allows users to easily adjust the speaker volume in a specific area without disturbing the main amplifier or other zones of the PA system. Built with Bosch’s trusted commercial audio technology, this volume controller delivers smooth rotary volume control, clear sound performance, and long-lasting reliability. The integrated 24V DC override relay ensures that emergency or priority announcements can override local volume settings, making it ideal for safety-critical environments.

Q1. Is Bosch LBC1410/10 suitable for 100V PA systems?
A-1 Yes, it is specifically designed for 100V line public address systems.

Q2. Can it control multiple speakers?
A-2 Yes, as long as the total speaker load does not exceed 36W.

Q3. What is the use of the override relay?
A-3 The override relay allows emergency announcements to bypass the volume control.

Q4. Is this suitable for schools and hospitals?
A-4 Yes, it is ideal for schools, hospitals, offices, malls, and commercial buildings.

Q5. Is installation complicated?
A-5 No, it follows a standard MK wall-mount format, making installation easy.

Specifications

Product Name	Bosch LBC1410/10 Volume Control
Model	LBC1410/10
Rated Power	36 W (max)
Input Voltage	100 V Line
Attenuation Steps	8 x –3 dB + Off (continuous rotation)
Frequency Response	50 Hz – 20 kHz (–1 dB)
Total Harmonic Distortion	< 0.5 %
Current Consumption	~20 mA at 24 VDC
Override Relay	Built-in 24 VDC override relay (power-save version available)
Connection	Screw terminal
Dimensions (W × H × D)	87 × 87 × 45.6 mm
Weight	~227 g
Color	White (RAL 9010)
Operating Temperature	–10 °C to +55 °C
Storage Temperature	–40 °C to +70 °C
Relative Humidity	< 95 %
Installation Type	Standard MK installation format
Typical Applications	Local volume control in PA systems, offices, schools, commercial buildings
