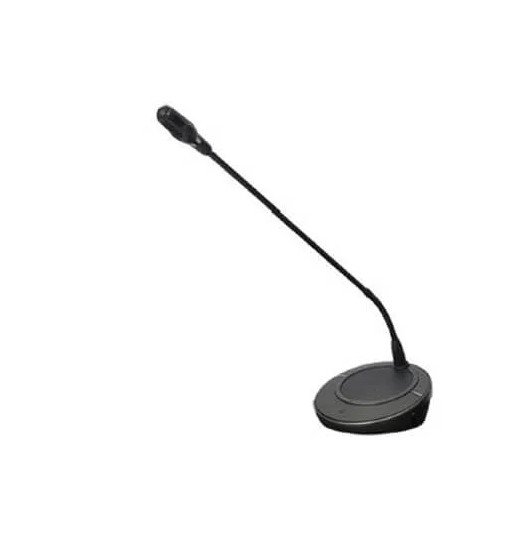

Bosch CCSE-DL delegate microphone
- Professional delegate microphone for Bosch CCS700 conference system
- Flexible gooseneck mic for clear and comfortable speech pickup
- Red LED ring indicates active microphone status
- Easy push-to-talk microphone ON/OFF button
- Built-in loudspeaker with automatic mute during speaking
- Dual 3.5 mm headphone outputs for private listening
- Individual headphone volume control knob
- Loop-through 8-pin connectors for quick system expansion
- Durable table top design for daily professional use
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The Bosch CCSE-DL CCS700 Conference Delegate Unit is a professional table top delegate microphone designed for use with the Bosch CCS700 wired conference discussion system. It allows meeting participants to speak clearly, listen comfortably, and actively engage in discussions with complete control. Built with Bosch’s renowned audio engineering, this delegate unit delivers clear speech reproduction, reliable operation, and an intuitive user experience. The flexible microphone stem with LED light ring clearly indicates when the microphone is active, while the built-in loudspeaker and headphone outputs ensure every participant hears the discussion clearly.
Q1. Is the CCSE-DL compatible with other Bosch conference systems?
A-1 No, it is specifically designed for the Bosch CCS700 wired conference system.
Q2. Can delegates use headphones with this unit?
A-2 Yes, it has two 3.5 mm headphone outputs with individual volume control.
Q3. Does the speaker cause feedback when the mic is on?
A-3 No, the built-in loudspeaker automatically mutes when the microphone is active.
Q4. How is the unit connected to the system?
A-4 It uses 8-pin loop-through connectors, allowing easy daisy-chain installation.
Q5. Is it suitable for long meetings?
A-5 Yes, it is ergonomically designed and built for extended professional
Specifications
| Product Name | Bosch CCSE-DL CCS700 Conference Delegate Unit |
| Model Number | CCSE-DL |
| System Compatibility | Bosch CCS700 Wired Conference System |
| Product Type | Delegate Microphone / Discussion Unit |
| Microphone Type | Flexible stem condenser microphone |
| Microphone Indicator | Red LED light ring (active status) |
| Microphone Control | Push-to-talk ON/OFF button |
| Built-in Loudspeaker | Yes (auto-mutes when microphone is active) |
| Headphone Output | 2 × 3.5 mm stereo sockets (mono wired) |
| Headphone Volume Control | Built-in thumbwheel control |
| Nominal Acoustic Input | Approx. 85 dB SPL |
| Frequency Response | Approx. 400 Hz – 10 kHz |
| Connectivity | 8-pin male + 8-pin female loop-through connectors |
| Cable Length | Approx. 2.7 metres (fixed) |
| Mounting Type | Table top / Desktop |
| Microphone Stem Length | Approx. 488 mm |
| Dimensions (H × W × D) | Approx. 54 × 136 × 138 mm (without microphone) |
| Weight | Approx. 1.2 kg |
| Housing Colour | Charcoal / Black |
| Operating Temperature | –5 °C to +45 °C |
| Storage Temperature | –40 °C to +70 °C |
| Typical Applications | Boardrooms, Council Chambers, Training Rooms, Hotels, Conference Halls |
